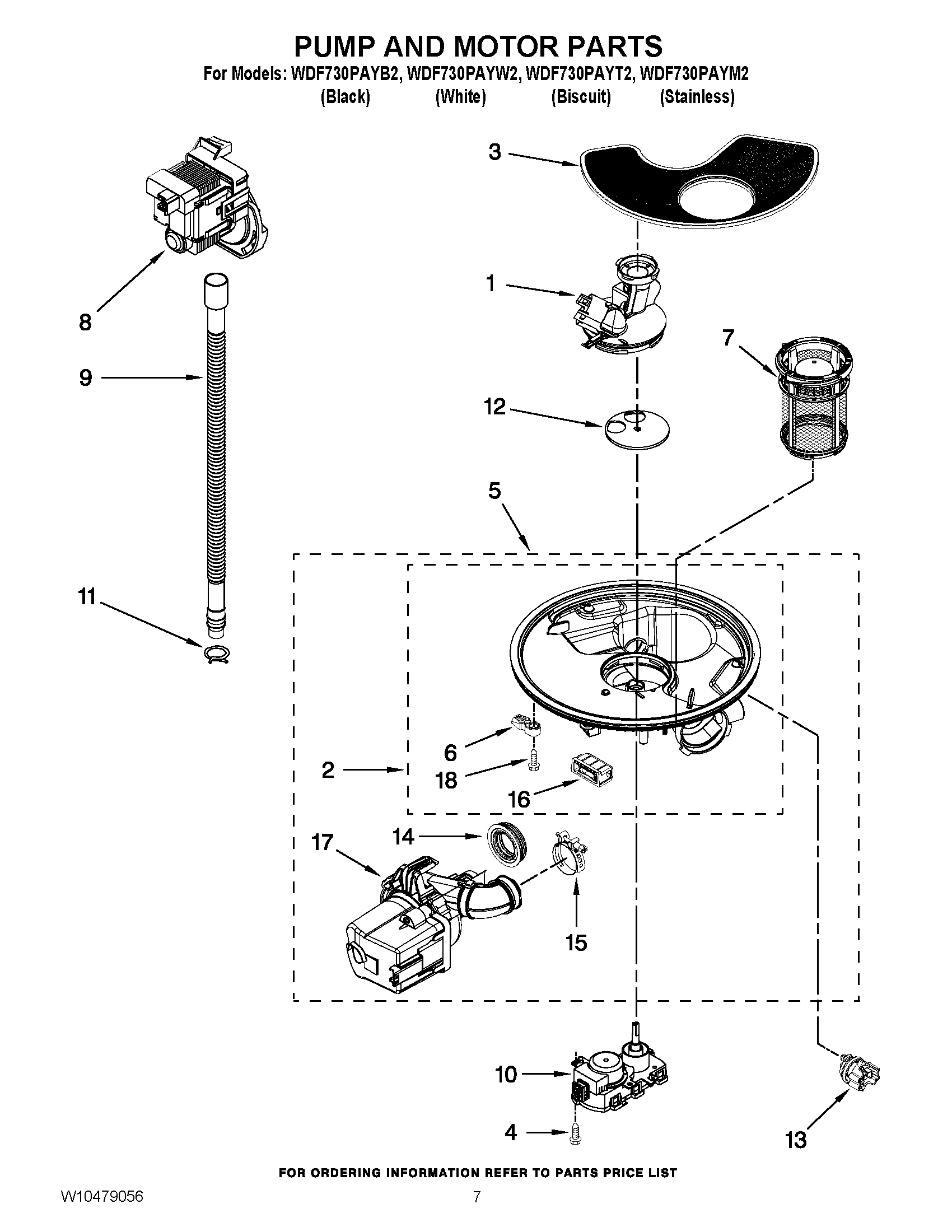

WDF730PAYM2 06 – PUMP AND MOTOR PARTS

WDF730PAYM2 06 – PUMP AND MOTOR PARTS

Written by

in

WDF730PAYM2 06 – PUMP AND MOTOR PARTS

Products

PositionProduct
1W10463895 Whirlpool Dishwasher Cover
2WPW10455268 Whirlpool Sump
3WPW10354786 Whirlpool Dishwasher Screen
4WP9741232 Whirlpool Dishwasher Screw
5WPW10482482 Whirlpool Dishwasher Pump and Motor
6WPW10372113 Whirlpool Dishwasher Sump Tab
7W10872845 Whirlpool Dishwasher Filter Cup Trap
8WPW10348269 Whirlpool Washer Drain Pump
98269144A Whirlpool Dishwasher Drain Hose
10W10537869 Whirlpool Dishwasher Motor
11WP285655 Whirlpool Hose Clamp
12DISC, DIVERTER
13WPW10705575 Whirlpool Dishwasher Sensor
14WPW10538166 Whirlpool Grommet Pump
15WP8269146 Whirlpool Dishwasher Clamp
16W11243394 Whirlpool Dishwasher Support
17W11032770 Whirlpool Dishwasher Circulation Pump & Motor
18WPW10348407 Whirlpool Dishwasher Screw
