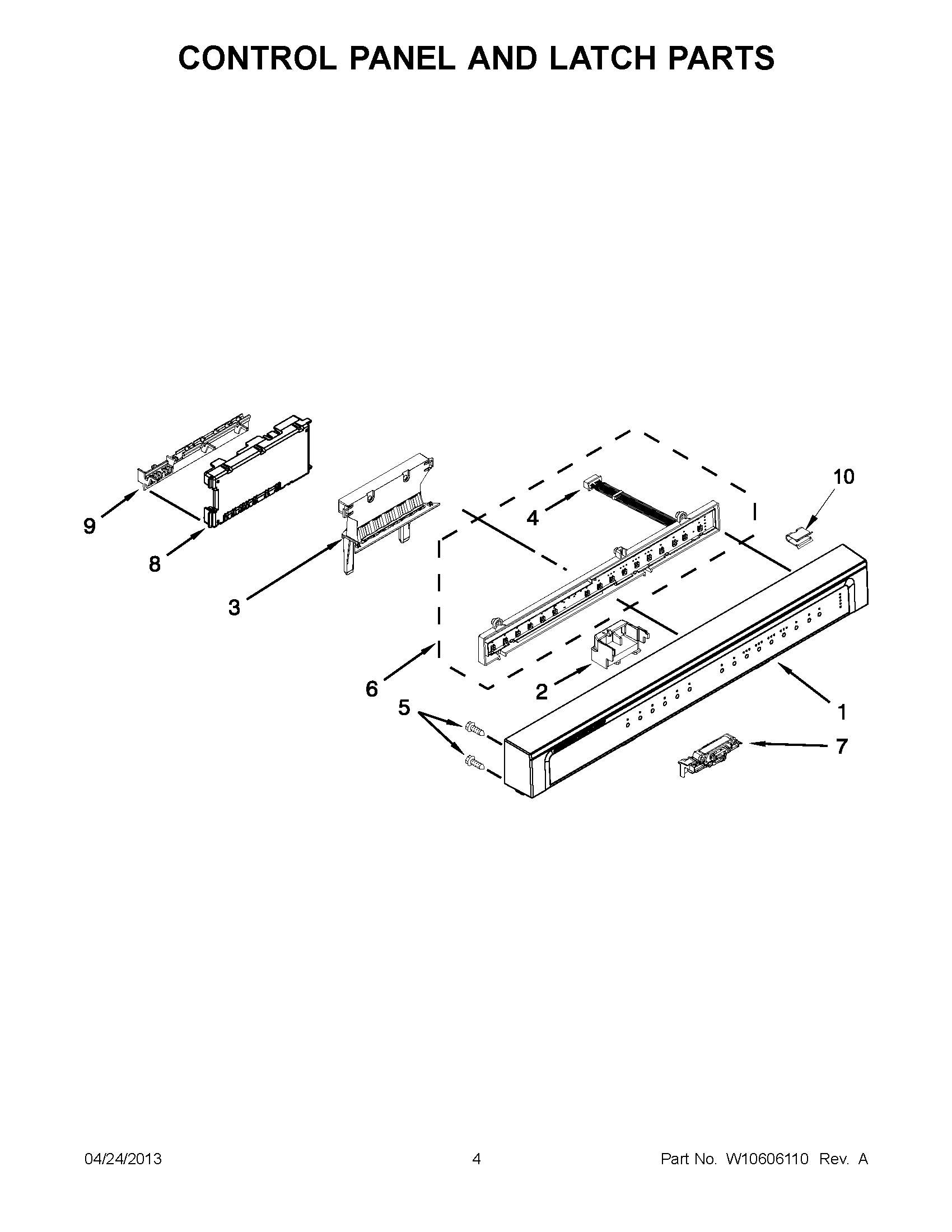

WDF735PABB0 02 – CONTROL PANEL AND LATCH PARTS

WDF735PABB0 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF735PABB0 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10380298 Whirlpool Dishwasher Control Panel
1W10380296 Whirlpool Dishwasher Control Panel
1W10380295 Whirlpool Dishwasher Control Panel
2W10783730 Whirlpool Dishwasher Connector
3W10475758 Whirlpool Handle
4JUMPER, WIRE
5WPW10177098 Whirlpool Dishwasher Screw
6WPW10629164 Whirlpool Dishwasher UI Housing
7W10619006 Whirlpool Door Latch
8CONTROL, ELECTRONIC
9WPW10194937 Whirlpool Dishwasher Control Bracket
10W10815836 Whirlpool Dishwasher Clip
