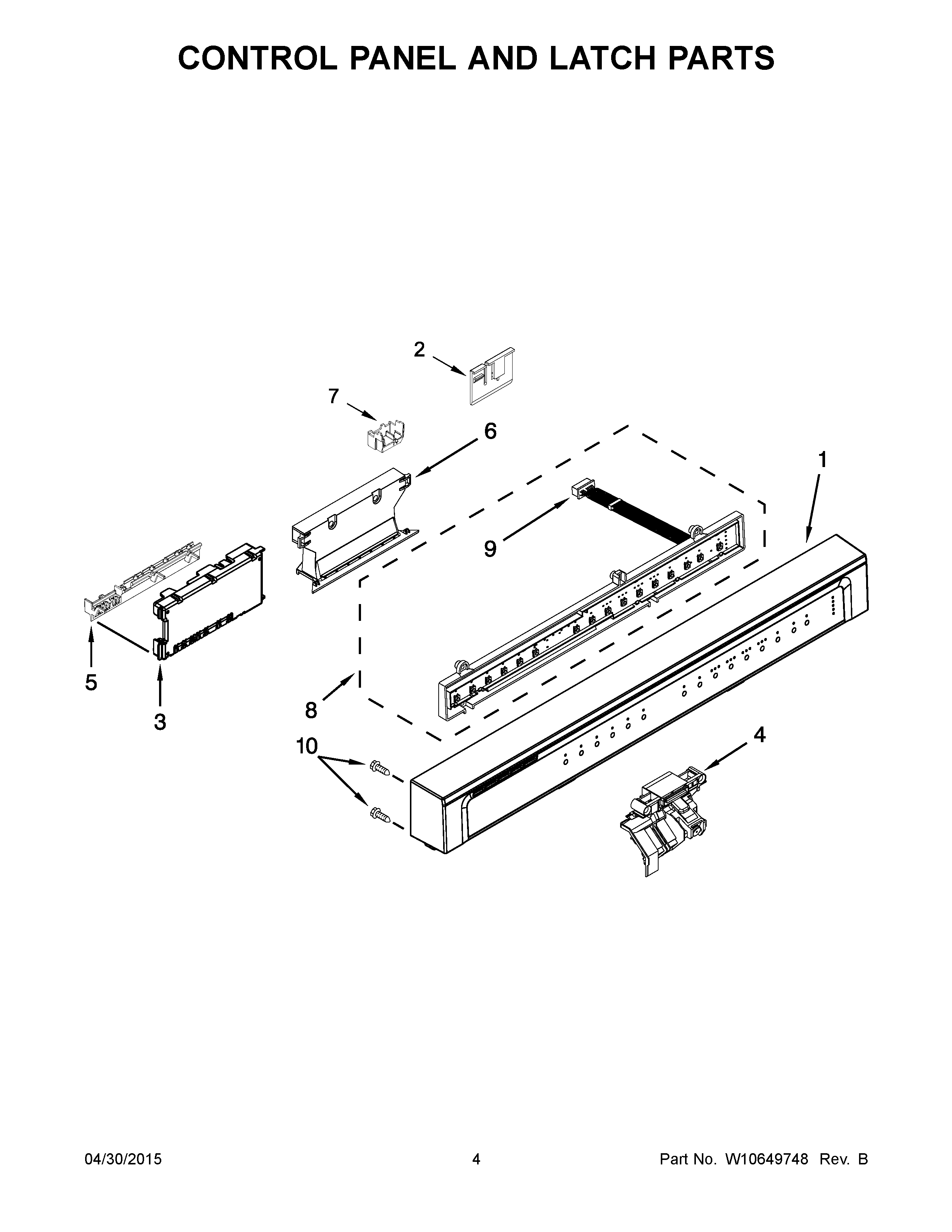

WDF750SAYB3 03 – CONTROL PANEL AND LATCH PARTS

WDF750SAYB3 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF750SAYB3 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1BCONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BISCUIT/BISQUE)
1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BLACK)
1CWPW10350331 Whirlpool Dishwasher Control Panel
1AWPW10350330 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10597042 Whirlpool Dishwasher Electronic Control Board
4WPW10653840 Whirlpool Door Latch
5WPW10194937 Whirlpool Dishwasher Control Bracket
6AHANDLE (WHITE)
6BHANDLE (BISCUIT/BISQUE)
6WPW10321839 Whirlpool Dishwasher Handle
7W10783730 Whirlpool Dishwasher Connector
8WPW10629166 Whirlpool Dishwasher UI Housing
9W10327246 Whirlpool Dishwasher Wire
10WPW10348408 Whirlpool Dishwasher Screw
