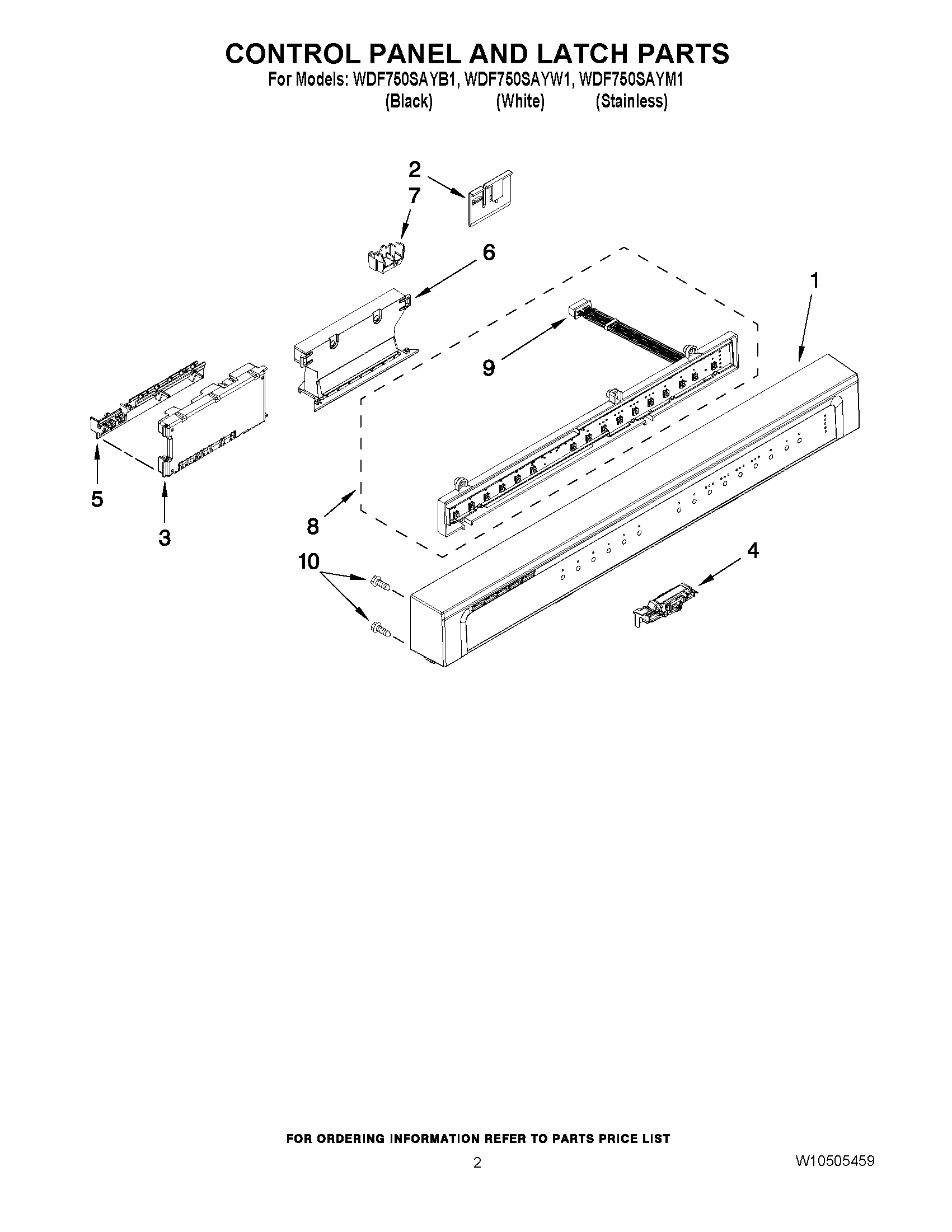

WDF750SAYM1 02 – CONTROL PANEL AND LATCH PARTS

WDF750SAYM1 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF750SAYM1 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10350331 Whirlpool Dishwasher Control Panel
1WPW10350330 Whirlpool Dishwasher Control Panel
1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BLACK)
2W11256107 Whirlpool Dishwasher Clip
3W10479764 Whirlpool Dishwasher Electronic Control Board
4W10619006 Whirlpool Door Latch
5WPW10194937 Whirlpool Dishwasher Control Bracket
6HANDLE (WHITE)
6WPW10321839 Whirlpool Dishwasher Handle
7W10783730 Whirlpool Dishwasher Connector
8WPW10629166 Whirlpool Dishwasher UI Housing
9W10327246 Whirlpool Dishwasher Wire
10WPW10177098 Whirlpool Dishwasher Screw
