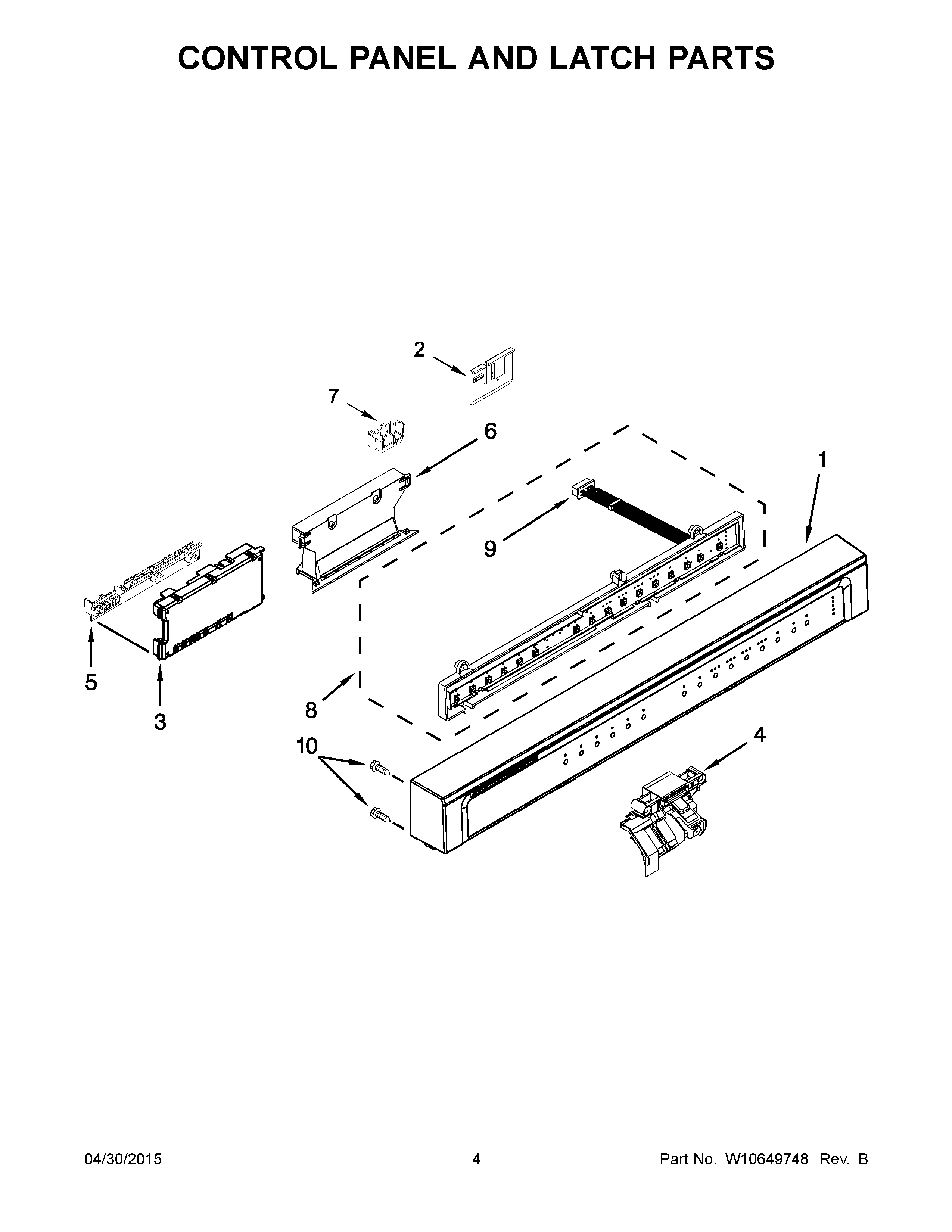

WDF750SAYW3 03 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1B	CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BISCUIT/BISQUE)
1	CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BLACK)
1C	WPW10350331 Whirlpool Dishwasher Control Panel
1A	WPW10350330 Whirlpool Dishwasher Control Panel
2	W11256107 Whirlpool Dishwasher Clip
3	W10597042 Whirlpool Dishwasher Electronic Control Board
4	WPW10653840 Whirlpool Door Latch
5	WPW10194937 Whirlpool Dishwasher Control Bracket
6A	HANDLE (WHITE)
6B	HANDLE (BISCUIT/BISQUE)
6	WPW10321839 Whirlpool Dishwasher Handle
7	W10783730 Whirlpool Dishwasher Connector
8	WPW10629166 Whirlpool Dishwasher UI Housing
9	W10327246 Whirlpool Dishwasher Wire
10	WPW10348408 Whirlpool Dishwasher Screw
