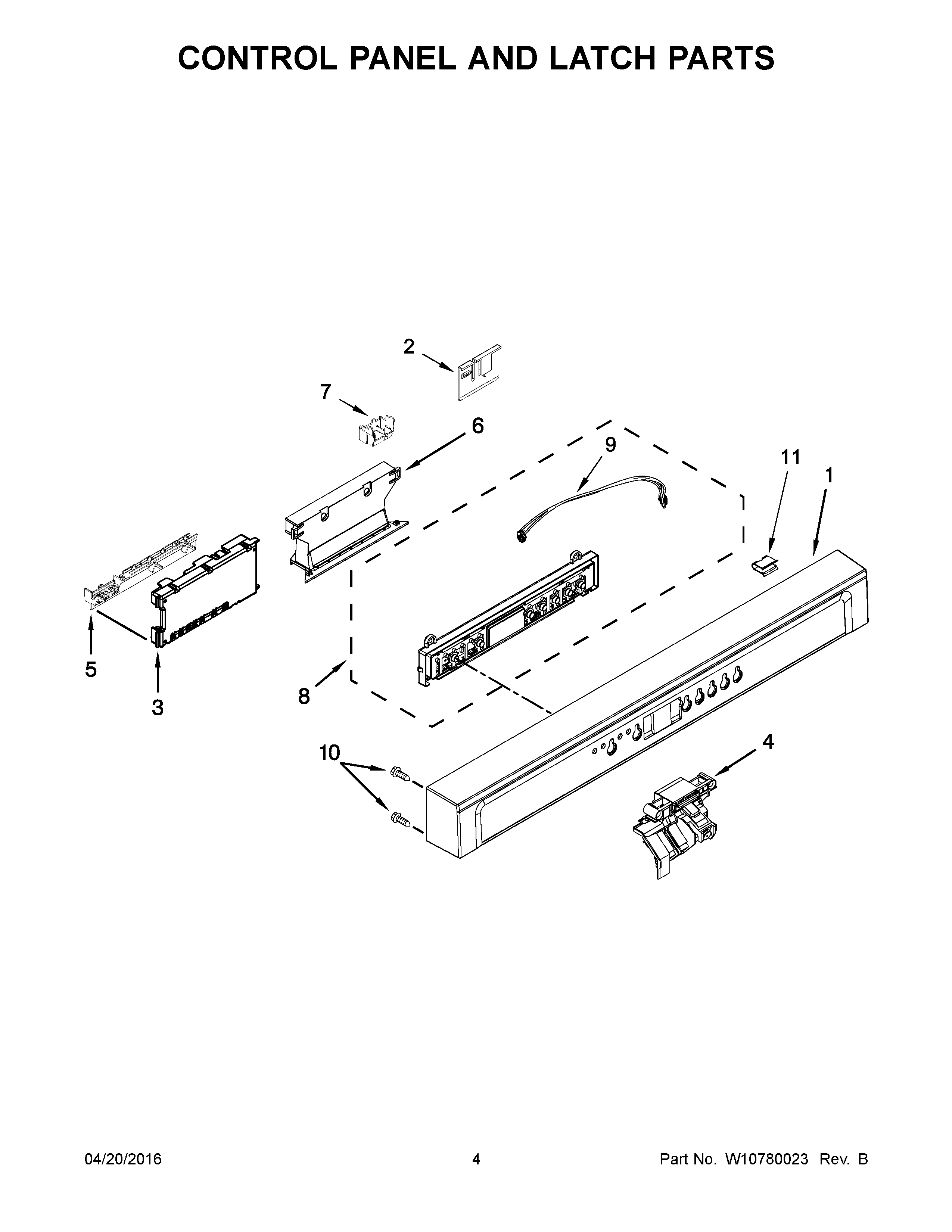

WDF760SADB1 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CW10810489 Whirlpool Dishwasher Console
1BW10698632 Whirlpool Dishwasher Console
1AW10698631 Whirlpool Dishwasher Console
1W10698630 Whirlpool Black Control Panel Assembly
2W11256107 Whirlpool Dishwasher Clip
3W10854220 Whirlpool Dishwasher Electronic Control Board
4WPW10653840 Whirlpool Door Latch
5WPW10194937 Whirlpool Dishwasher Control Bracket
6W11568629 Whirlpool Dishwasher Handle
7W10783730 Whirlpool Dishwasher Connector
8W10847890 Whirlpool Dishwasher User Interface Housing
9W11028004 Whirlpool Dishwasher Wire
10WPW10348408 Whirlpool Dishwasher Screw
11W10815836 Whirlpool Dishwasher Clip
