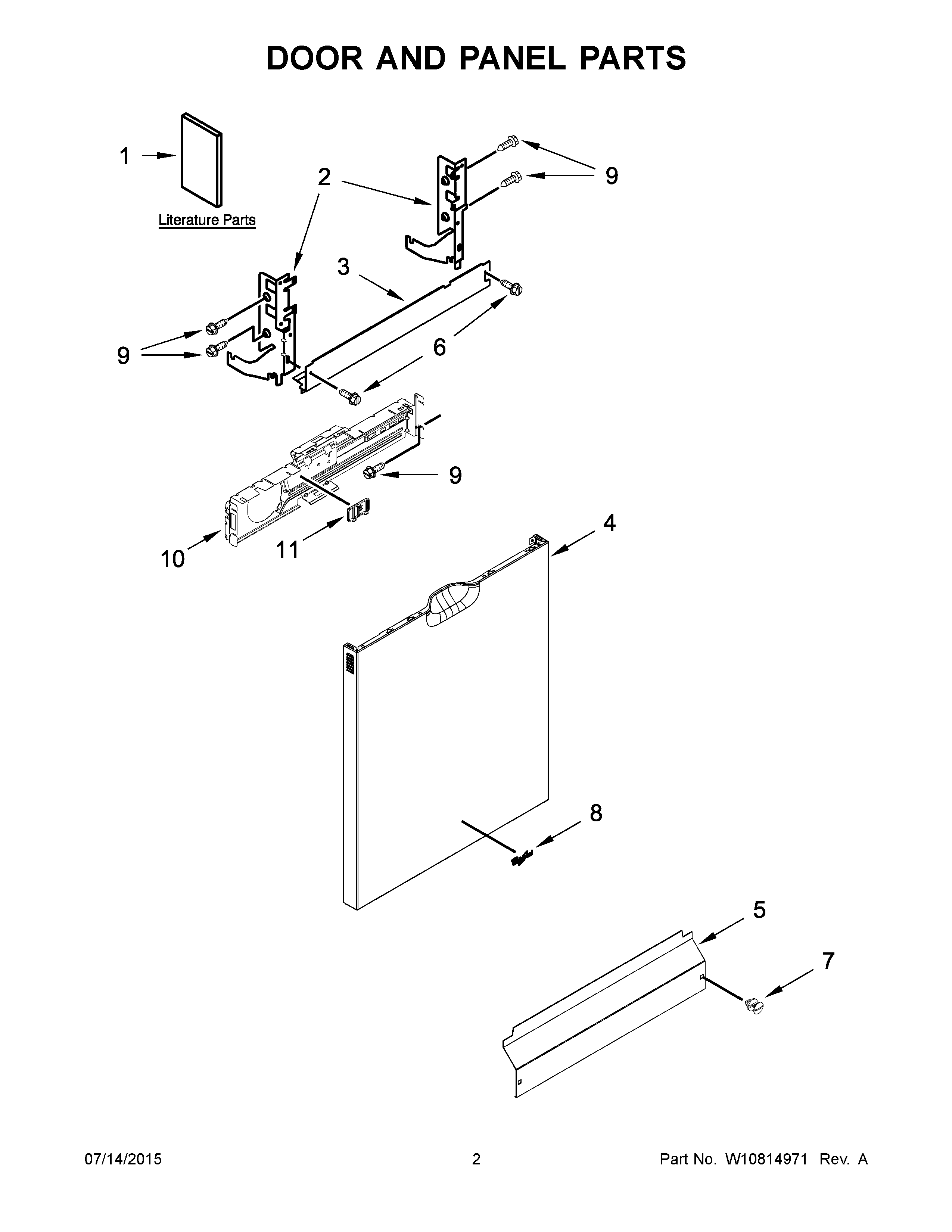

WDF760SADB2 02 – DOOR AND PANEL PARTS
Written by
in
WDF760SADB2 02 – DOOR AND PANEL PARTS
Products
Position
Product
1D
TECH SHEET, FRENCH
1C
TECH SHEET, ENGLISH
1
INSTALLATION INSTRUCTIONS
1B
USE & CARE GUIDE
1A
ENERGY GUIDE
2A
W11612303 Whirlpool Door Hinge
2
W11612302 Whirlpool Dishwasher Door Hinge
3
W10850371 Whirlpool Dishwasher Door Brace
4A
W10849693 Whirlpool Dishwasher Panel
4C
WPW10698615 Whirlpool Dishwasher Panel
4
W10810488 Whirlpool Dishwasher Panel
4B
W10839934 Whirlpool Dishwasher Panel
5
PANEL
5A
WPW10441007 Whirlpool Dishwasher Panel
5B
W10441008 Whirlpool Dishwasher Panel
6
WP489069 Whirlpool Compactor Screw
7B
WPW10503550 Whirlpool Dishwasher Retainer
7
WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
7A
WPW10503549 Whirlpool Dishwasher Retainer Clip
8
WPW10393264 Whirlpool Refrigerator Nameplate
8A
W11178521 Whirlpool Dishwasher Nameplate
9
WP3400071 Whirlpool Screw
10
W11116870 Whirlpool Dishwasher Control Bracket
11
W10463662 Whirlpool Dishwasher Spacer Plate
←
