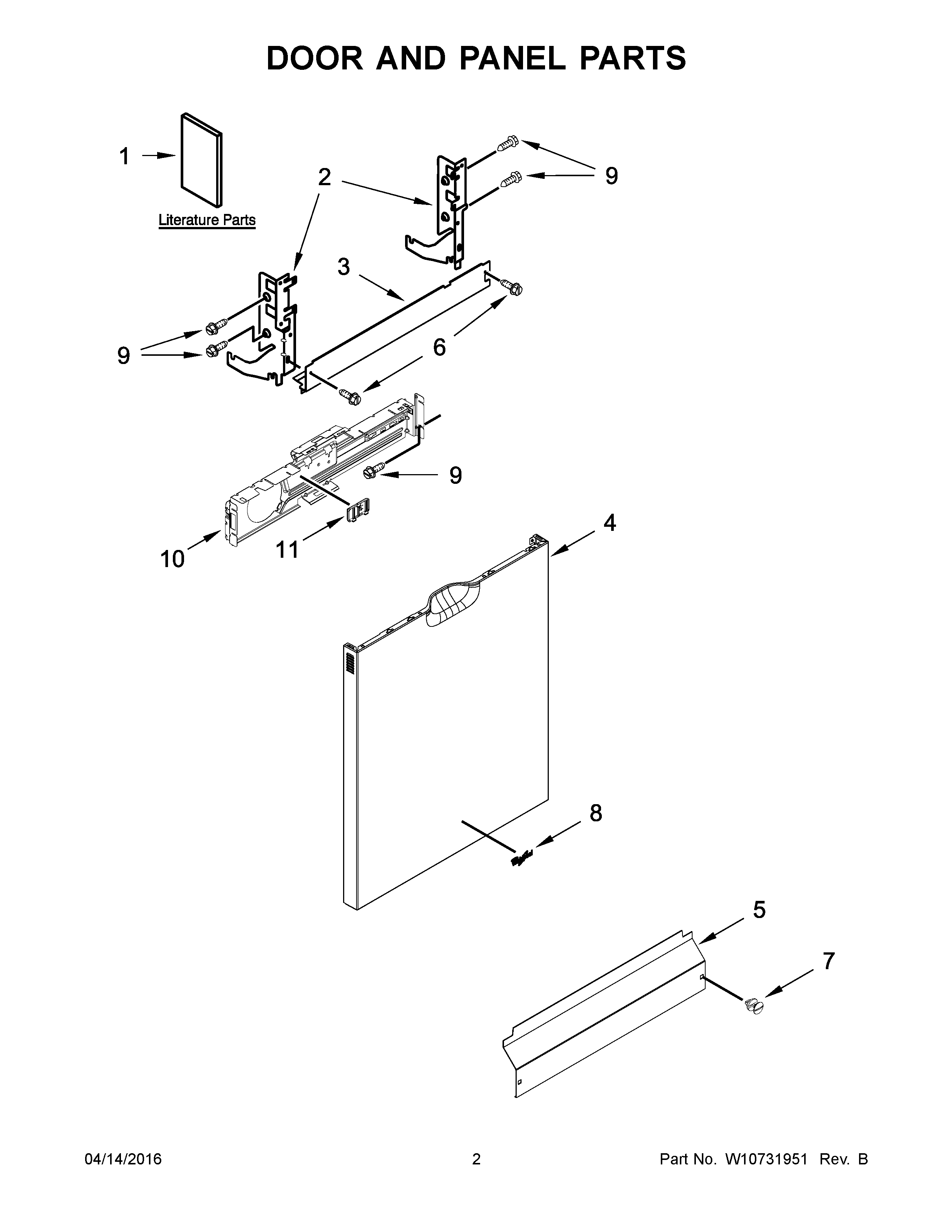

WDF760SADM0 02 – DOOR AND PANEL PARTS

WDF760SADM0 02 – DOOR AND PANEL PARTS

Written by

in

WDF760SADM0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1BUSE & CARE GUIDE
1CTECH SHEET, ENGLISH
1DTECH SHEET, FRENCH
1INSTRUCTIONS, INSTALLATION
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4BW10839934 Whirlpool Dishwasher Panel
4W10810488 Whirlpool Dishwasher Panel
4AW10849693 Whirlpool Dishwasher Panel
4CWPW10698615 Whirlpool Dishwasher Panel
5PANEL
5BW10441008 Whirlpool Dishwasher Panel
5AWPW10441007 Whirlpool Dishwasher Panel
6WP489069 Whirlpool Compactor Screw
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
7AWPW10503549 Whirlpool Dishwasher Retainer Clip
7BWPW10503550 Whirlpool Dishwasher Retainer
8WPW10393264 Whirlpool Refrigerator Nameplate
8AW11178521 Whirlpool Dishwasher Nameplate
9WP3400071 Whirlpool Screw
10W11116870 Whirlpool Dishwasher Control Bracket
11W10463662 Whirlpool Dishwasher Spacer Plate
