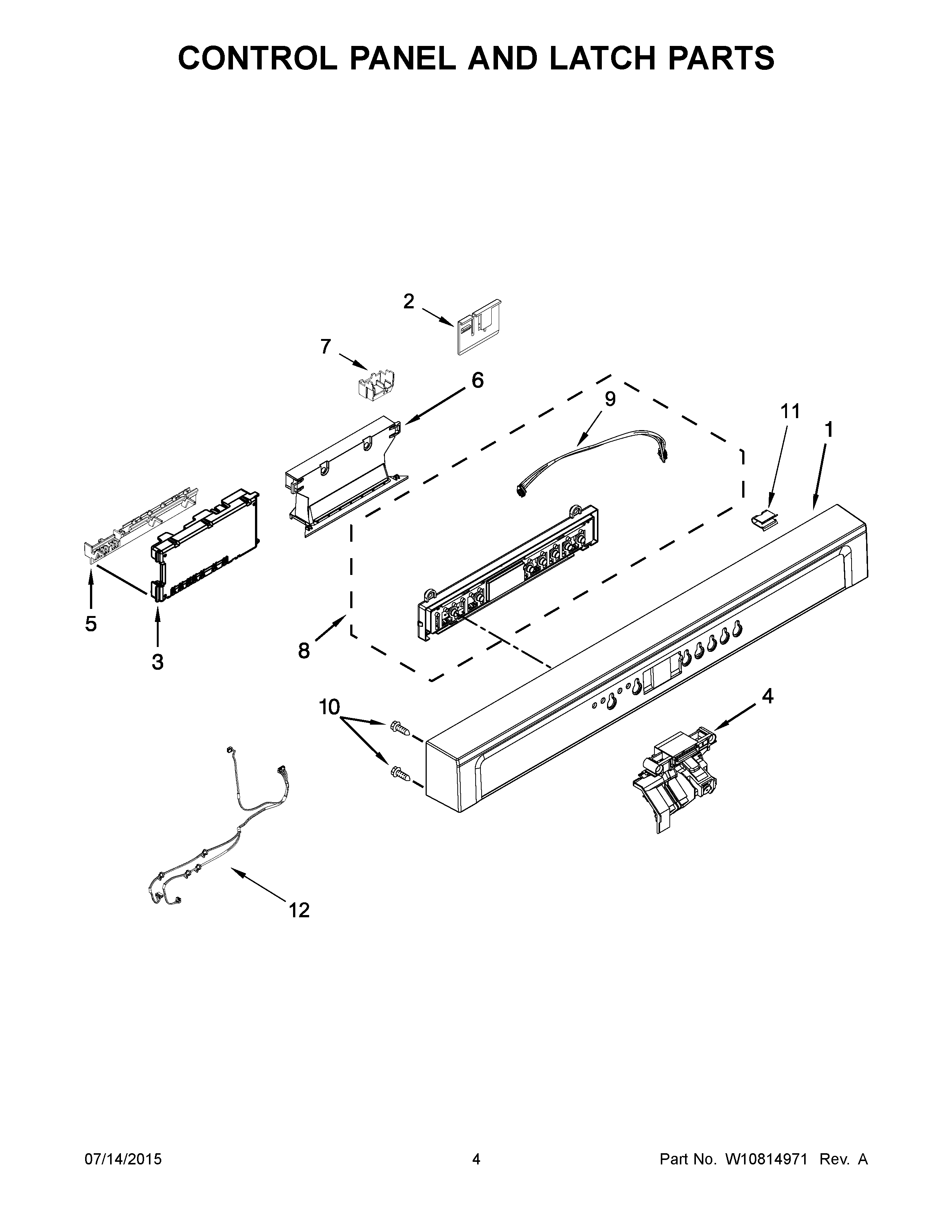

WDF760SADM2 03 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1C	W10810489 Whirlpool Dishwasher Console
1B	W10698632 Whirlpool Dishwasher Console
1A	W10698631 Whirlpool Dishwasher Console
1	W10698630 Whirlpool Black Control Panel Assembly
2	W11256107 Whirlpool Dishwasher Clip
3	W10854220 Whirlpool Dishwasher Electronic Control Board
4	WPW10653840 Whirlpool Door Latch
5	WPW10194937 Whirlpool Dishwasher Control Bracket
6	W11568629 Whirlpool Dishwasher Handle
7	W10783730 Whirlpool Dishwasher Connector
8	W10847890 Whirlpool Dishwasher User Interface Housing
9	W11028004 Whirlpool Dishwasher Wire
10	WPW10348408 Whirlpool Dishwasher Screw
11	W10815836 Whirlpool Dishwasher Clip
12	W10751782 Whirlpool Dishwasher Wire
