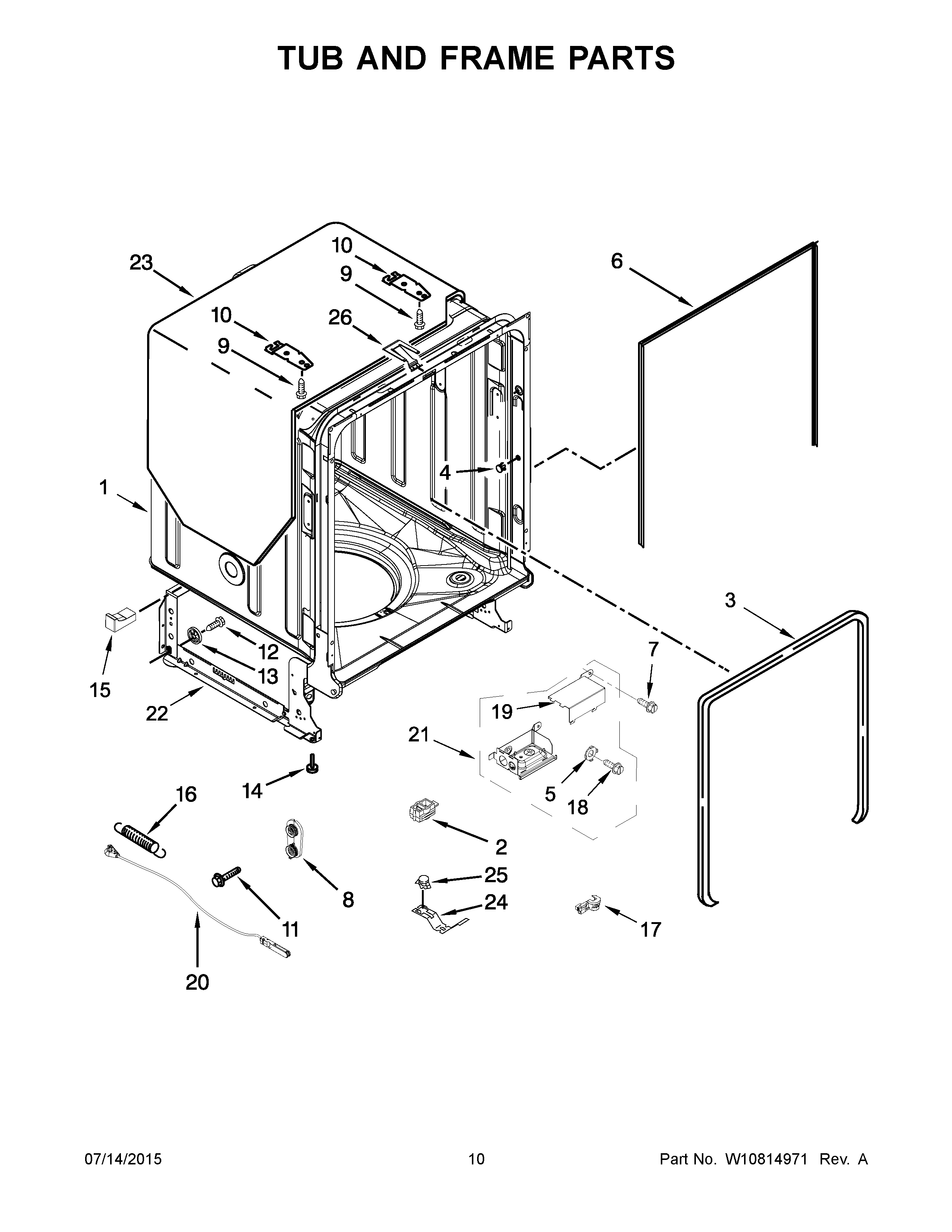

WDF760SADM2 06 – TUB AND FRAME PARTS

Products

PositionProduct
1WPW10681507 Whirlpool Dishwasher Tub
2W10292870 Whirlpool Dishwasher Housing
3W11177741 Whirlpool Dishwasher Door Gasket
4W11238348 Whirlpool Cap
5WP3378128 Whirlpool Dishwasher Washer
6SEAL
7WP3400014 Whirlpool Dishwasher Screw
8WPW10084086 Whirlpool Dishwasher Mount
9WP308685 Whirlpool Microwave Screw
10WP8269145 Whirlpool Dishwasher Mounting Bracket
11WP3400074 Whirlpool Dishwasher Screw
12WPW10348411 Whirlpool Roller Wheel Screw
13WPW10190778 Whirlpool Dishwasher Wheel
148193716 Whirlpool Leveling Leg
15W10195630 Whirlpool Dishwasher Spacer
15AW10195631 Whirlpool Dishwasher Tank Spacer
16SPRING
17STRAIN RELIEF
18WP3400892 Whirlpool Dishwasher Screw
19W10847918 Whirlpool Dishwasher Cover
208194001 Whirlpool Dishwasher Door Balance Link Kit
21W11167239 Whirlpool Dishwasher Cover Assembly
22WPW10681564 Whirlpool Dishwasher Support
23W11086533 Whirlpool Dishwasher Shield
24W10300703 Whirlpool Dishwasher Bracket Stat
25WPW10195091 Whirlpool Thermostat
26WPW10544004 Whirlpool Dishwasher Strike
