WDF760SADM3 03 – CONTROL PANEL AND LATCH PARTS
Written by
in

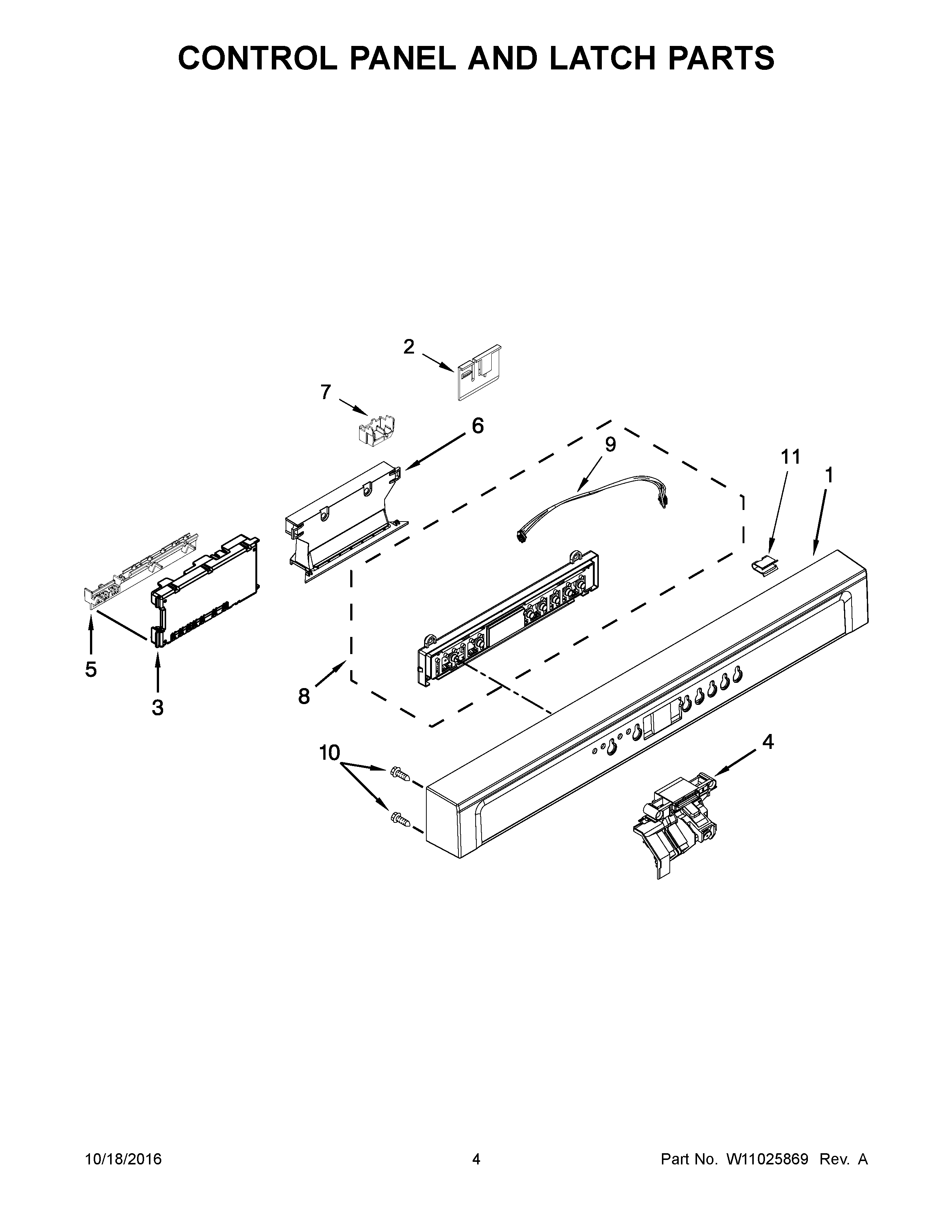

WDF760SADM3 03 – CONTROL PANEL AND LATCH PARTS
Products
Position
Product
1A
W10698631 Whirlpool Dishwasher Console
1
W10698630 Whirlpool Black Control Panel Assembly
1B
W10698632 Whirlpool Dishwasher Console
1C
W10810489 Whirlpool Dishwasher Console
2
W11256107 Whirlpool Dishwasher Clip
3
W11108143-includeCORE Whirlpool W11108143 Dishwasher Electronic Control Board + Core
4
WPW10653840 Whirlpool Door Latch
5
WPW10194937 Whirlpool Dishwasher Control Bracket
6
W11568629 Whirlpool Dishwasher Handle
7
W10783730 Whirlpool Dishwasher Connector
8
W10847890 Whirlpool Dishwasher User Interface Housing
9
W11028004 Whirlpool Dishwasher Wire
10
WPW10348408 Whirlpool Dishwasher Screw
11
W10815836 Whirlpool Dishwasher Clip
←
