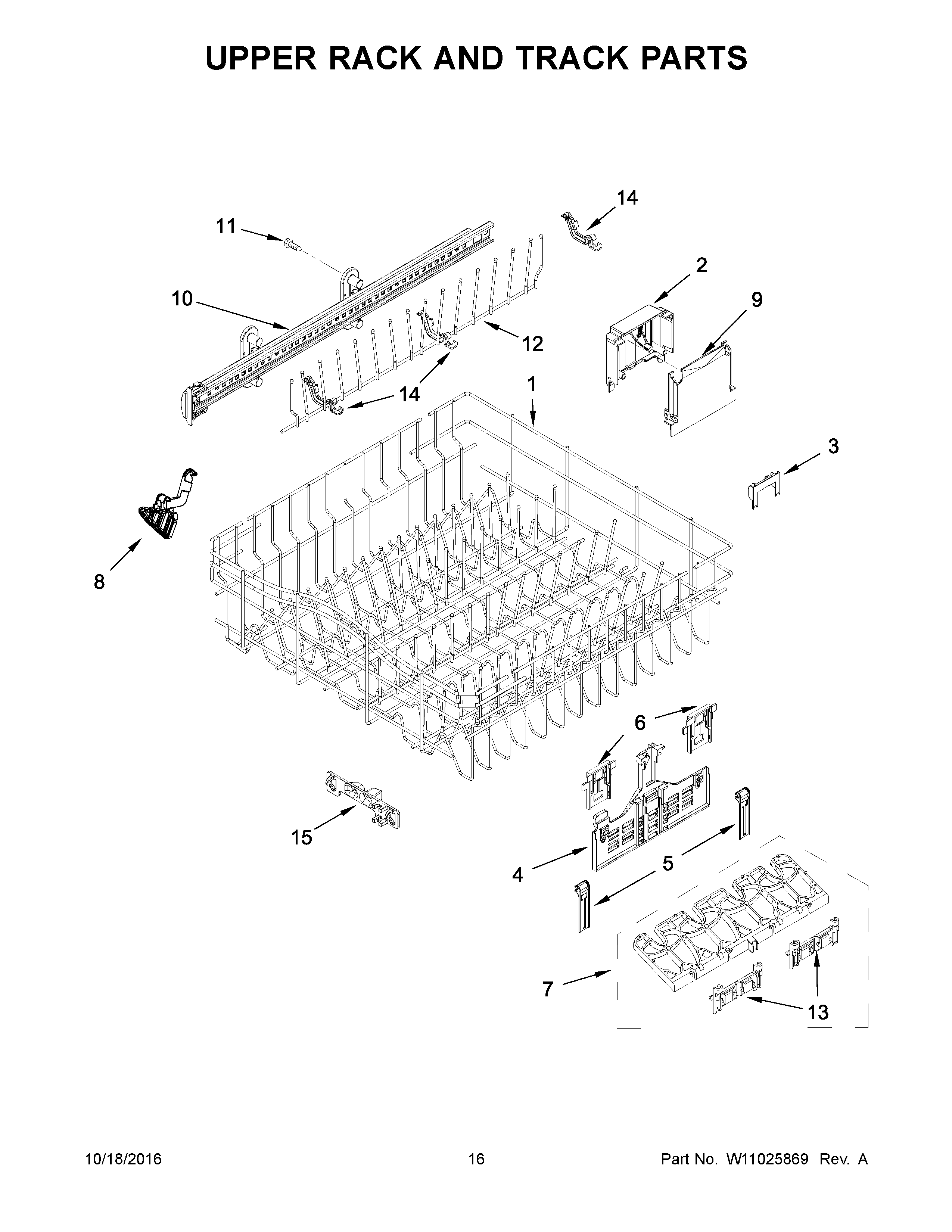

WDF760SADW3 09 – UPPER RACK AND TRACK PARTS

WDF760SADW3 09 – UPPER RACK AND TRACK PARTS

Written by

in

WDF760SADW3 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10727422 Whirlpool Dishwasher Dishrack
2W11162099 Whirlpool Dishwasher Housing
2AW11197024 Whirlpool Dishwasher Housing
3WPW10250160 Whirlpool Clip
4AW10838949 Whirlpool Dishwasher Adjuster
4W10837306 Whirlpool Dishwasher Adjuster
5WPW10195839 Whirlpool Dishwasher Rack Adjuster
6WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
7WPW10082649 Whirlpool Dishwasher Cup Shelf
8W10919676 Whirlpool Dishwasher Dispenser Guard Clip
9COVER
10TRACK, DISHRACK
11WPW10309090 Whirlpool Dishwasher Screw
12W10727426 Whirlpool Dishwasher Rack Tine
13WPW10082848 Whirlpool Clip
14WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
15W10803790 Whirlpool Dishwasher Dishrack Tine Tips
