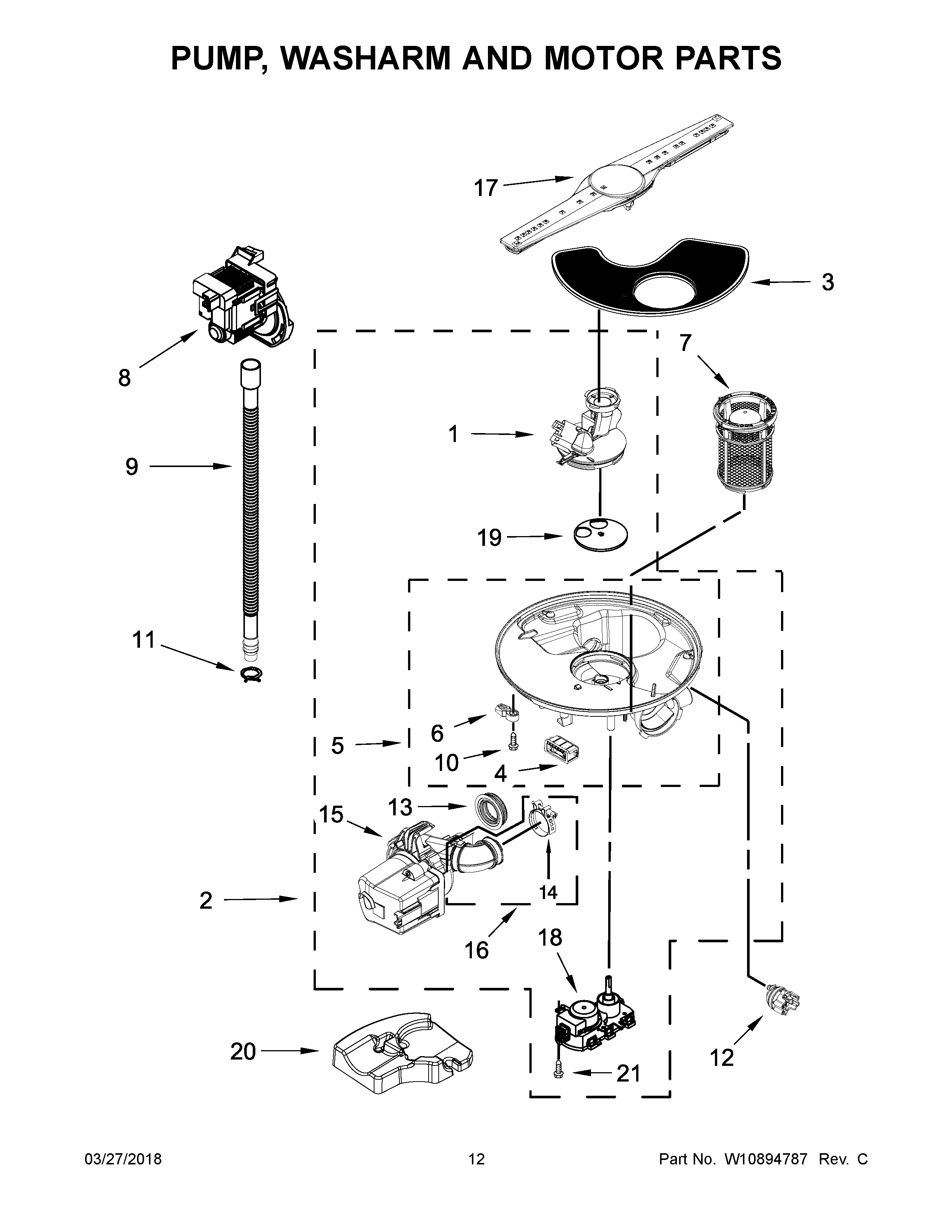

WDF770SAFZ0 07 – PUMP, WASHARM AND MOTOR PARTS

WDF770SAFZ0 07 – PUMP, WASHARM AND MOTOR PARTS

Written by

in

WDF770SAFZ0 07 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1W10629542 Whirlpool Dishwasher Cover
2WPW10671942 Whirlpool Dishwasher Pump and Motor
3WPW10463906 Whirlpool Dishwasher Screen Filter Cover
4W11243394 Whirlpool Dishwasher Support
5WPW10455268 Whirlpool Sump
6WPW10372113 Whirlpool Dishwasher Sump Tab
7W10872845 Whirlpool Dishwasher Filter Cup Trap
8WPW10348269 Whirlpool Washer Drain Pump
98269144A Whirlpool Dishwasher Drain Hose
10WPW10348407 Whirlpool Dishwasher Screw
11WP285655 Whirlpool Hose Clamp
12WPW10705575 Whirlpool Dishwasher Sensor
13WPW10538166 Whirlpool Grommet Pump
14W10789434 Whirlpool Dishwasher Hose Clamp
15W11032770 Whirlpool Dishwasher Circulation Pump & Motor
16W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
17W10837249 Whirlpool Lower Wash Arm
18W10537869 Whirlpool Dishwasher Motor
19WPW10476221 Whirlpool Dishwasher Diffuser
20W10350335 Whirlpool Dishwasher Damper
21WP9741232 Whirlpool Dishwasher Screw
