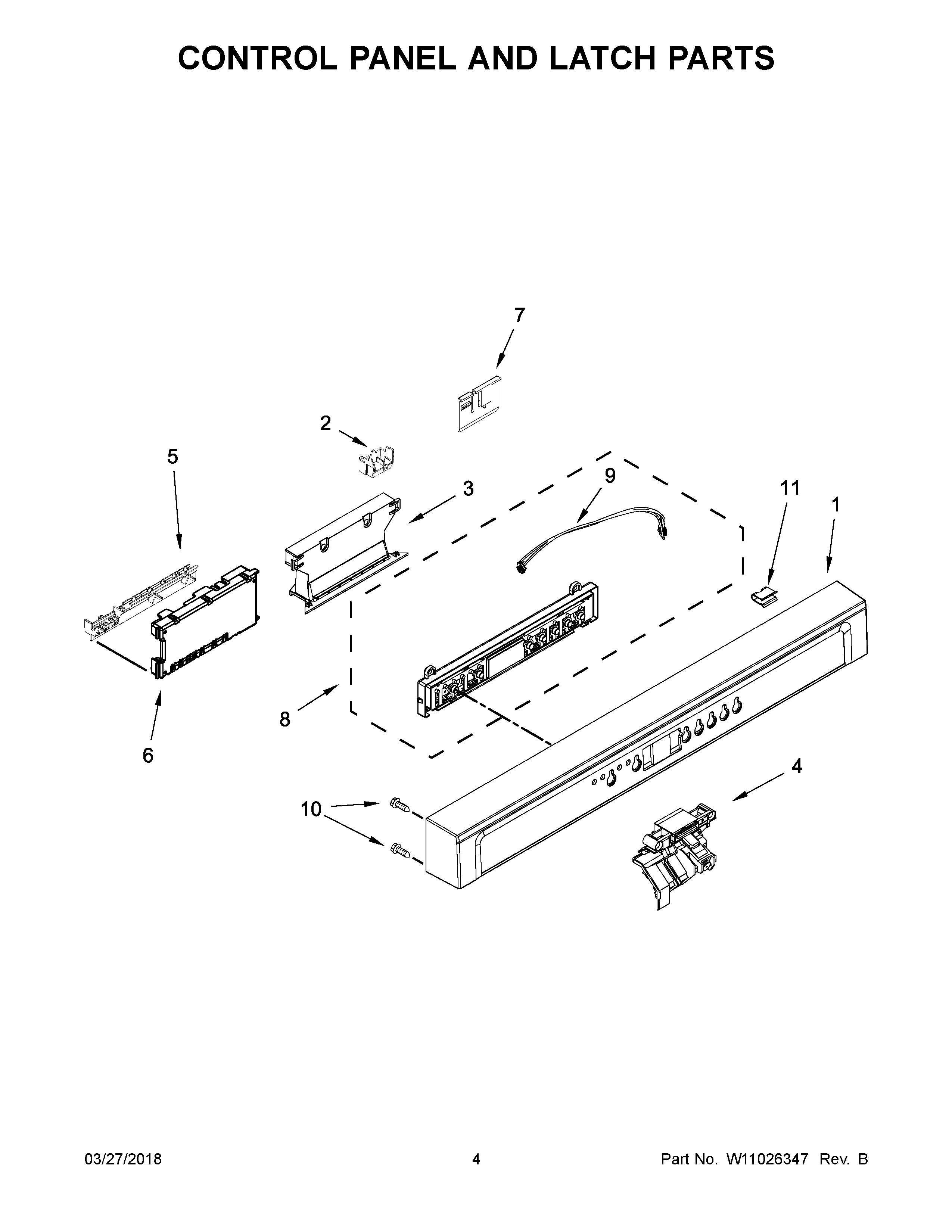

WDF770SAFZ1 03 – CONTROL PANEL AND LATCH PARTS

WDF770SAFZ1 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF770SAFZ1 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W10810489 Whirlpool Dishwasher Console
2W10783730 Whirlpool Dishwasher Connector
3W11568629 Whirlpool Dishwasher Handle
4WPW10653840 Whirlpool Door Latch
5WPW10194937 Whirlpool Dishwasher Control Bracket
6W11108143-includeCORE Whirlpool W11108143 Dishwasher Electronic Control Board + Core
7W11256107 Whirlpool Dishwasher Clip
8W10847890 Whirlpool Dishwasher User Interface Housing
9W11028004 Whirlpool Dishwasher Wire
10WPW10348408 Whirlpool Dishwasher Screw
11W10815836 Whirlpool Dishwasher Clip
