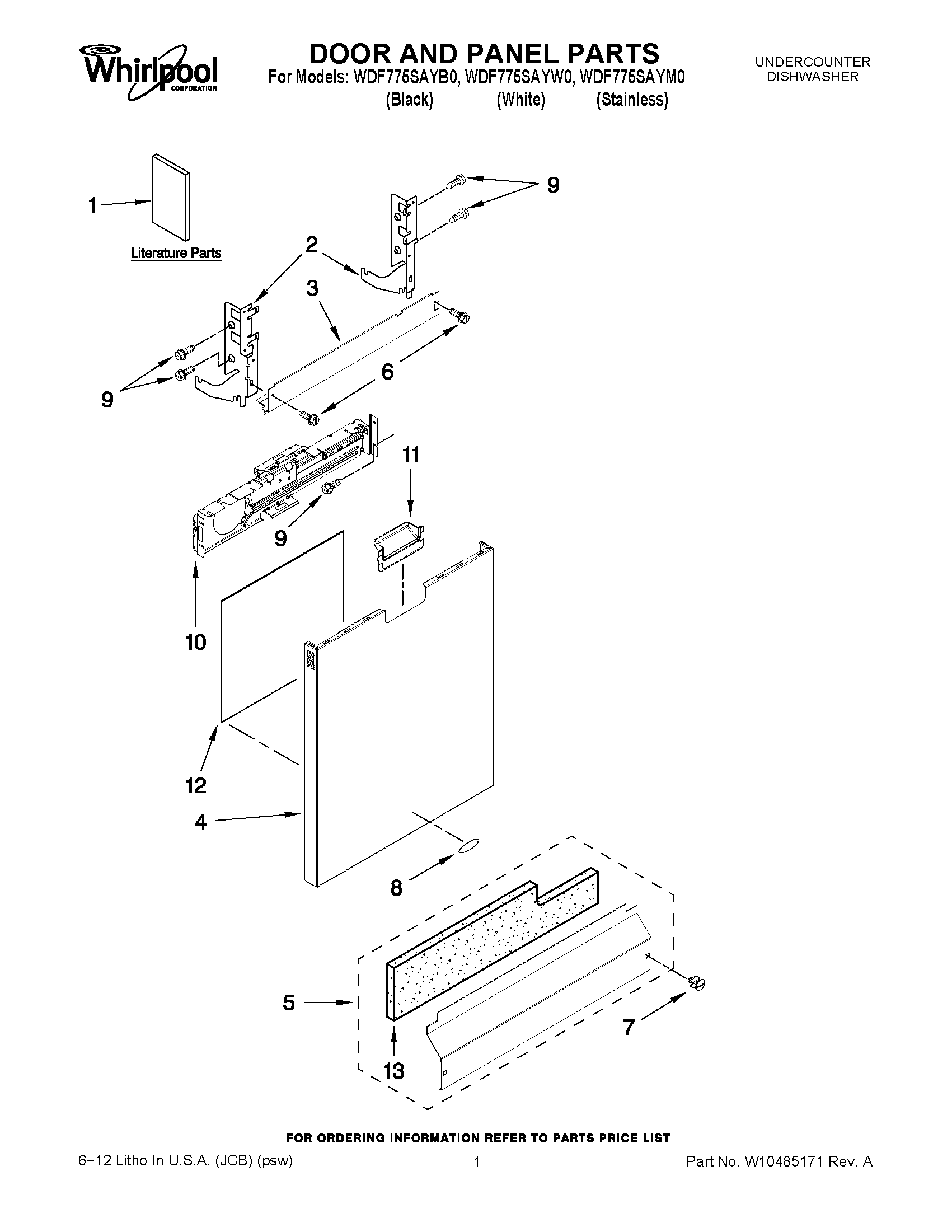

WDF775SAYB0 01 – DOOR AND PANEL PARTS

WDF775SAYB0 01 – DOOR AND PANEL PARTS

Written by

in

WDF775SAYB0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1TECH SHEET, FRENCH
1USE & CARE GUIDE, SPANISH
1USE & CARE GUIDE, ENGLISH/FRENCH
1INSTRUCTIONS, INSTALLATION
1TECH SHEET, ENGLISH
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10323571 Whirlpool Dishwasher Panel
4PANEL FRONT (INCLUDES 8 & 11) (STAINLESS)
4PANEL FRONT (INCLUDES 8 & 11) (BLACK)
5W10827632 Whirlpool Dishwasher Control Panel
5W10827631 Whirlpool Toe Panel
6WP489069 Whirlpool Compactor Screw
7WPW10503549 Whirlpool Dishwasher Retainer Clip
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8WPW10393264 Whirlpool Refrigerator Nameplate
9WP3400071 Whirlpool Screw
10WPW10350242 Whirlpool Dishwasher Control Bracket
11POCKET ASSY (BLACK)
11W10343321 Whirlpool Dishwasher Handle
11POCKET ASSY
12W11126003 Whirlpool Dishwasher Insulation Pad
13SHIELD
