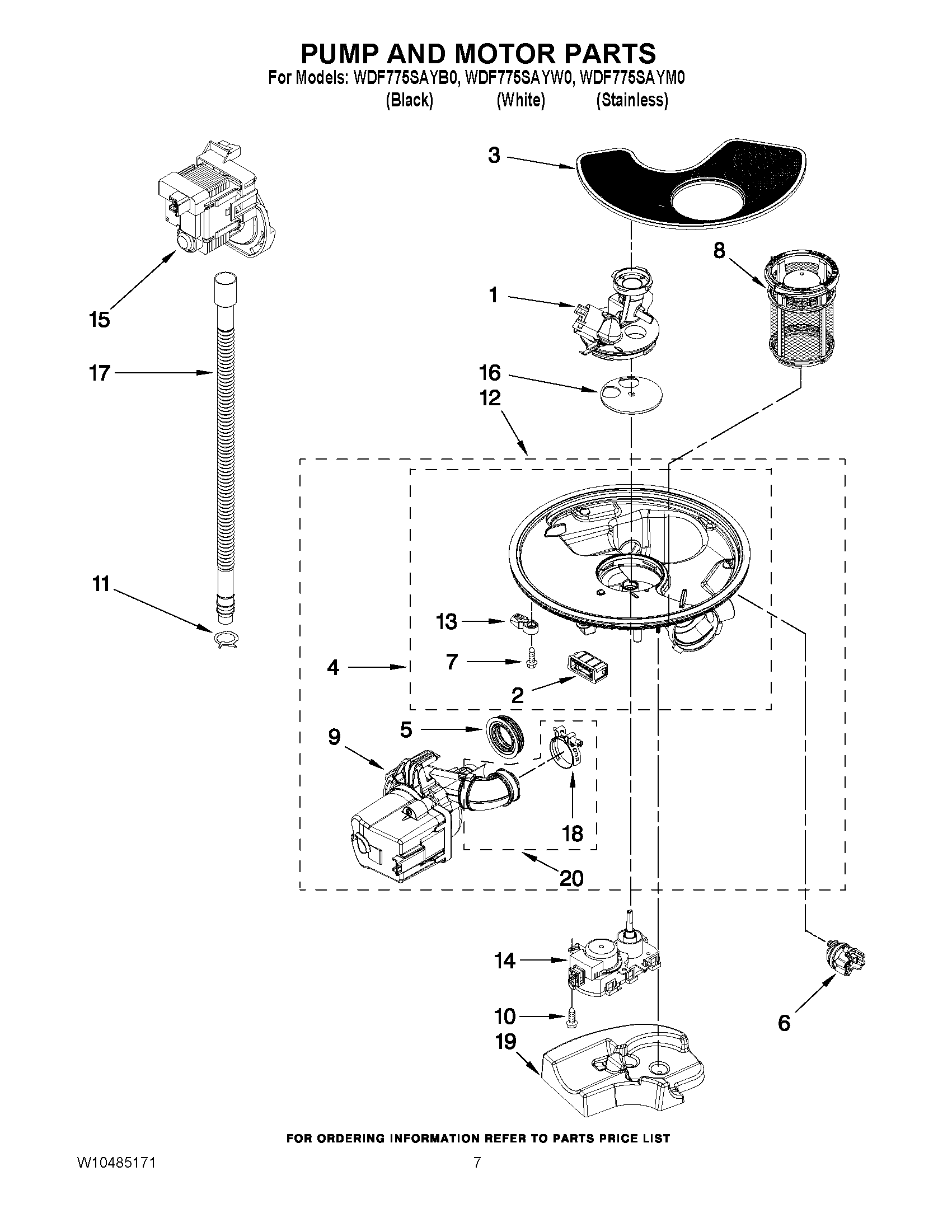

WDF775SAYB0 06 – PUMP AND MOTOR PARTS

WDF775SAYB0 06 – PUMP AND MOTOR PARTS

Written by

in

WDF775SAYB0 06 – PUMP AND MOTOR PARTS

Products

PositionProduct
1W10463895 Whirlpool Dishwasher Cover
2W11243394 Whirlpool Dishwasher Support
3WPW10354786 Whirlpool Dishwasher Screen
4WPW10455268 Whirlpool Sump
5WPW10538166 Whirlpool Grommet Pump
6WPW10705575 Whirlpool Dishwasher Sensor
7WPW10348407 Whirlpool Dishwasher Screw
8W10872845 Whirlpool Dishwasher Filter Cup Trap
9W11032770 Whirlpool Dishwasher Circulation Pump & Motor
10WP9741232 Whirlpool Dishwasher Screw
11WP8269146 Whirlpool Dishwasher Clamp
12WPW10482482 Whirlpool Dishwasher Pump and Motor
13WPW10372113 Whirlpool Dishwasher Sump Tab
14W10537869 Whirlpool Dishwasher Motor
15WPW10348269 Whirlpool Washer Drain Pump
16DISC, DIVERTER
178269144A Whirlpool Dishwasher Drain Hose
18W10789434 Whirlpool Dishwasher Hose Clamp
19W10350335 Whirlpool Dishwasher Damper
20W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
