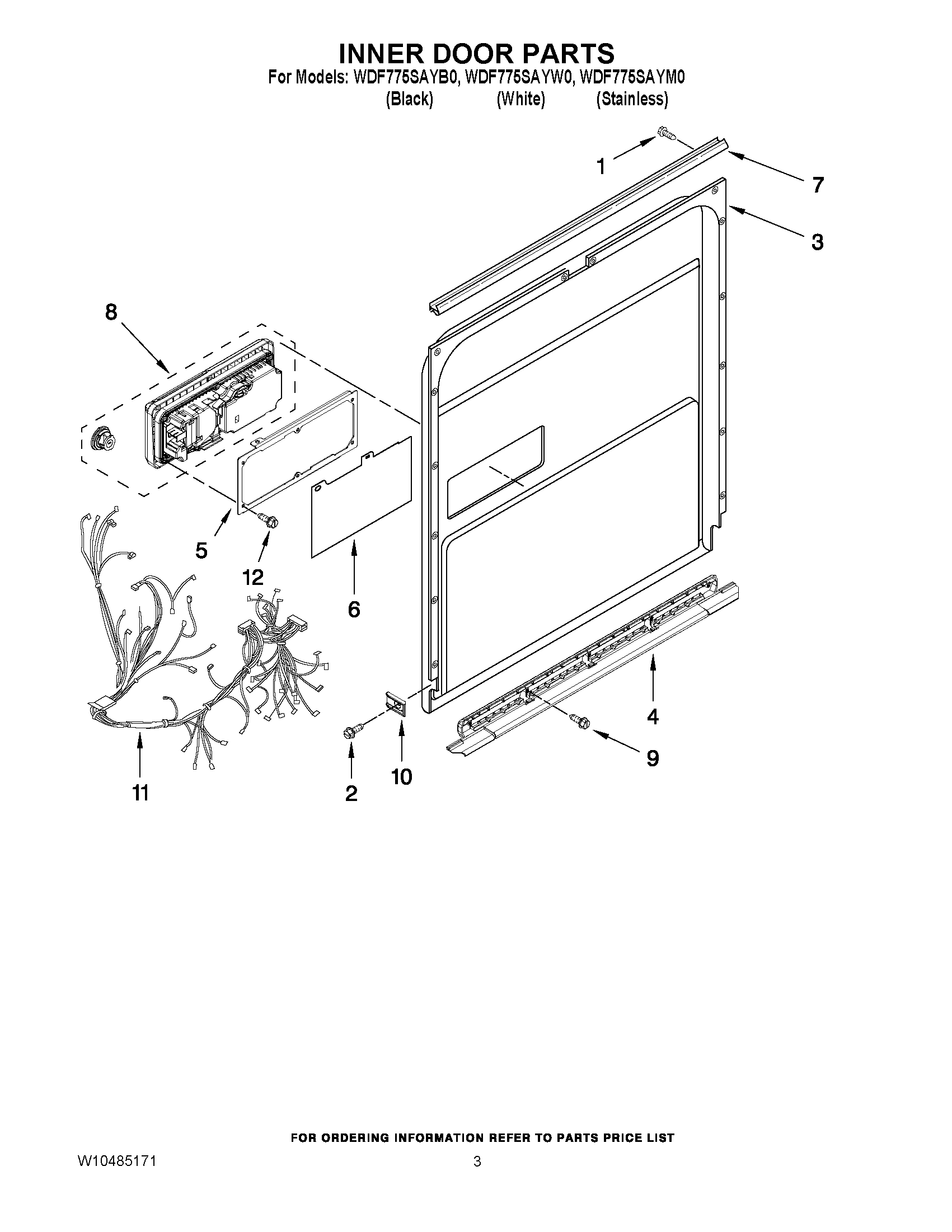

WDF775SAYM0 03 – INNER DOOR PARTS

WDF775SAYM0 03 – INNER DOOR PARTS

Written by

in

WDF775SAYM0 03 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2WP3400071 Whirlpool Screw
3WPW10380376 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
6WPW10482094 Whirlpool Dishwasher Cover
7WPW10195007 Whirlpool Dishwasher Seal
8DISPENSER (DISHWASHER)
9W11631670 Whirlpool Screw
10W10195837 Whirlpool Dishwasher Barrier
11WPW10612062 Whirlpool Dishwasher Wire Harness
12WPW10177098 Whirlpool Dishwasher Screw
