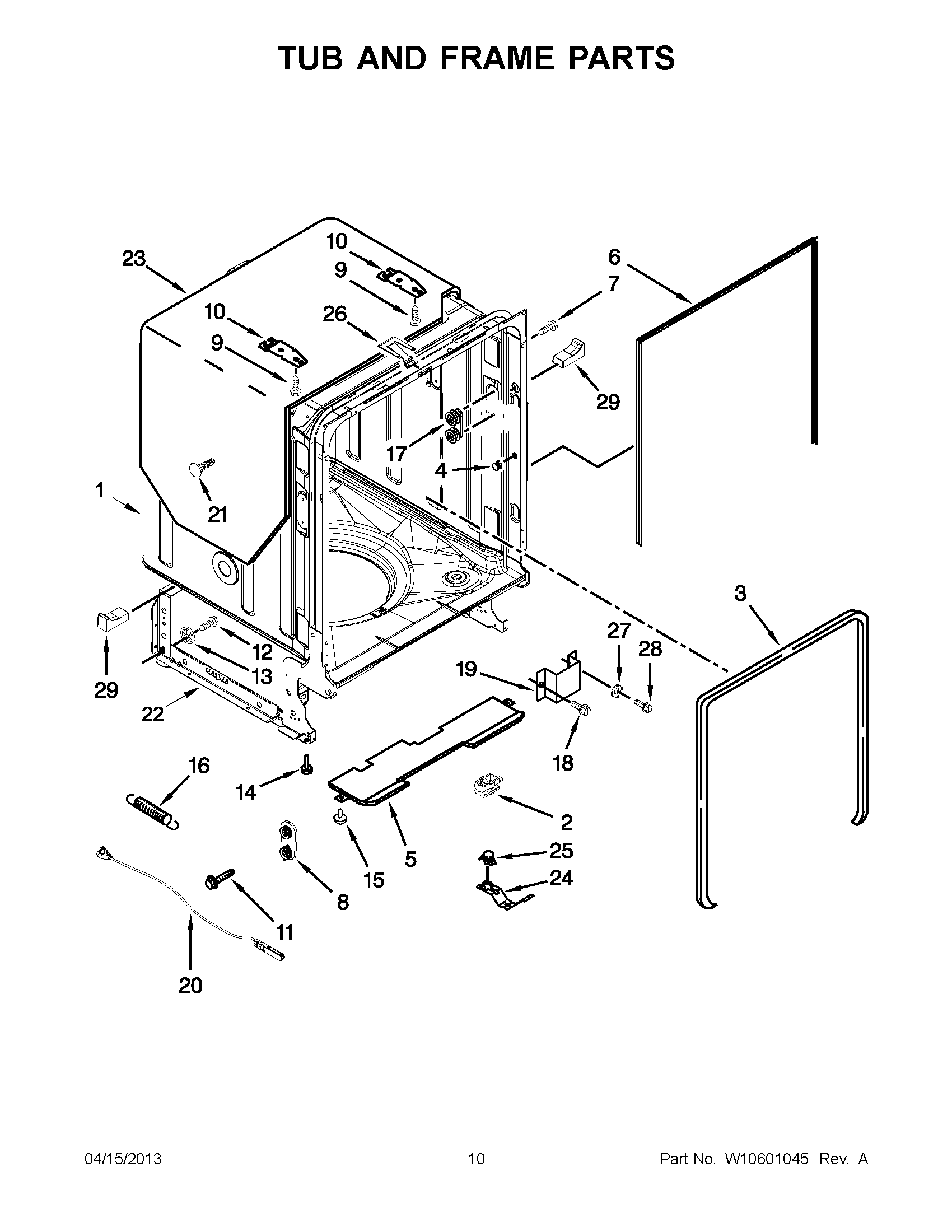

WDF775SAYW2 05 – TUB AND FRAME PARTS

Products

Position	Product
1	WPW10681507 Whirlpool Dishwasher Tub
2	W10292870 Whirlpool Dishwasher Housing
3	W11177741 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WPW10746770 Whirlpool Insulation Pad
6	SEAL
7	WPW10309090 Whirlpool Dishwasher Screw
8	WPW10084086 Whirlpool Dishwasher Mount
9	WP308685 Whirlpool Microwave Screw
10	WP8269145 Whirlpool Dishwasher Mounting Bracket
11	WP3400074 Whirlpool Dishwasher Screw
12	WPW10348411 Whirlpool Roller Wheel Screw
13	WPW10190778 Whirlpool Dishwasher Wheel
14	8193716 Whirlpool Leveling Leg
15	WP3400924 Whirlpool Dishwasher Retainer
16	SPRING
17	WPW10505748 Whirlpool Dishwasher Dishrack Wheel
18	WP3400892 Whirlpool Dishwasher Screw
19	WP8268991 Whirlpool Dishwasher Cover Assembly
20	8194001 Whirlpool Dishwasher Door Balance Link Kit
21	WP304666 Whirlpool Dishwasher Retainer
22	WPW10681564 Whirlpool Dishwasher Support
23	W11086533 Whirlpool Dishwasher Shield
24	W10300703 Whirlpool Dishwasher Bracket Stat
25	WPW10195091 Whirlpool Thermostat
26	WPW10300779 Whirlpool Dishwasher Strike
27	WP3378128 Whirlpool Dishwasher Washer
28	WP3400014 Whirlpool Dishwasher Screw
29	W10195630 Whirlpool Dishwasher Spacer
29	W10195631 Whirlpool Dishwasher Tank Spacer
