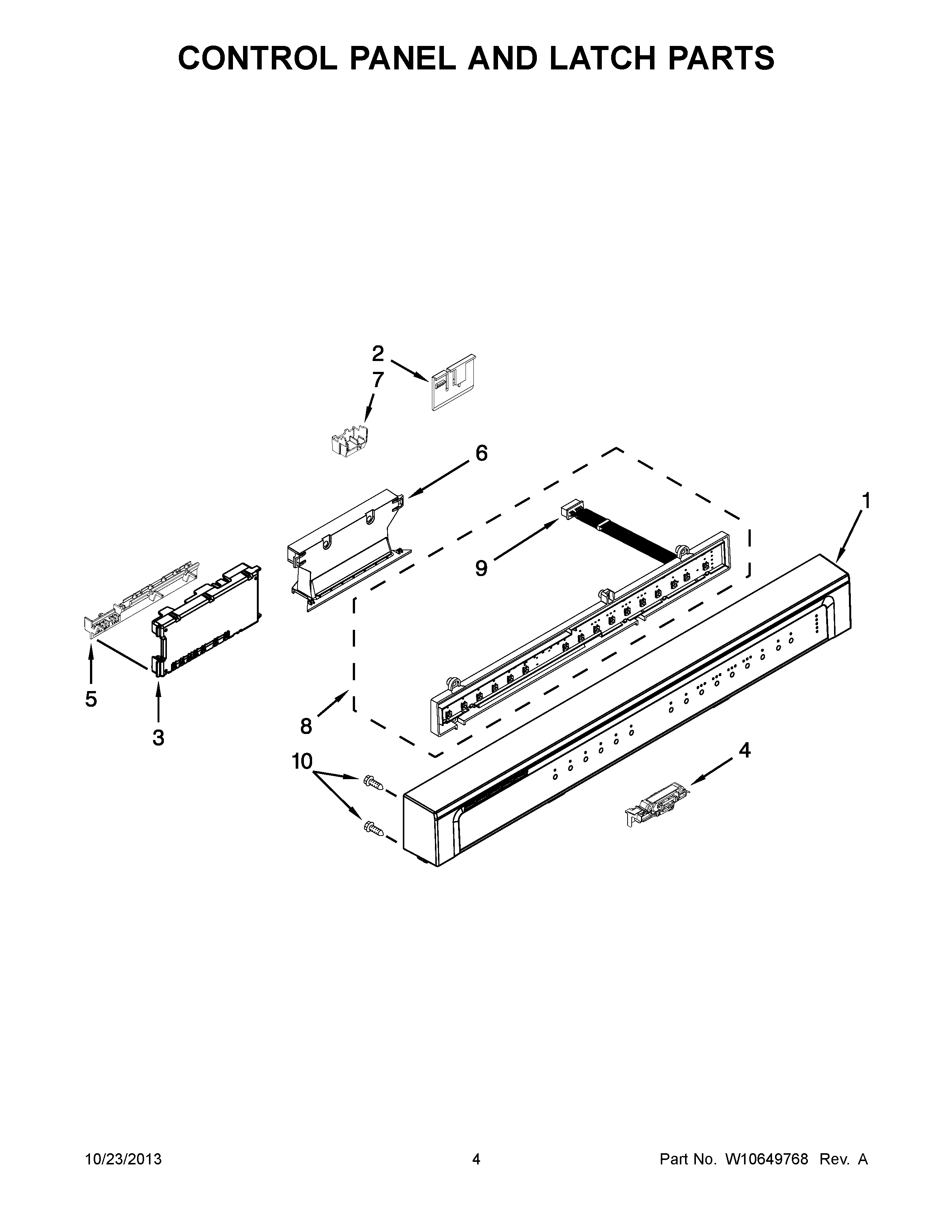

WDF775SAYW3 03 – CONTROL PANEL AND LATCH PARTS

WDF775SAYW3 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF775SAYW3 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10350415 Whirlpool Dishwasher Console
1WPW10350414 Whirlpool Dishwasher Console
1WPW10350413 Whirlpool Dishwasher Console
2W11256107 Whirlpool Dishwasher Clip
3W10597042 Whirlpool Dishwasher Electronic Control Board
4WPW10653840 Whirlpool Door Latch
5WPW10194937 Whirlpool Dishwasher Control Bracket
6WPW10321839 Whirlpool Dishwasher Handle
6HANDLE (WHITE)
7W10783730 Whirlpool Dishwasher Connector
8WPW10440702 Whirlpool Dishwasher UI Housing
9W10327246 Whirlpool Dishwasher Wire
10WPW10348408 Whirlpool Dishwasher Screw
