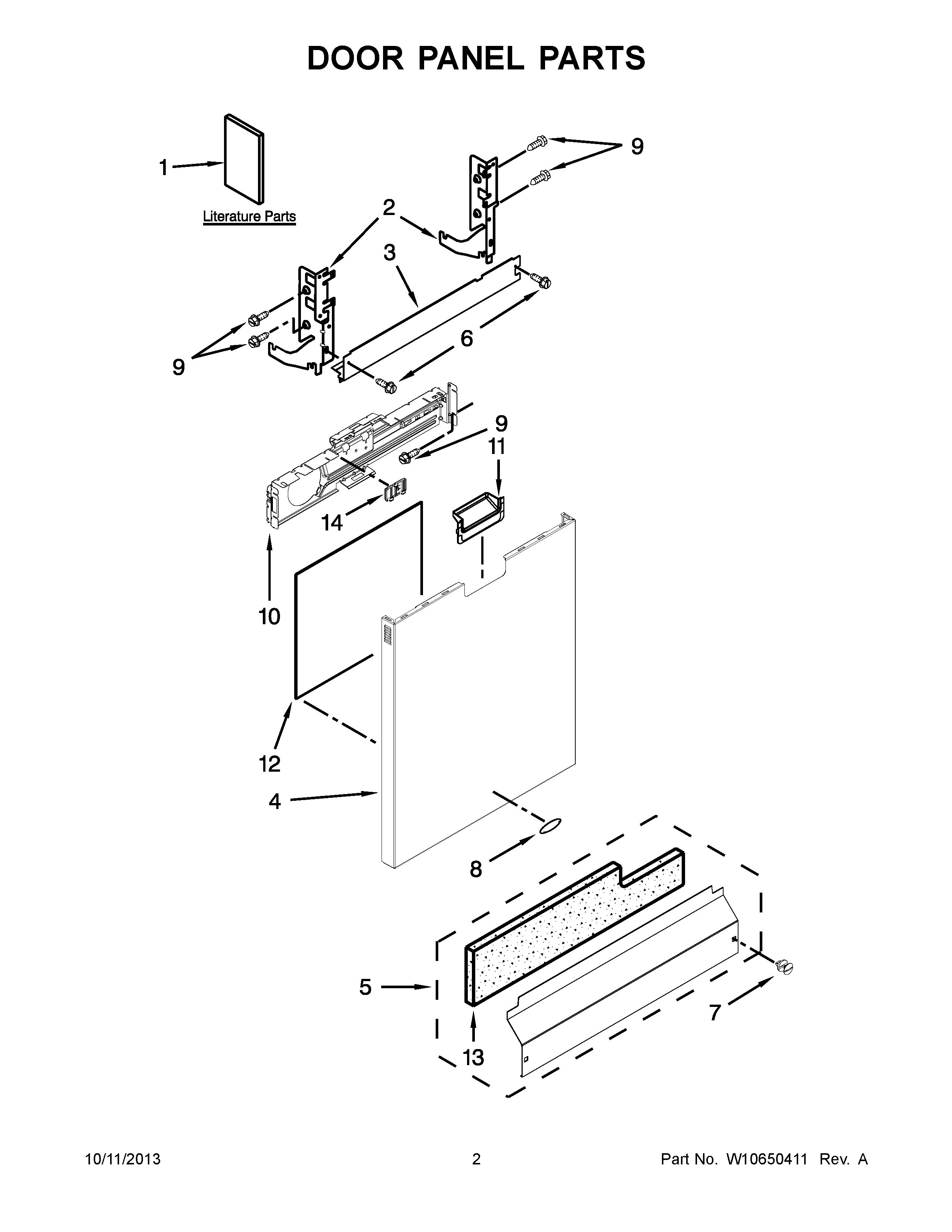

WDF780SLYB3 02 – DOOR PANEL PARTS

Products

Position	Product
1	INSTRUCTIONS, INSTALLATION
1	ENERGY GUIDE
1	TECH SHEET, FRENCH
1	TECH SHEET, ENGLISH
1	USE & CARE GUIDE, ENGLISH/FRENCH
2	W11612303 Whirlpool Door Hinge
2	W11612302 Whirlpool Dishwasher Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	PANEL FRONT (INCLUDES 8 & 11) (STAINLESS)
4	PANEL FRONT (INCLUDES 8 & 11) (BLACK)
4	WPW10323571 Whirlpool Dishwasher Panel
5	W10827632 Whirlpool Dishwasher Control Panel
5	W10827631 Whirlpool Toe Panel
6	WP489069 Whirlpool Compactor Screw
7	WPW10503549 Whirlpool Dishwasher Retainer Clip
7	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8	WPW10393264 Whirlpool Refrigerator Nameplate
8	W11178521 Whirlpool Dishwasher Nameplate
9	WP3400071 Whirlpool Screw
10	WPW10350242 Whirlpool Dishwasher Control Bracket
11	W10343321 Whirlpool Dishwasher Handle
11	POCKET ASSY (BLACK)
11	POCKET, HANDLE (SILVER)
12	WPW10073520 Whirlpool Dishwasher Insulation Pad
13	SHIELD
14	W10463662 Whirlpool Dishwasher Spacer Plate
