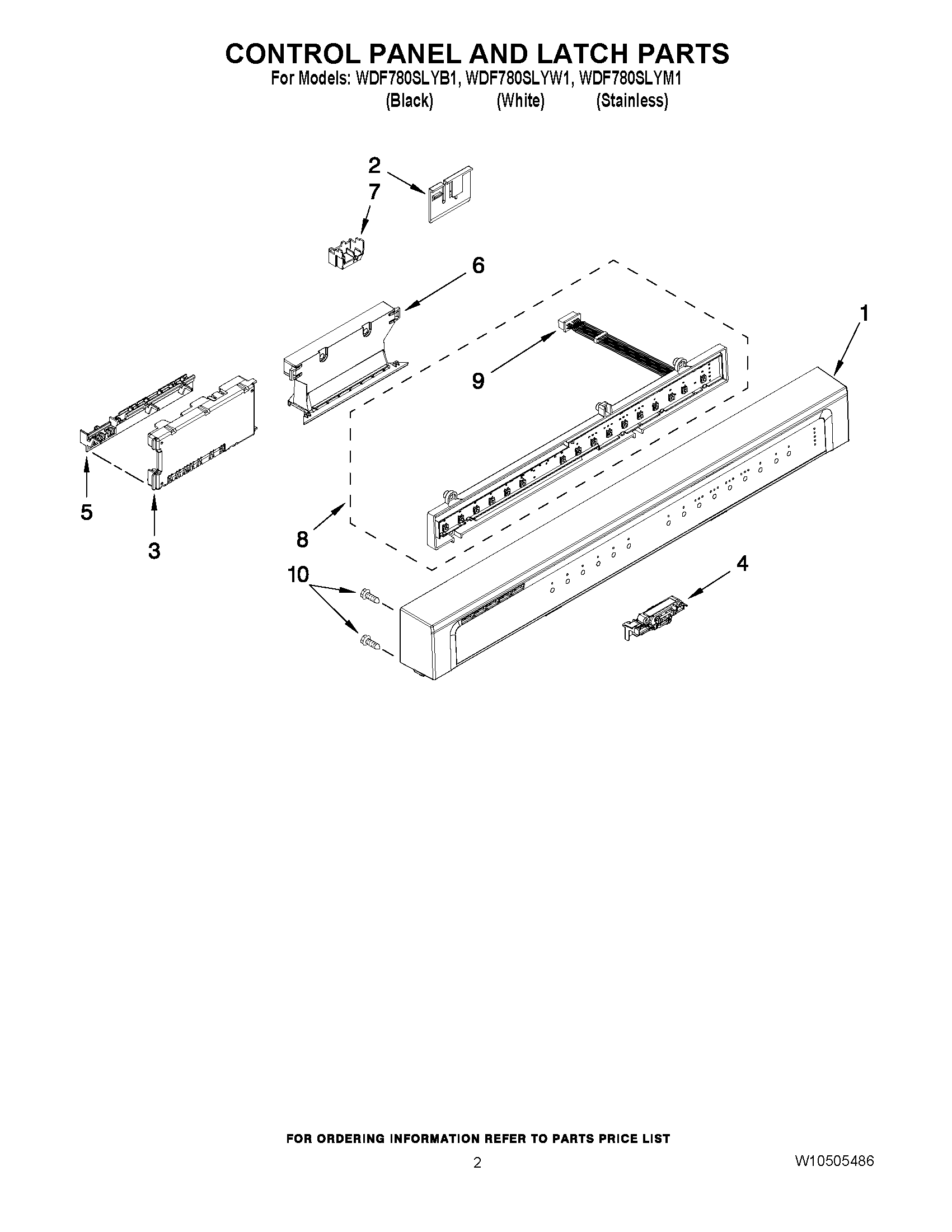

WDF780SLYM1 02 – CONTROL PANEL AND LATCH PARTS

WDF780SLYM1 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF780SLYM1 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10350415 Whirlpool Dishwasher Console
1WPW10350414 Whirlpool Dishwasher Console
1WPW10350413 Whirlpool Dishwasher Console
2W11256107 Whirlpool Dishwasher Clip
3W10479764 Whirlpool Dishwasher Electronic Control Board
4W10619006 Whirlpool Door Latch
5WPW10194937 Whirlpool Dishwasher Control Bracket
6HANDLE (WHITE)
6WPW10321839 Whirlpool Dishwasher Handle
7W10783730 Whirlpool Dishwasher Connector
8WPW10440702 Whirlpool Dishwasher UI Housing
9W10327246 Whirlpool Dishwasher Wire
10WPW10177098 Whirlpool Dishwasher Screw
