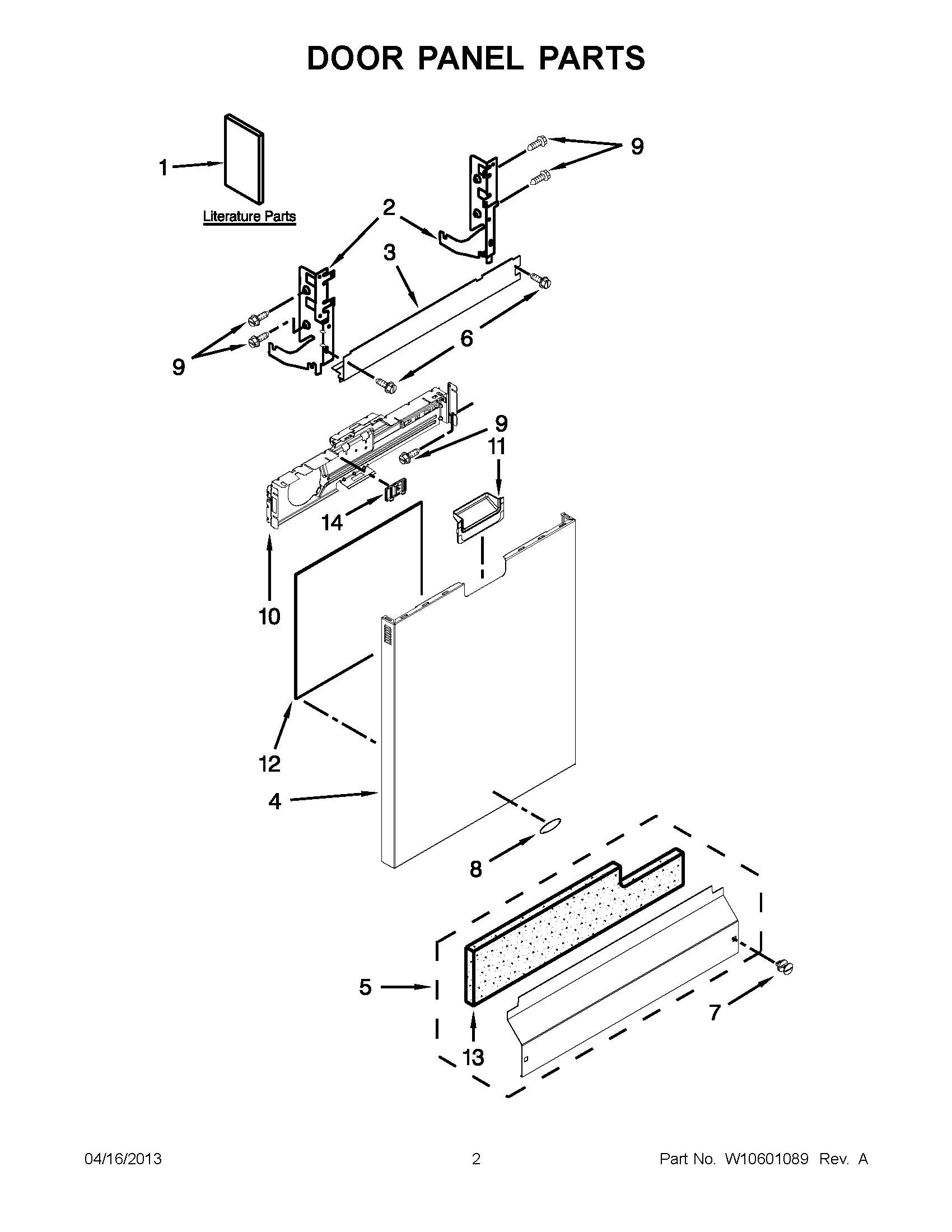

WDF780SLYW2 01 – DOOR PANEL PARTS

Products

Position	Product
1	INSTRUCTIONS, INSTALLATION
1	USE & CARE GUIDE, SPANISH
1	TECH SHEET, FRENCH
1	ENERGY GUIDE
1	TECH SHEET, ENGLISH
1	USE & CARE GUIDE, ENGLISH/FRENCH
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	WPW10323571 Whirlpool Dishwasher Panel
4	PANEL FRONT (INCLUDES 8 & 11) (STAINLESS)
4	PANEL FRONT (INCLUDES 8 & 11) (BLACK)
5	W10827631 Whirlpool Toe Panel
5	W10827632 Whirlpool Dishwasher Control Panel
6	WP489069 Whirlpool Compactor Screw
7	WPW10503549 Whirlpool Dishwasher Retainer Clip
7	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8	WPW10393264 Whirlpool Refrigerator Nameplate
8	W11178521 Whirlpool Dishwasher Nameplate
9	WP3400071 Whirlpool Screw
10	WPW10350242 Whirlpool Dishwasher Control Bracket
11	POCKET ASSY
11	W10343321 Whirlpool Dishwasher Handle
11	POCKET ASSY (BLACK)
12	WPW10073520 Whirlpool Dishwasher Insulation Pad
13	SHIELD
14	W10463662 Whirlpool Dishwasher Spacer Plate
