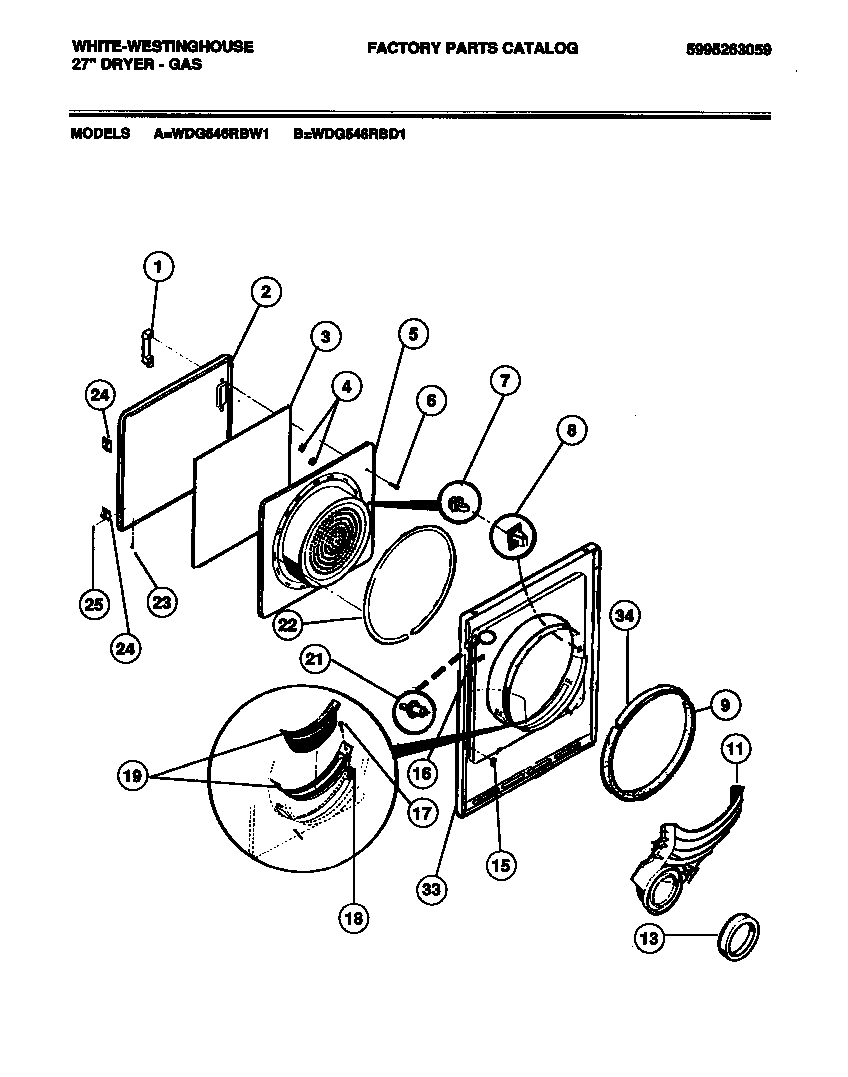

WDG546RBD1 03 – DOOR

WDG546RBD1 03 – DOOR

Written by

in

WDG546RBD1 03 – DOOR

Products

PositionProduct
*73043WCI 131397001
1WCI 131194200
2WCI 5303299162
3SHIELD, HEAT
4WCI 3201205
5PANEL-I.D. ALMD
6WCI 5303281051
75303207102 Frigidaire Door Strike
8131658800 Frigidaire Dryer Door Catch Repair Kit
9WCI 5303281049
11DUCT-AIR
13134417000 Frigidaire Seal
15CLIP GUIDE (4)
16WCI 131063700
17131420300 Frigidaire Screw
18CLIP
19TRAP-LINT
21SWITCH-DOOR
22GASKET, DOOR
24HINGE, DOOR (2)
25SCREW (8)
33PANEL, FRONT, ALMOND
345303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
