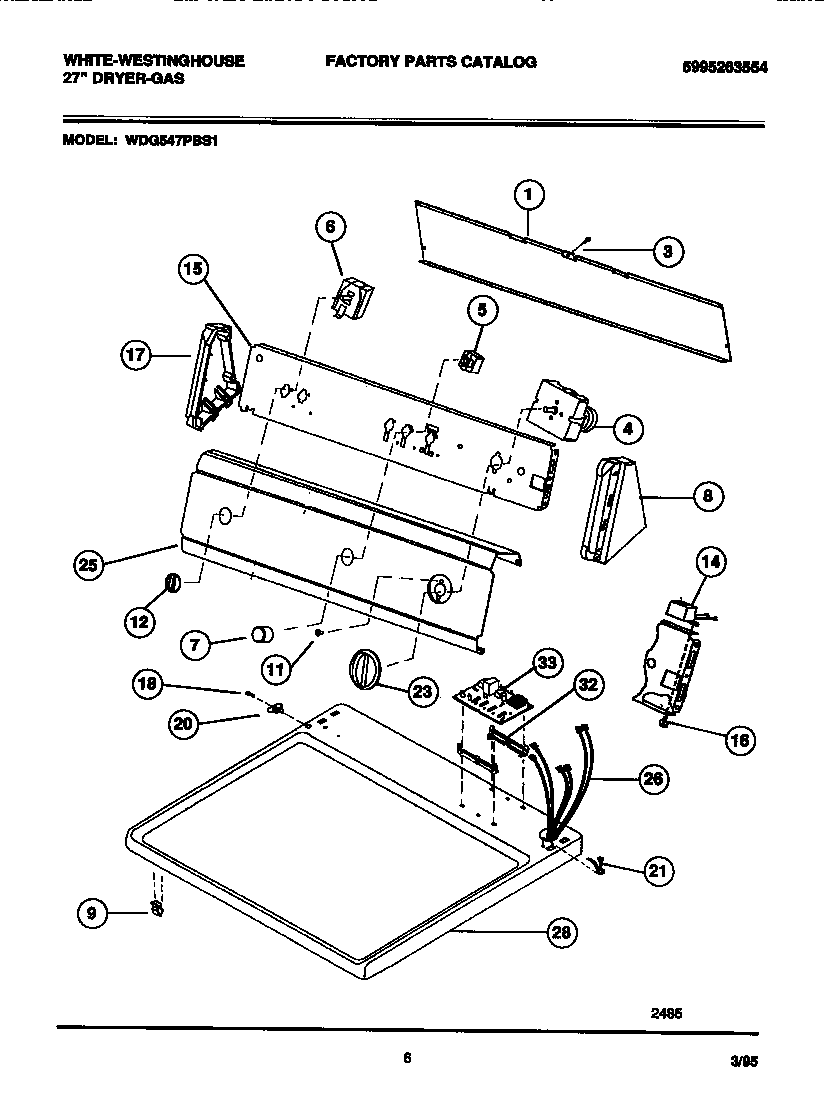

WDG547PBS1 04 – CONSOLE, CONTROLS, TOP PANEL

WDG547PBS1 04 – CONSOLE, CONTROLS, TOP PANEL

Written by

in

WDG547PBS1 04 – CONSOLE, CONTROLS, TOP PANEL

Products

PositionProduct
1COVER-BACK
3131205100 Frigidaire Screw
4WCI 131111300
5WCI 131048000
6WCI 131362500
7WCI 131111501
8WCI 5303291351
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
12WCI 131118603
14WCI 131169500
15WCI 131297306
165303015671 Frigidaire Bracket Termination Screw
17WCI 5303291343
18WCI 5303297854
20CLIP-CONSOLE MTG
21131243800 Frigidaire Screw
23WCI 131118903
25WCI 131369300
26WCI 131370000
28WCI 131130402
32WCI 131089800
33WCI 131167400
