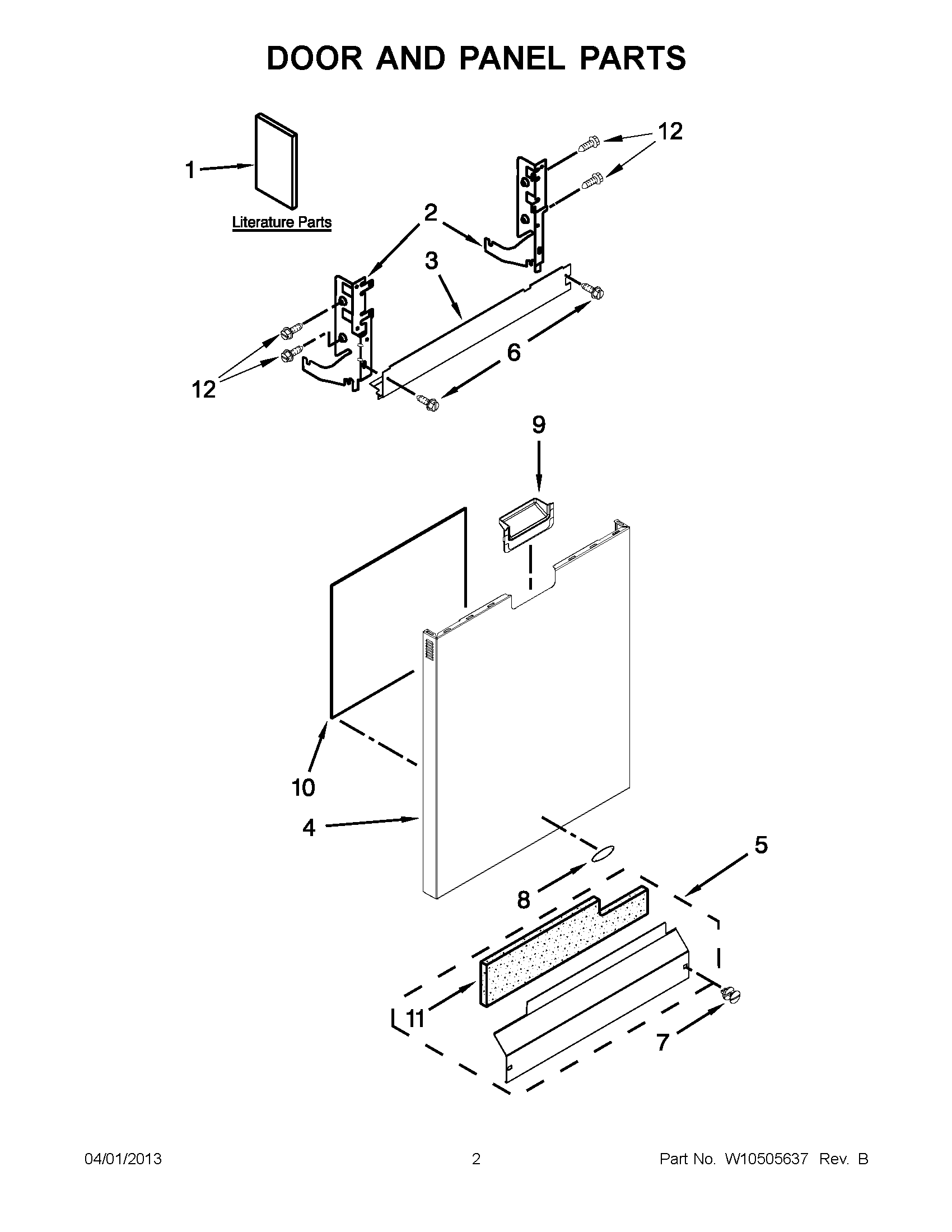

WDL785SAAM0 01 – DOOR AND PANEL PARTS

WDL785SAAM0 01 – DOOR AND PANEL PARTS

Written by

in

WDL785SAAM0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1TECH SHEET
1ENERGY GUIDE
1INSTRUCTIONS, INSTALLATION
1USE & CARE GUIDE, ENGLISH/FRENCH
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4PANEL FRONT (INCLUDES 8 & 11) (STAINLESS)
5W10827631 Whirlpool Toe Panel
6WP489069 Whirlpool Compactor Screw
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8WPW10393264 Whirlpool Refrigerator Nameplate
9POCKET ASSY
10WPW10073520 Whirlpool Dishwasher Insulation Pad
11SHIELD
12WP3400071 Whirlpool Screw
