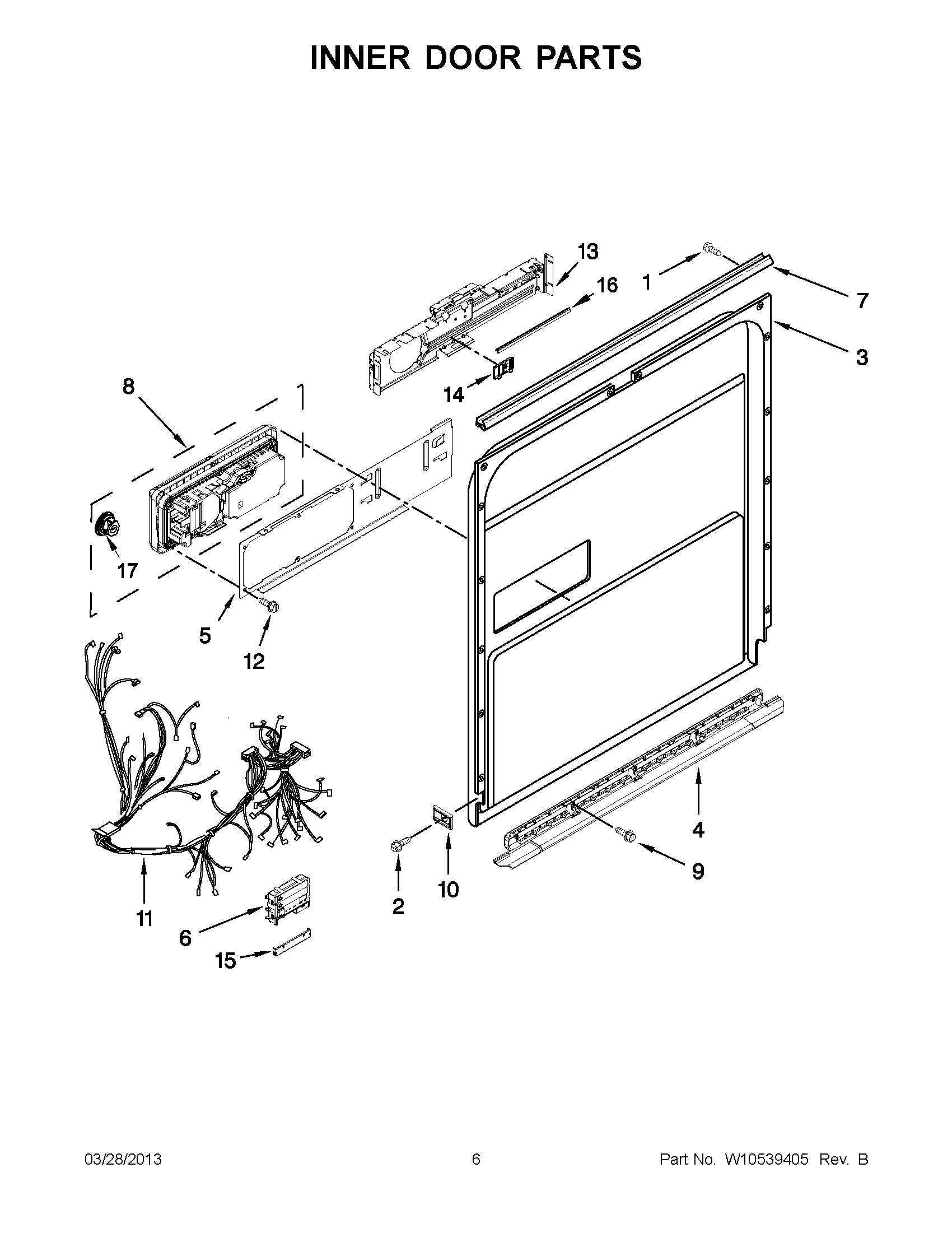

WDL785SAAM1 03 – INNER DOOR PARTS

WDL785SAAM1 03 – INNER DOOR PARTS

Written by

in

WDL785SAAM1 03 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2WP3400071 Whirlpool Screw
3WPW10380376 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5BRACKET, DISPENSER
6ECM, SMART GRID
7WPW10195007 Whirlpool Dishwasher Seal
8DISPENSER (DISHWASHER)
9W11631670 Whirlpool Screw
10W10195837 Whirlpool Dishwasher Barrier
11WIRING HARNESS (INCLUDES REAR TUB ANTENNA & CURRENT TRANSFORMER)
12WPW10177098 Whirlpool Dishwasher Screw
13WPW10350242 Whirlpool Dishwasher Control Bracket
14W10463662 Whirlpool Dishwasher Spacer Plate
15COVER, ECM CONNECTOR
16W10461527 Whirlpool Seal
17WPW10524911 Whirlpool Dishwasher Cap
