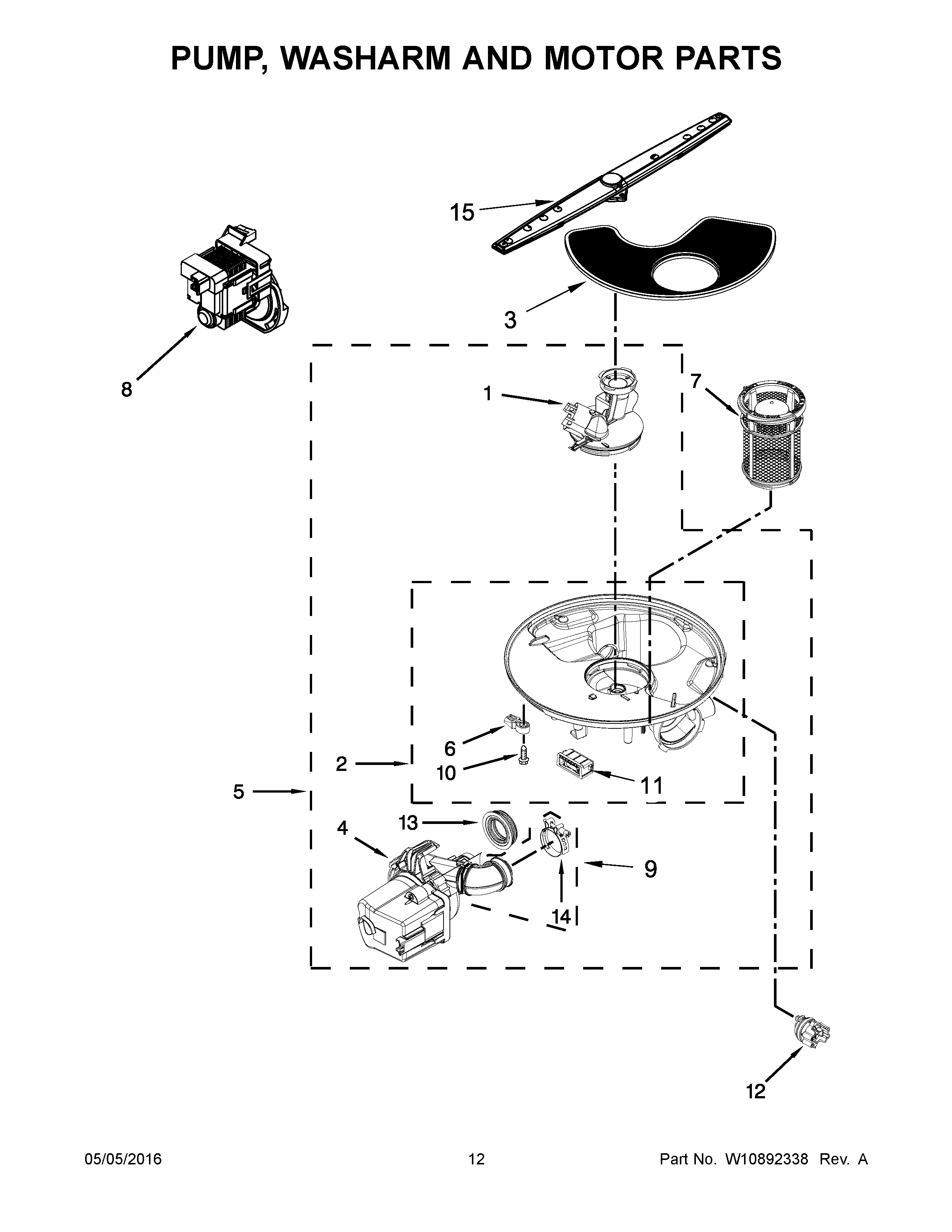

WDP340PAFB0 07 – PUMP, WASHARM AND MOTOR PARTS

WDP340PAFB0 07 – PUMP, WASHARM AND MOTOR PARTS

Written by

in

WDP340PAFB0 07 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1WPW10455271 Whirlpool Cover
2WPW10482462 Whirlpool Dishwasher Sump Assembly
3WPW10463906 Whirlpool Dishwasher Screen Filter Cover
4WASH PUMP
5PUMP&MOTOR
6WPW10372113 Whirlpool Dishwasher Sump Tab
7W10872845 Whirlpool Dishwasher Filter Cup Trap
8W10876537 Whirlpool Dishwasher Drain Pump
9W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
10WPW10348407 Whirlpool Dishwasher Screw
11W11243394 Whirlpool Dishwasher Support
12W11084121 Whirlpool Sensor Turbidity
13WPW10538166 Whirlpool Grommet Pump
14W10789434 Whirlpool Dishwasher Hose Clamp
15ARM-SPRAY
