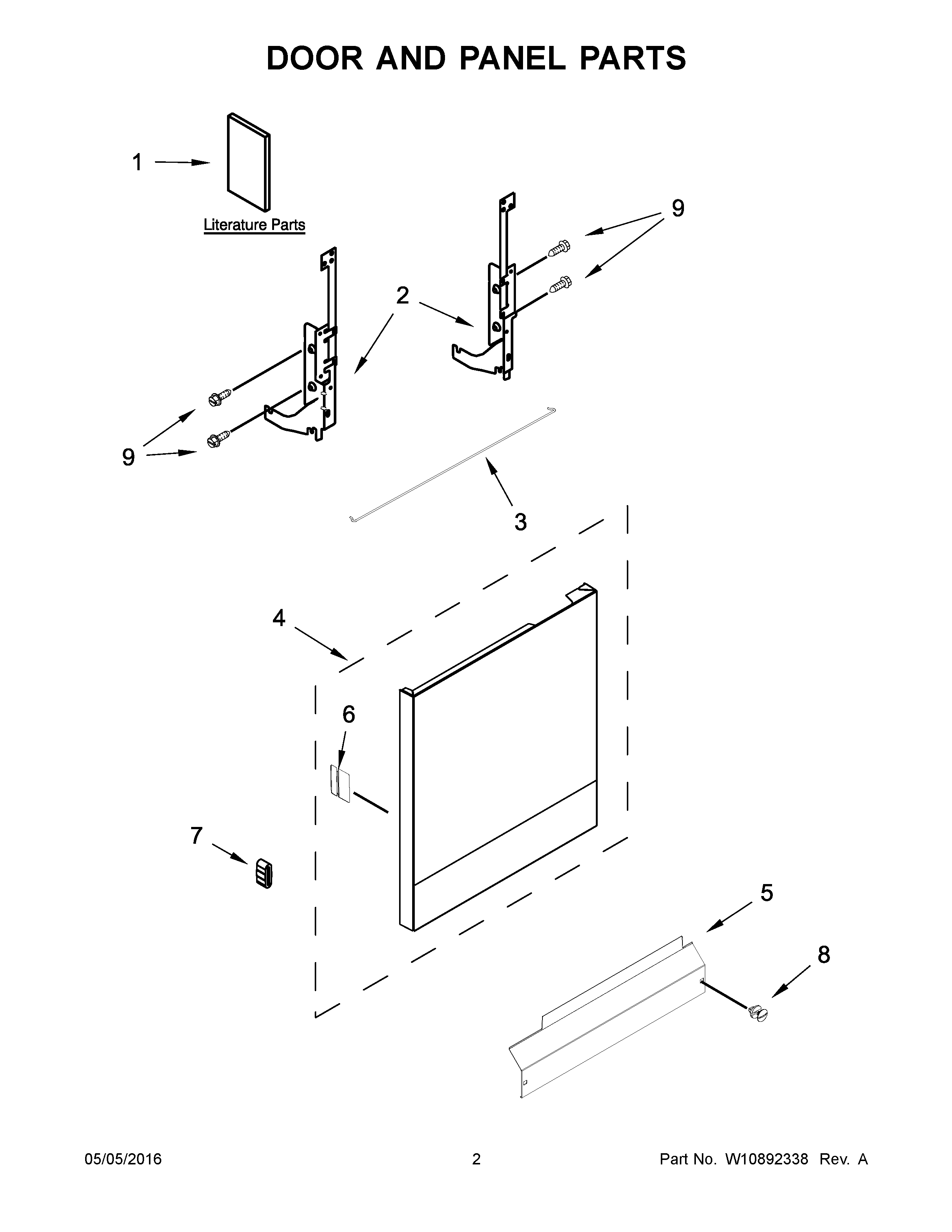

WDP340PAFW0 02 – DOOR AND PANEL PARTS

WDP340PAFW0 02 – DOOR AND PANEL PARTS

Written by

in

WDP340PAFW0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1BUSE & CARE GUIDE
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
1INSTRUCTIONS, INSTALLATION
2W11613573 Whirlpool Door Hinge
2AW11613572 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
5W10441003 Whirlpool Dishwasher Panel
6W10255097 Whirlpool Dishwasher Protector
7WP8268961 Whirlpool Friction Pad
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9WP489069 Whirlpool Compactor Screw
10WPW10109200 Whirlpool Screw
