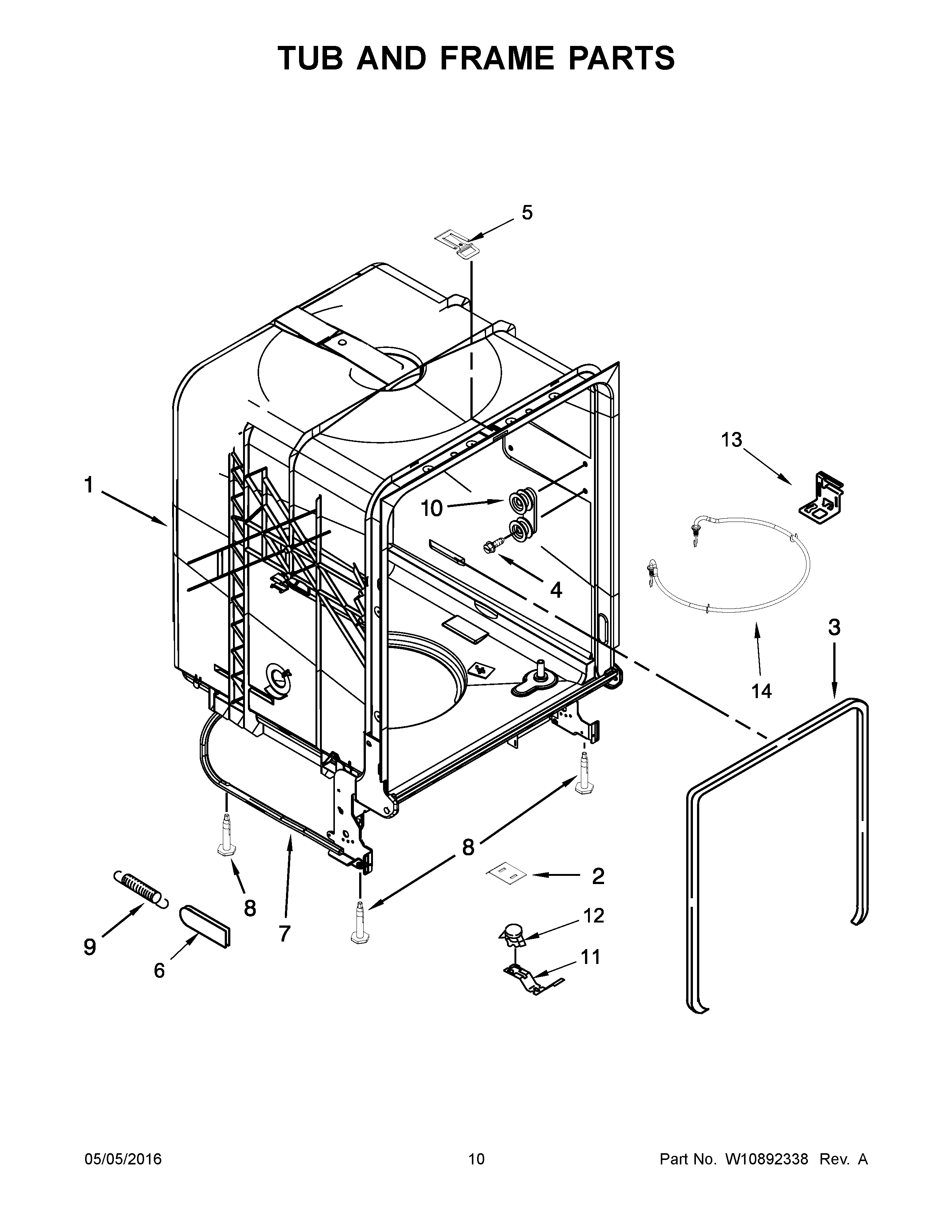

WDP340PAFW0 06 – TUB AND FRAME PARTS

WDP340PAFW0 06 – TUB AND FRAME PARTS

Written by

in

WDP340PAFW0 06 – TUB AND FRAME PARTS

Products

PositionProduct
1W10266934 Whirlpool Dishwasher Tub
2W10321574 Whirlpool Dishwasher Shield
3GASKET
4W10817436 Whirlpool Screw
5WP8580309 Whirlpool Dishwasher Strike
6WP8268990 Whirlpool Dishwasher Door Spring Bushing
7WPW10271695 Whirlpool Dishwasher Support
88193716 Whirlpool Leveling Leg
9WPW10337934 Whirlpool Spring Assembly
10WP8270016 Whirlpool Dishwasher Tub Wheel
11W10539489 Whirlpool Dishwasher Bracket-Stat
12WP661566 Whirlpool High Limit Thermostat
13W11027055 Whirlpool Dishwasher Heater Support
14W10518394 Whirlpool Dishwasher Heating Element
