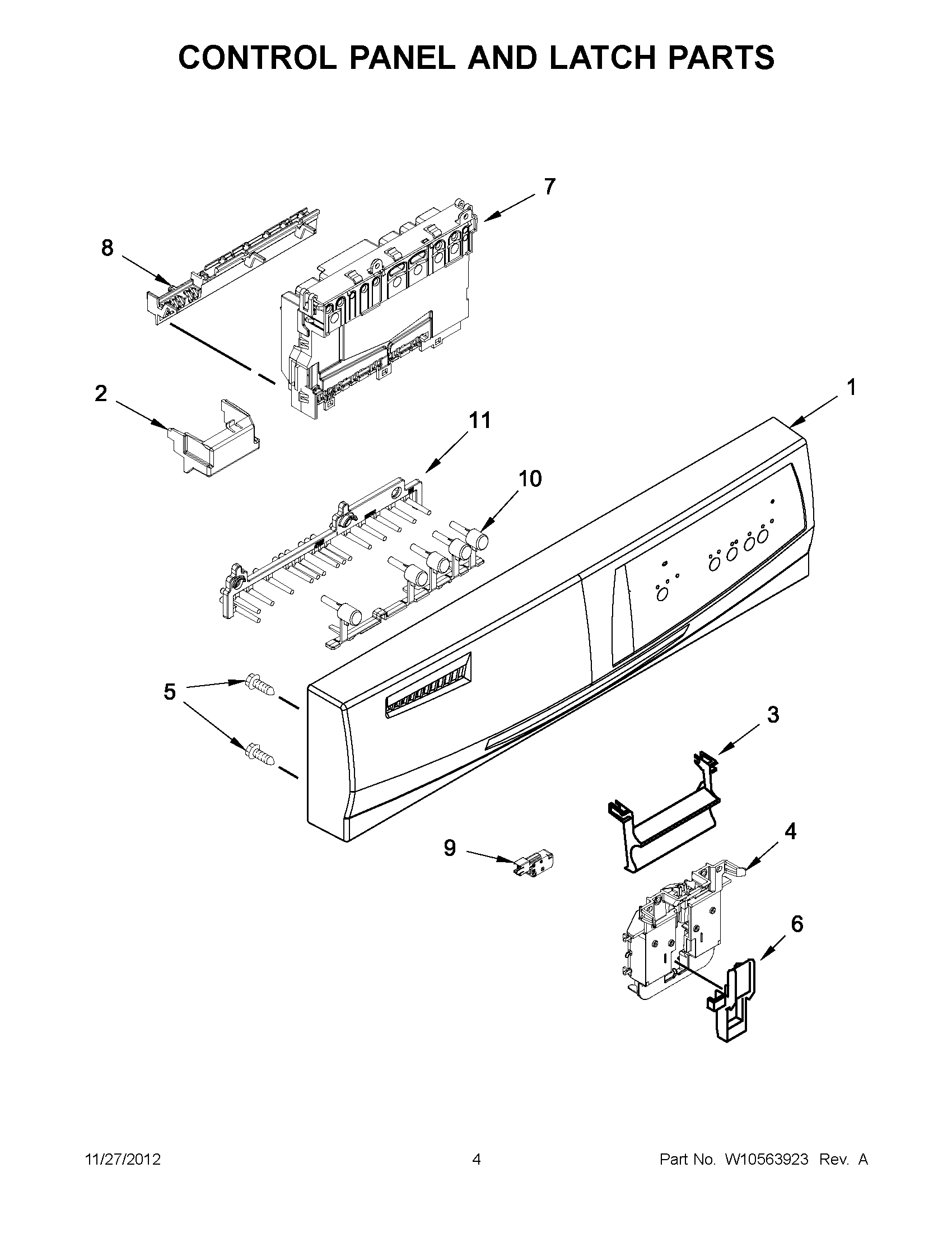

WDP350PAAB1 02 – CONTROL PANEL AND LATCH PARTS

WDP350PAAB1 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDP350PAAB1 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (INCLUDES INSERT AND VENT GASKET) (BLACK)
1W10551668 Whirlpool Dishwasher Console
2W10783730 Whirlpool Dishwasher Connector
3WP8534984 Whirlpool Dishwasher Handle
3WP8534985 Whirlpool Dishwasher Handle
4BOLT-LATCH
5WPW10348413 Whirlpool Dishwasher Screw
6WP8524472 Whirlpool Dishwasher Door Latch Actuator
7CNTRL-ELEC(DISHWASH)
8WPW10372484 Whirlpool Dishwasher Brace
9WPW10274880 Whirlpool Switch
10WPW10274840 Whirlpool Dishwasher Button
11W10854407 Whirlpool Dishwasher Guide
