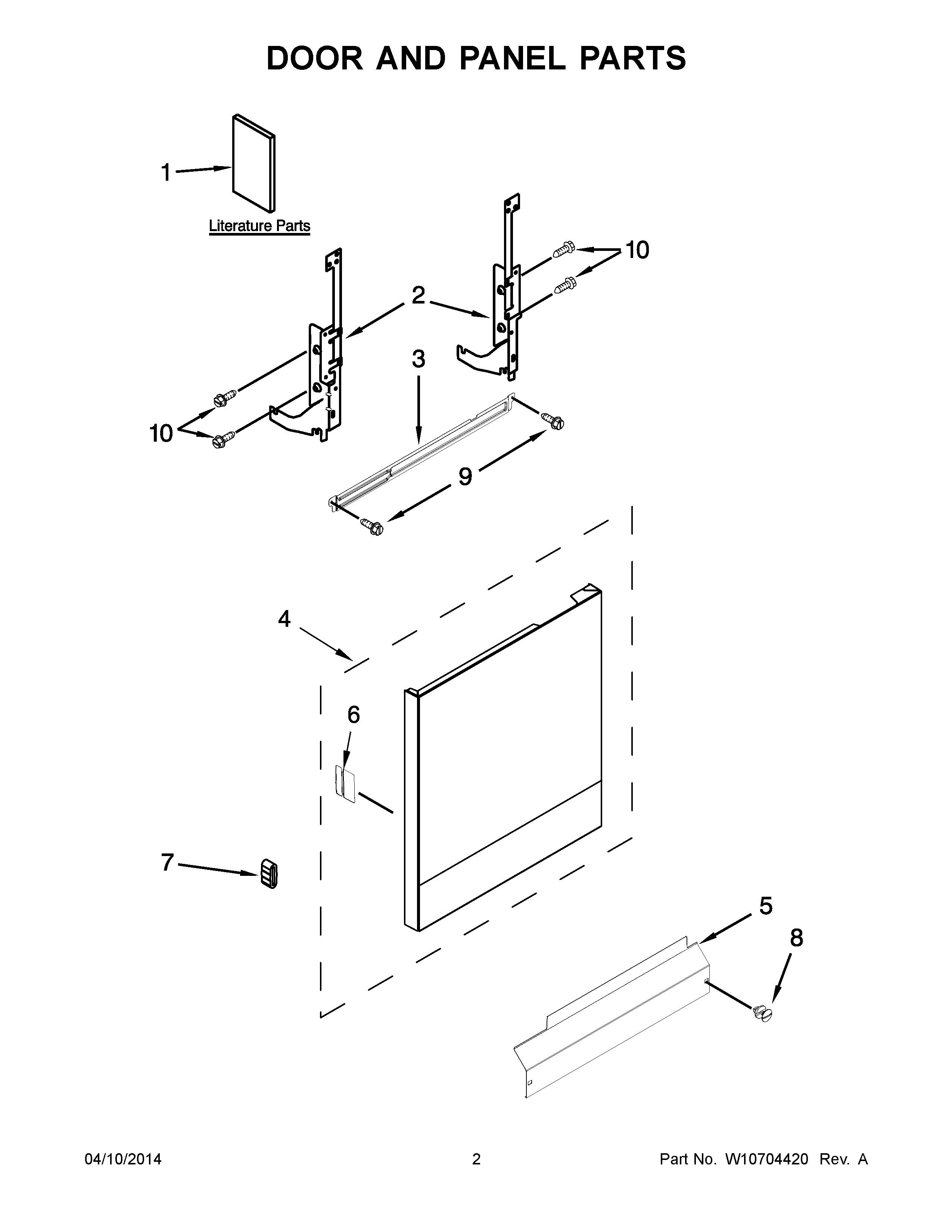

WDP350PAAB4 02 – DOOR AND PANEL PARTS

WDP350PAAB4 02 – DOOR AND PANEL PARTS

Written by

in

WDP350PAAB4 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1USE & CARE GUIDE
1TECH SHEET, FRENCH
1INSTRUCTIONS, INSTALLATION
1TECH SHEET, ENGLISH
2W11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10299778 Whirlpool Dishwasher Panel
4PANEL FRONT (INCLUDES No.10) (BLACK)
5W10441003 Whirlpool Dishwasher Panel
6W10255097 Whirlpool Dishwasher Protector
7WP8268961 Whirlpool Friction Pad
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9WP489069 Whirlpool Compactor Screw
10WPW10109200 Whirlpool Screw
