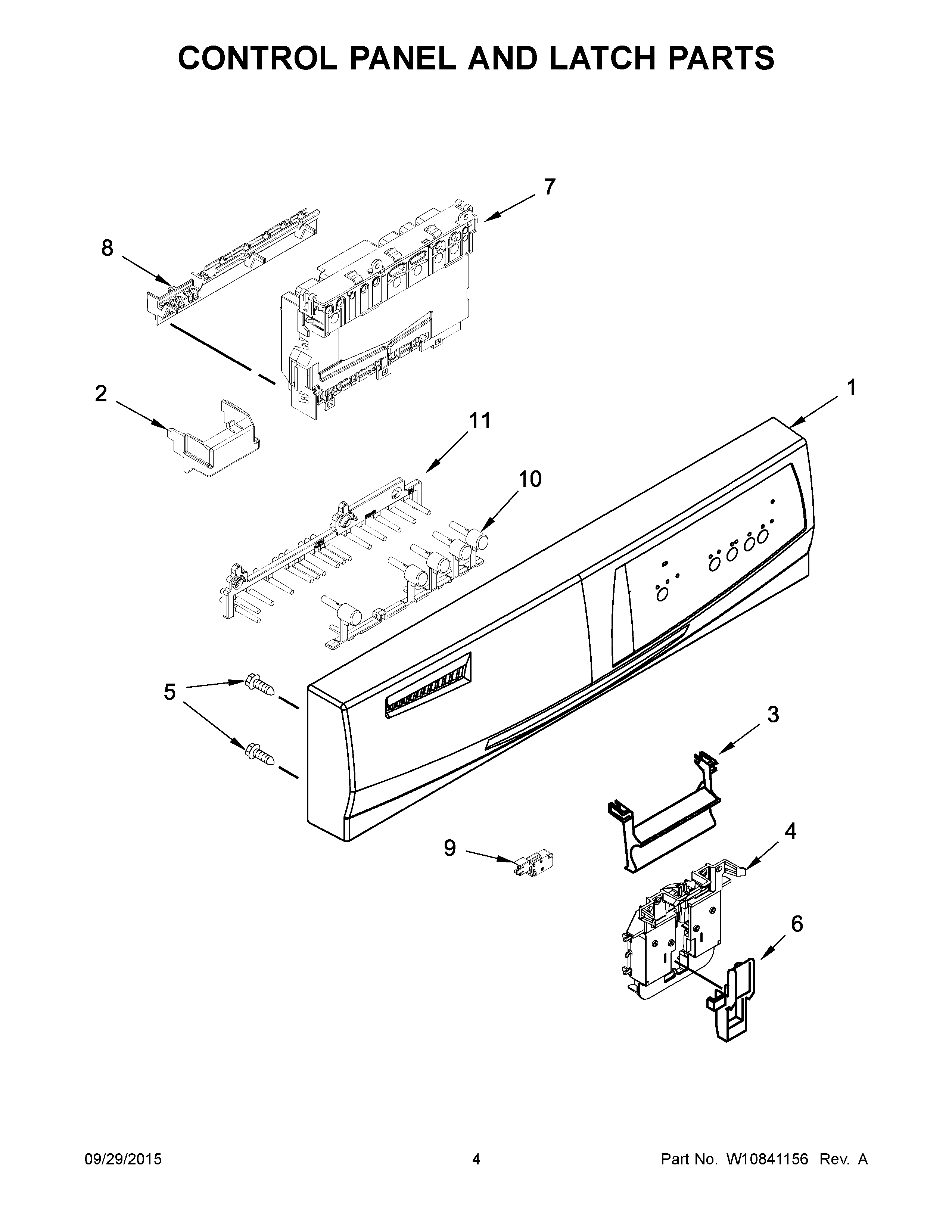

WDP350PAAB6 03 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	CONSOLE ASSEMBLY (INCLUDES INSERT & VENT GASKET) (BLACK)
1A	W10551668 Whirlpool Dishwasher Console
2	W10783730 Whirlpool Dishwasher Connector
3A	WP8534985 Whirlpool Dishwasher Handle
3	WP8534984 Whirlpool Dishwasher Handle
4	BOLT-LATCH
5	WPW10348413 Whirlpool Dishwasher Screw
6	WP8524472 Whirlpool Dishwasher Door Latch Actuator
7	W10906429-includeCORE Whirlpool W10906429 Dishwasher Electronic Control Board
8	WPW10372484 Whirlpool Dishwasher Brace
9	WPW10274880 Whirlpool Switch
10	WPW10274840 Whirlpool Dishwasher Button
11	W10854407 Whirlpool Dishwasher Guide
