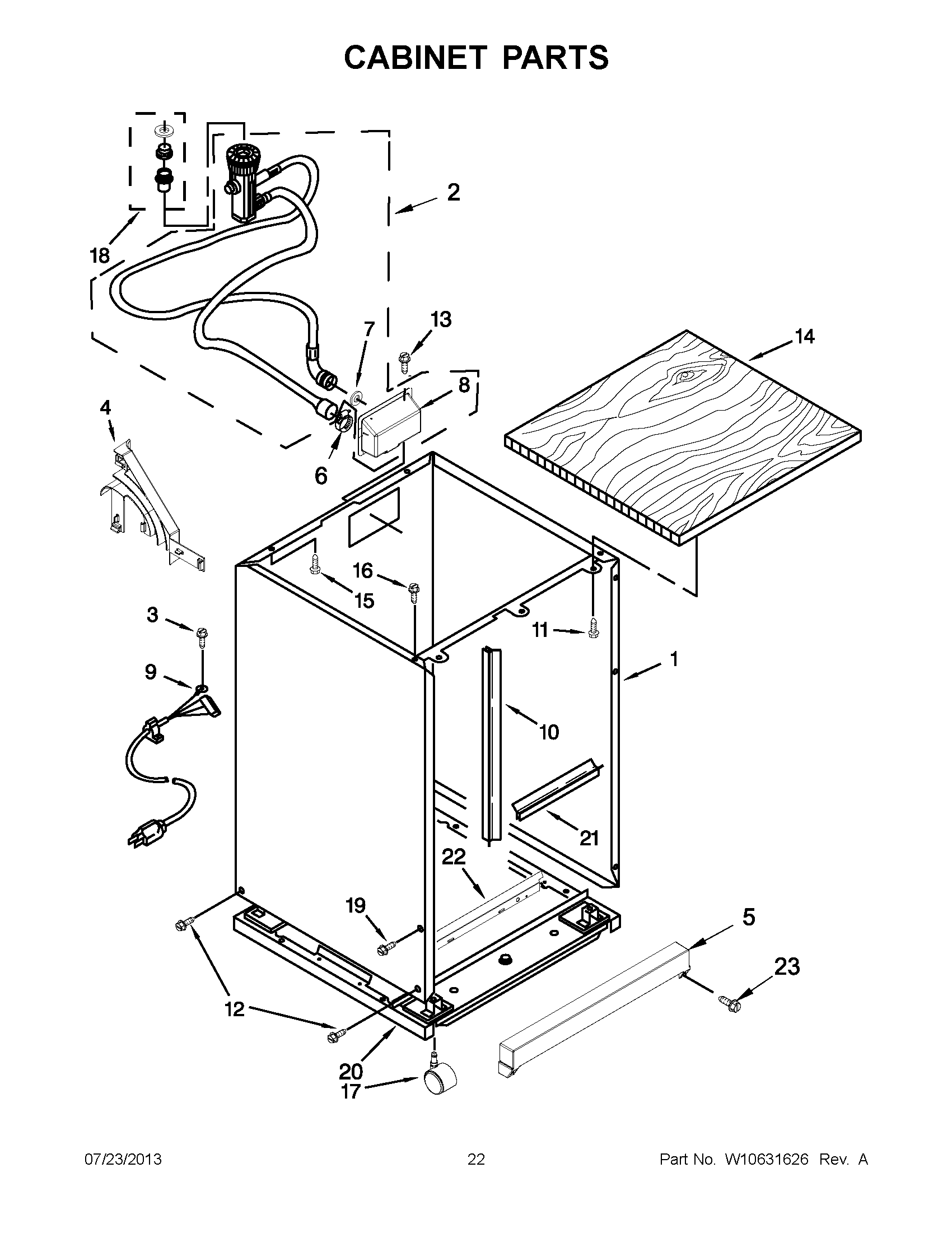

WDP350PAAW3 11 – CABINET PARTS

Products

Position	Product
1	W10356268 Whirlpool Dishwasher Shell
1	W10356269 Whirlpool Dishwasher Shell
2	FIL&DRNHOS
3	WP3400892 Whirlpool Dishwasher Screw
4	3378109 Whirlpool Dishwasher Cushion
5	W11676533 Whirlpool Dishwasher Control Board Assembly
5	W10270155 Whirlpool Dishwasher Chopper Assembly
6	WP596669 Whirlpool Hose Clamp
7	WASHER
8	W10219673 Whirlpool Dishwasher Housing
9	W11553226 Whirlpool Dishwasher Power Cord
10	W10219682 Whirlpool Dishwasher Protector
11	WP3373329 Whirlpool Dishwasher Screw
12	Screw
13	SCREW
14	WP3373199 Whirlpool Dishwasher Top Panel
15	SCREW
16	302251 Whirlpool Dishwasher Screw
17	WP8559933 Whirlpool Caster
18	WPW10254672 Whirlpool Faucet Adapter
19	WPW10213953 Whirlpool Screw
20	FRAME, ASSEMBLY
21	W10254751 Whirlpool Protector
22	W10328716 Whirlpool Support
23	W10001330 Whirlpool Screw Assembly
