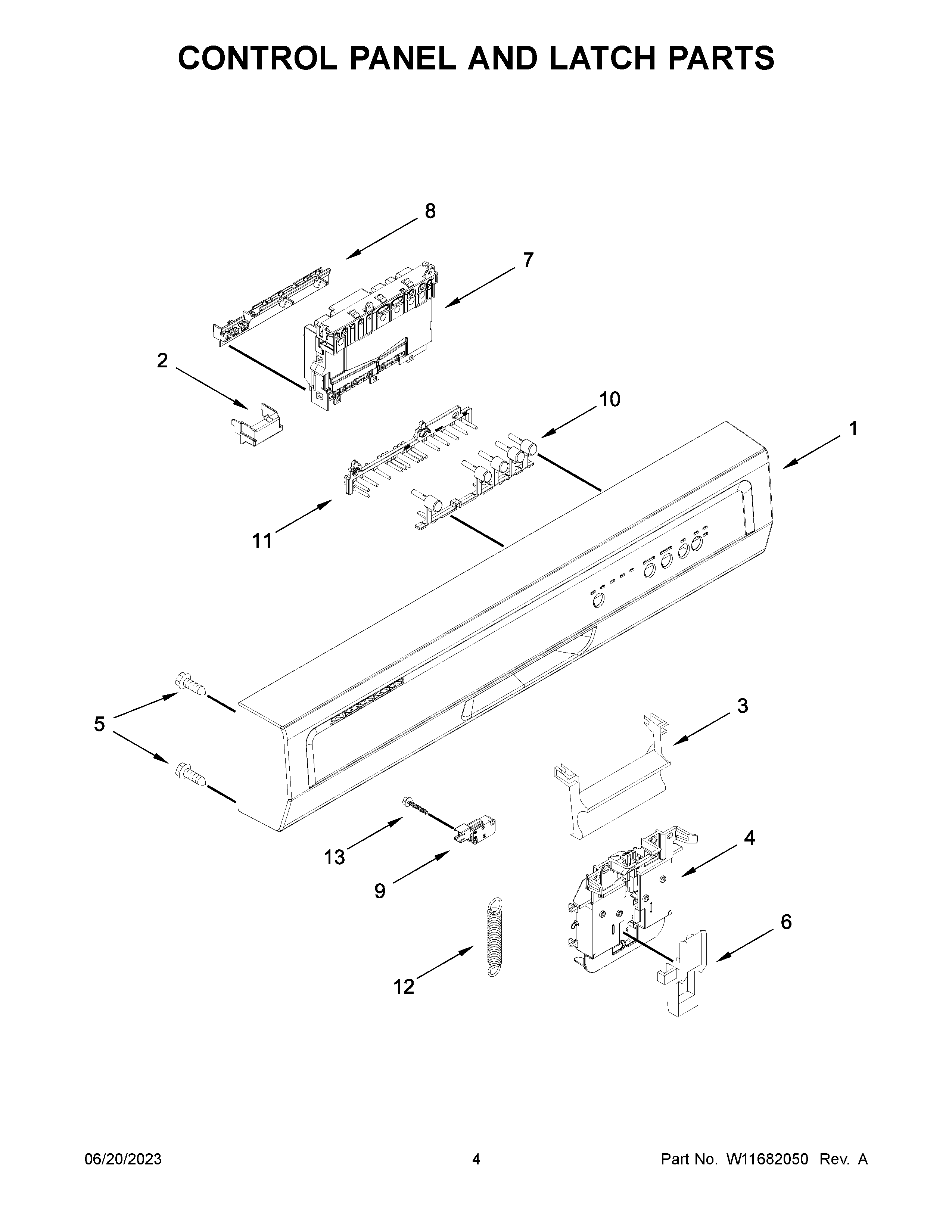

WDP370PAHW2 03 – CONTROL PANEL AND LATCH PARTS

WDP370PAHW2 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDP370PAHW2 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W11093639 Whirlpool Dishwasher Console
1AW11093640 Whirlpool Dishwasher Console
3AW10716686 Whirlpool Dishwasher Handle
3W11684608 Whirlpool Handle Assembly
4BOLT-LATCH
5WPW10348409 Whirlpool Screw
6WP8524471 Whirlpool Dishwasher Actuator
7W11087227-includeCORE Whirlpool W11087227 Dishwasher Electronic Control Board + Core
8W11305293 Whirlpool Dishwasher Electronic Control Board
9WPW10274880 Whirlpool Switch
10W10854044 Whirlpool Dishwasher Button
11W10913666 Whirlpool Dishwasher Guide
12W10678341 Whirlpool Dishwasher Spring
13WP3400412 Whirlpool Dishwasher Screw
