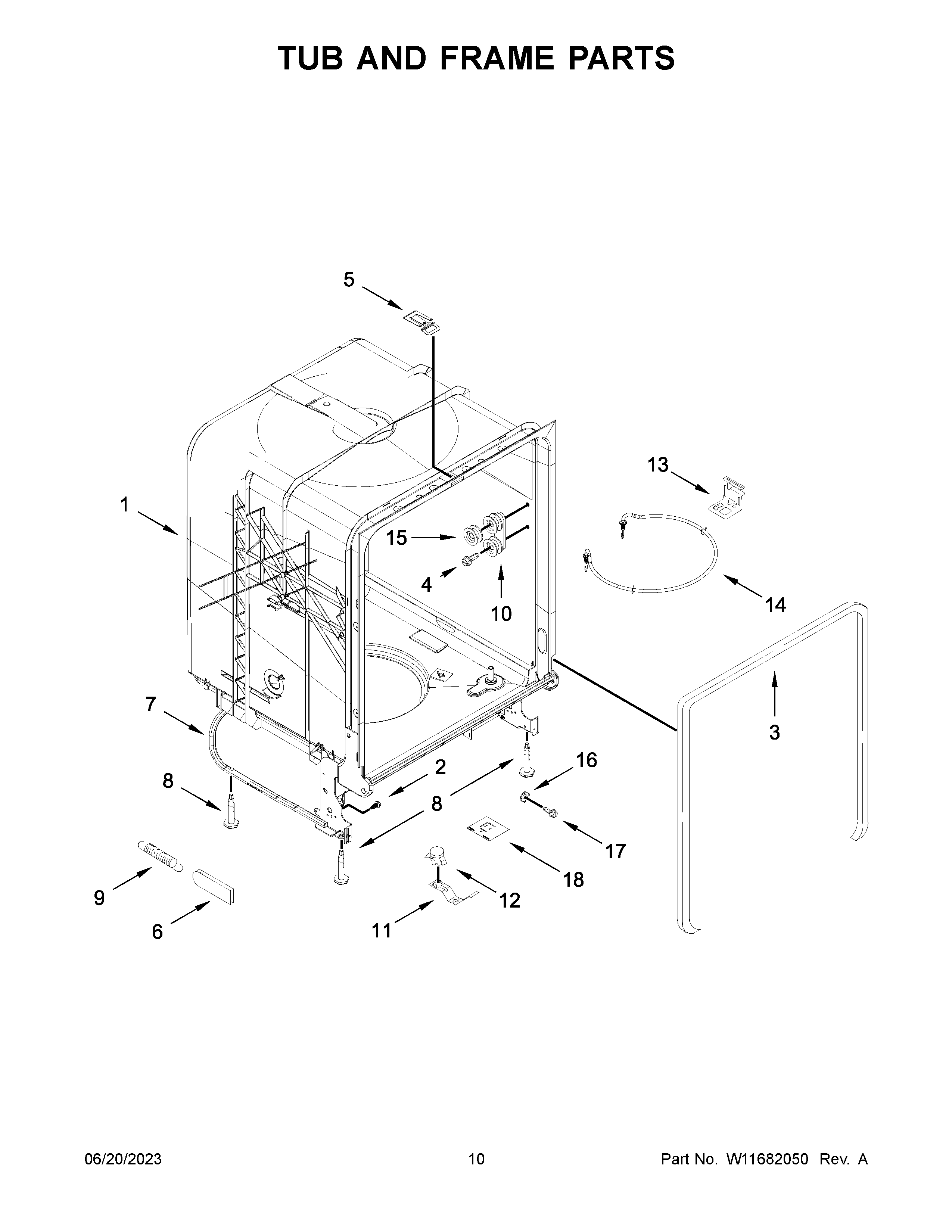

WDP370PAHW2 06 – TUB AND FRAME PARTS

WDP370PAHW2 06 – TUB AND FRAME PARTS

Written by

in

WDP370PAHW2 06 – TUB AND FRAME PARTS

Products

PositionProduct
1TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2WPW10277003 Whirlpool Screw
3SEAL, TUB
4W10817436 Whirlpool Screw
5WP8580309 Whirlpool Dishwasher Strike
6WP8268990 Whirlpool Dishwasher Door Spring Bushing
7BOTTOM SUPPORT
88193716 Whirlpool Leveling Leg
9WPW10337934 Whirlpool Spring Assembly
10WP8575897 Whirlpool Dishwasher Tub Wheel
11W10539489 Whirlpool Dishwasher Bracket-Stat
12WP661566 Whirlpool High Limit Thermostat
13W11027055 Whirlpool Dishwasher Heater Support
14W10518394 Whirlpool Dishwasher Heating Element
158194001 Whirlpool Dishwasher Door Balance Link Kit
16WP3378128 Whirlpool Dishwasher Washer
17WP3400014 Whirlpool Dishwasher Screw
18SHIELD
