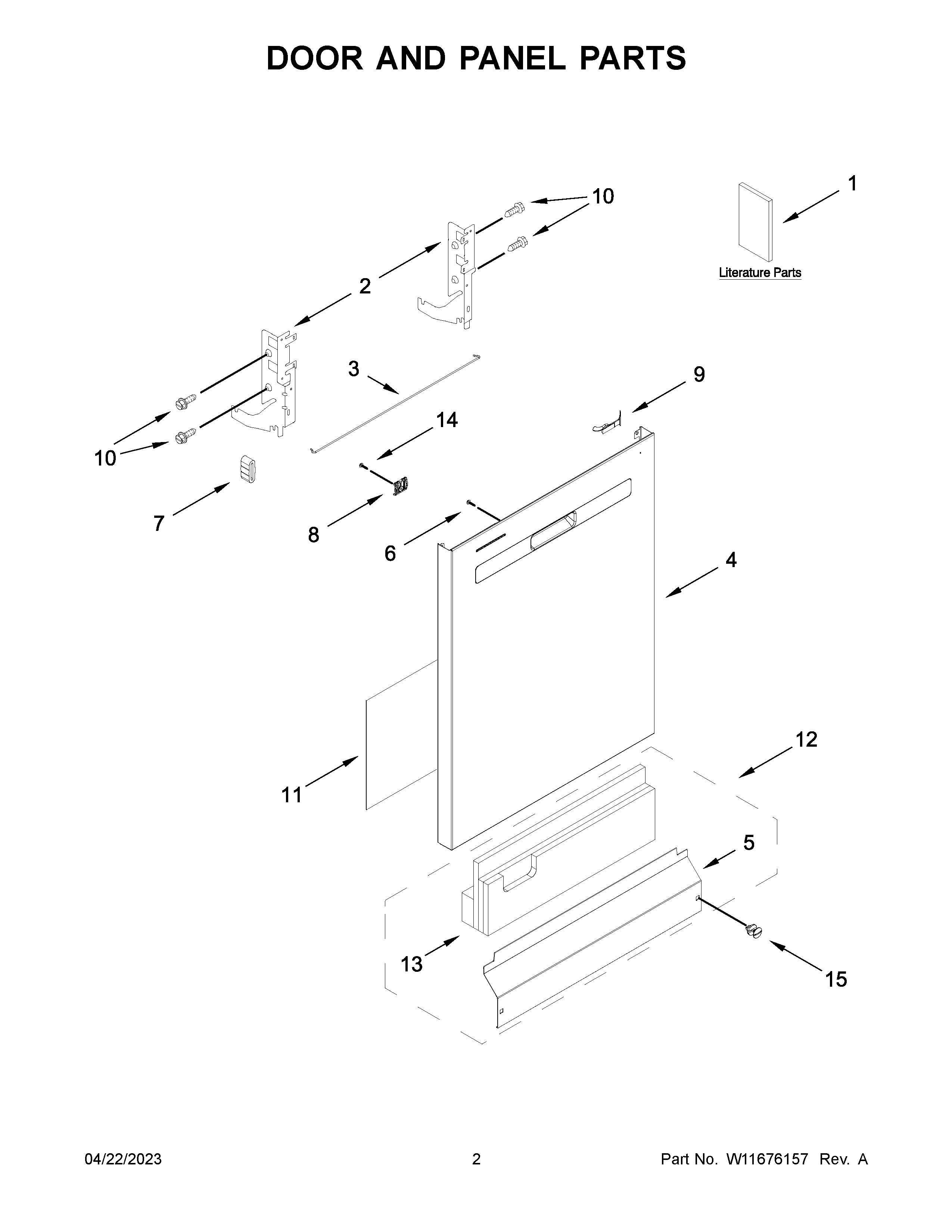

WDP540HAMB2 02 – DOOR AND PANEL PARTS

WDP540HAMB2 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1BTECH SHEET
1AOWNERS MANUAL
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4BW11613483 Whirlpool Panel
4AW11613481 Whirlpool Panel
4W11613482 Whirlpool Panel Assembly
5AWPW10441007 Whirlpool Dishwasher Panel
5PANEL
6WP9741232 Whirlpool Dishwasher Screw
7WP8268961 Whirlpool Friction Pad
8W10692757 Whirlpool Dishwasher Nut Assembly
9W11504190 Whirlpool Indicator Light
10WP3400071 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12W10827631 Whirlpool Toe Panel
12AW10827632 Whirlpool Dishwasher Control Panel
13SHIELD
14WPW10213953 Whirlpool Screw
15AWPW10503549 Whirlpool Dishwasher Retainer Clip
15WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
