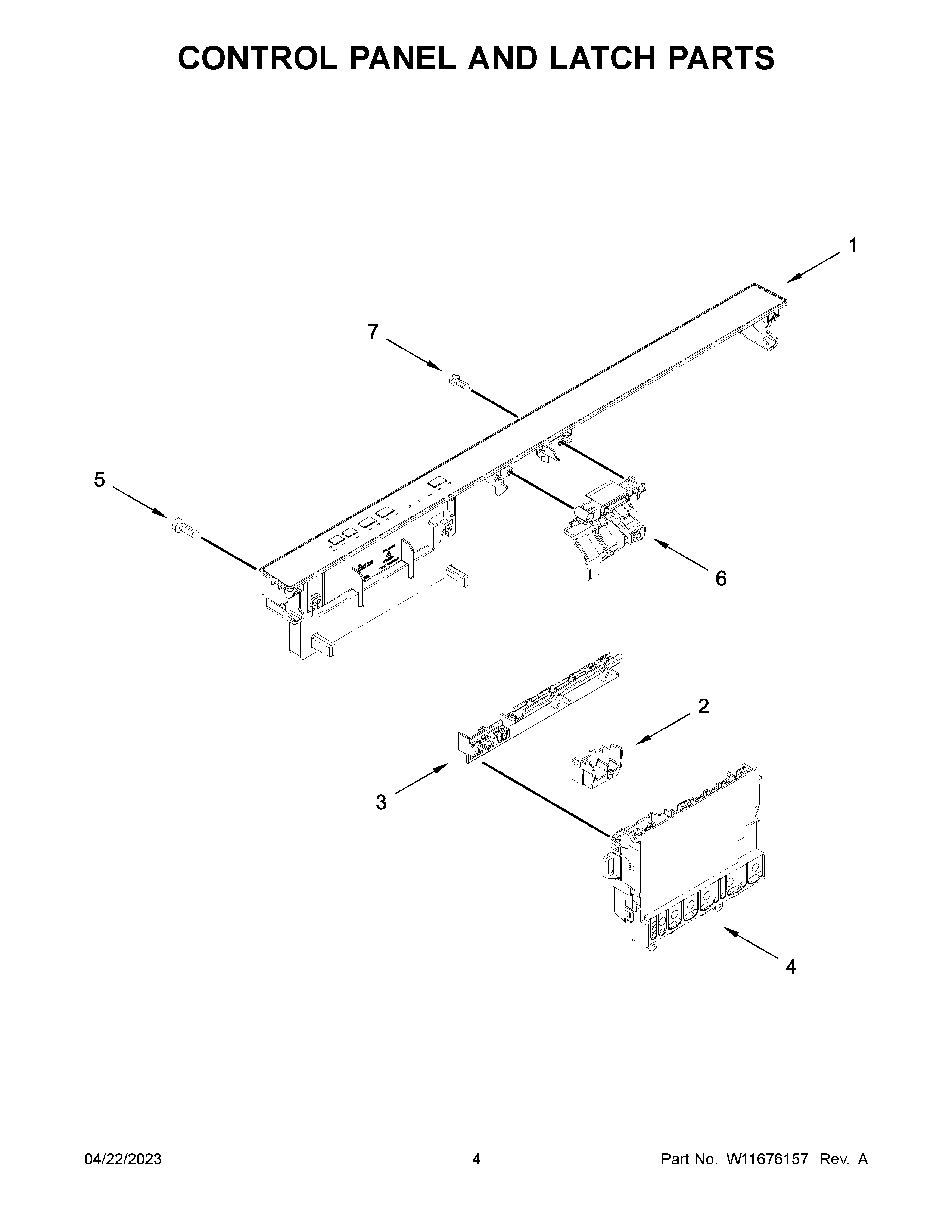

WDP540HAMW2 03 – CONTROL PANEL AND LATCH PARTS

WDP540HAMW2 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDP540HAMW2 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W11612307 Whirlpool Dishwasher Console Assembly
1AW11612309 Whirlpool Console
3W11305293 Whirlpool Dishwasher Electronic Control Board
4W11637581-includeCORE Whirlpool W11637581 Washer Electronic Control Board + Core
5W11096645 Whirlpool Screw
6WPW10653840 Whirlpool Door Latch
7WPW10177098 Whirlpool Dishwasher Screw
