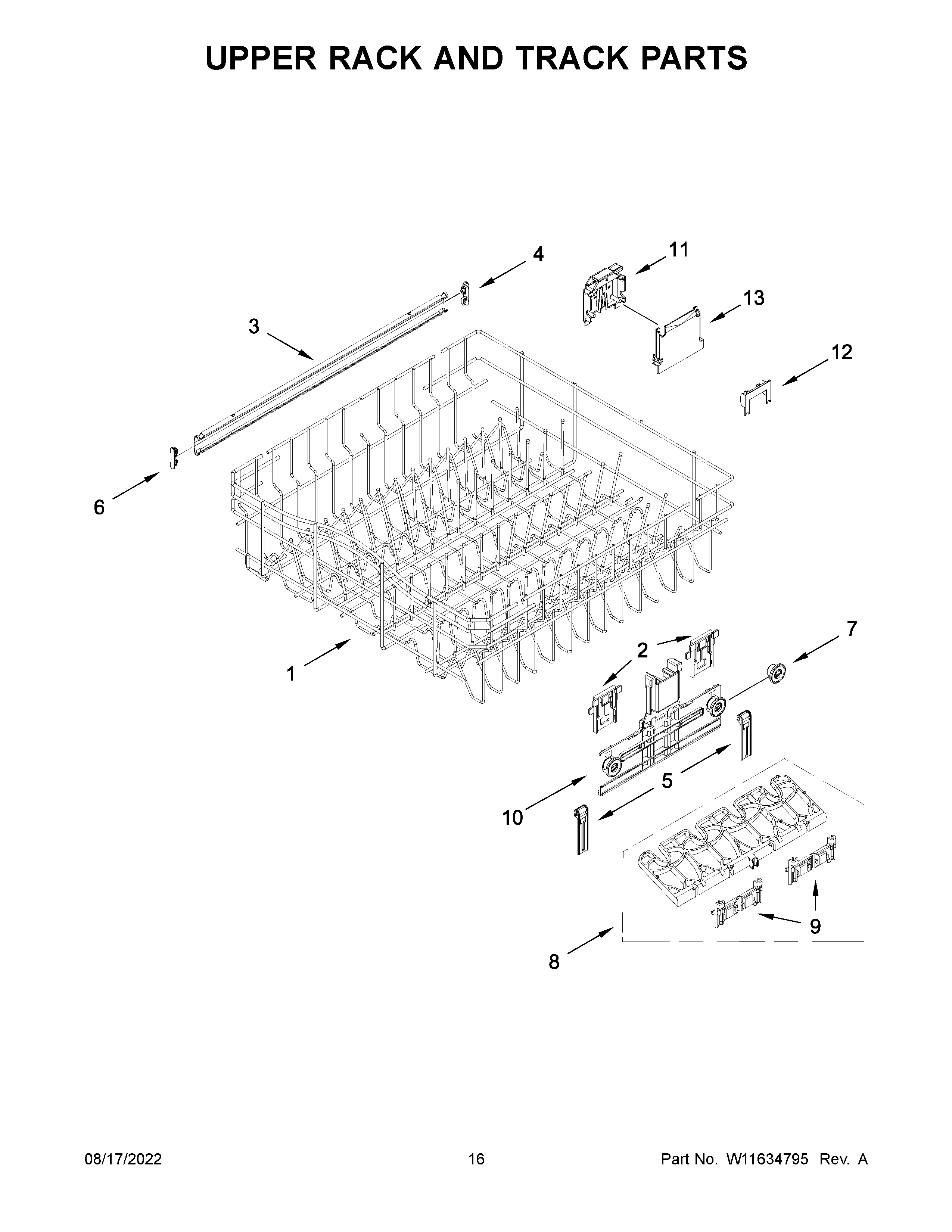

WDP560HAMW0 09 – UPPER RACK AND TRACK PARTS

WDP560HAMW0 09 – UPPER RACK AND TRACK PARTS

Written by

in

WDP560HAMW0 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1WPW10350382 Whirlpool Dishwasher Dishrack
2WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
3WP3385089 Whirlpool Track
4WP8565925 Whirlpool Slide Rail Stop
5WPW10195839 Whirlpool Dishwasher Rack Adjuster
7WP3385088 Whirlpool Dishwasher Upper Wheel
8WPW10082649 Whirlpool Dishwasher Cup Shelf
9WPW10082848 Whirlpool Clip
10W10712395 Whirlpool Dishwasher Dishrack Adjuster
11WPW10195372 Whirlpool Housing
11AWPW10195373 Whirlpool Housing
12WPW10250160 Whirlpool Clip
13COVER
