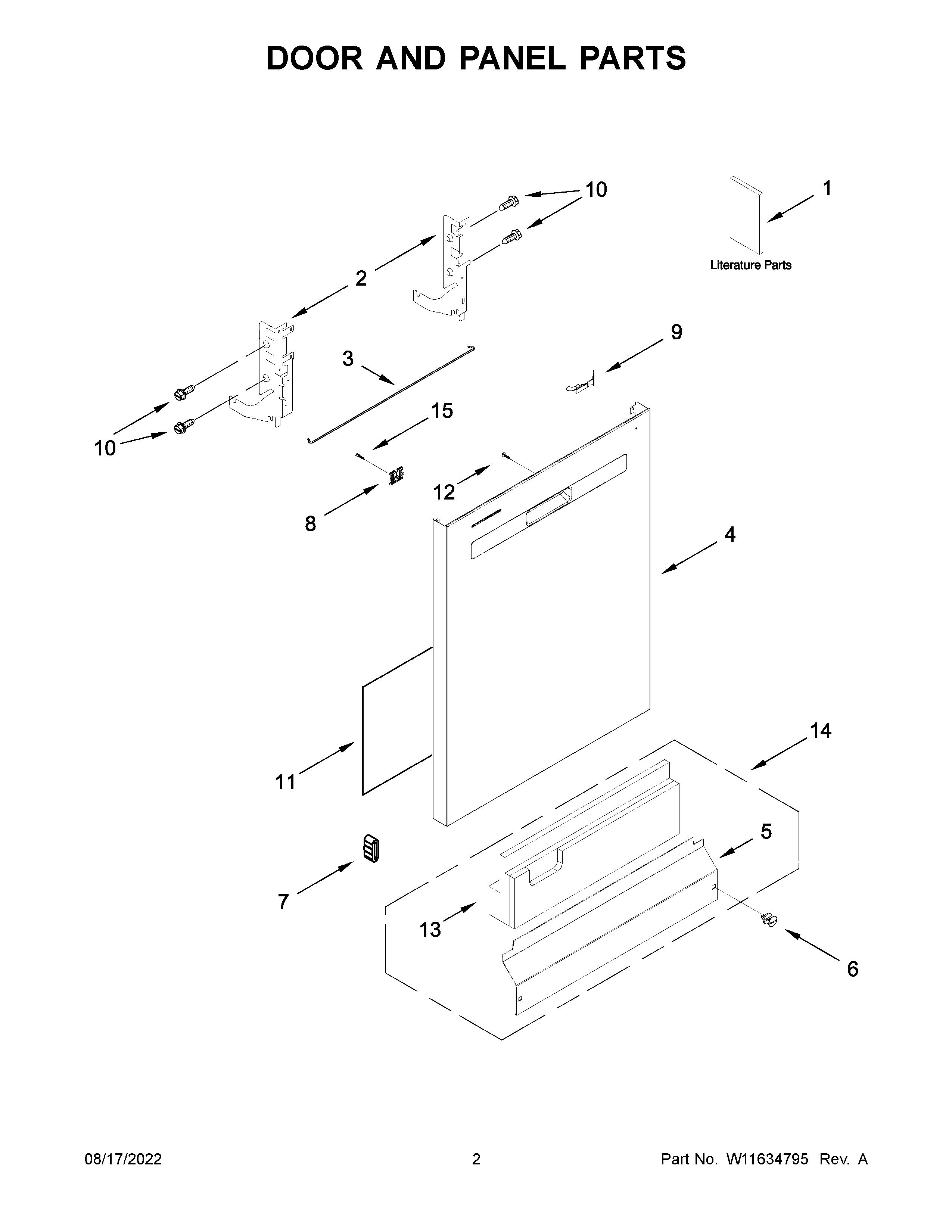

WDP560HAMZ0 02 – DOOR AND PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1B	TECH SHEET
1A	OWNERS MANUAL
2	W11612302 Whirlpool Dishwasher Door Hinge
2A	W11612303 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4B	W11613483 Whirlpool Panel
4A	W11613481 Whirlpool Panel
4	W11613482 Whirlpool Panel Assembly
5	PANEL
5A	WPW10441007 Whirlpool Dishwasher Panel
6A	WPW10503549 Whirlpool Dishwasher Retainer Clip
6	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
7	WP8268961 Whirlpool Friction Pad
8	W10692757 Whirlpool Dishwasher Nut Assembly
9	W11504190 Whirlpool Indicator Light
10	WP3400071 Whirlpool Screw
11	W11126003 Whirlpool Dishwasher Insulation Pad
12	WP9741232 Whirlpool Dishwasher Screw
13	SHIELD
14A	W10827632 Whirlpool Dishwasher Control Panel
14	W10827631 Whirlpool Toe Panel
15	WPW10213953 Whirlpool Screw
