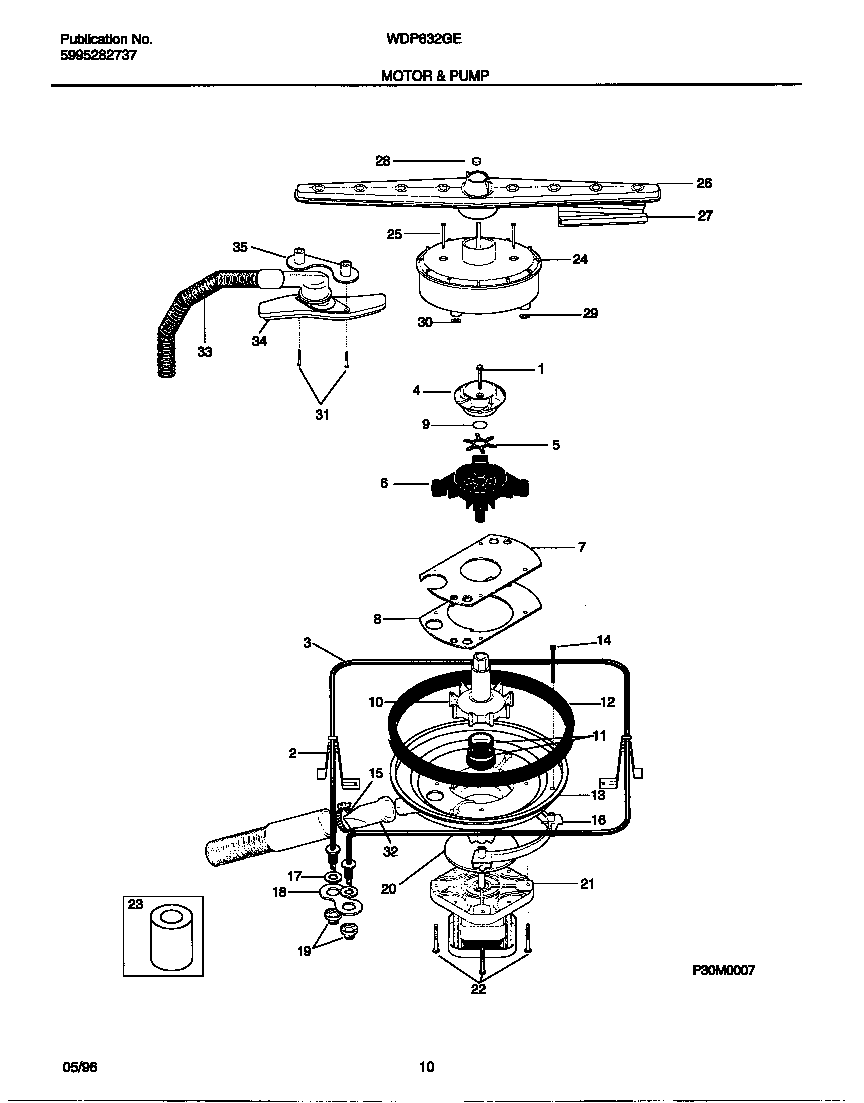

WDP632GER0 06 – MOTOR & PUMP

Products

Position	Product
*86367	WCI 154103701
1	WCI 154188901
2	HEATER BRACKET
2	SCREW-BRACKET (2)
3	154106202 Frigidaire Dishwasher Heater Nut
4	WCI 5300809921
5	WCI 5300809006
7	5300809920 Frigidaire Dishwasher Blade Assembly
8	WCI 154200201
12	5300809918 Frigidaire Dishwasher Upper Impeller
13	WCI 5300809007
14	WCI 5303943122
18	WCI 5300809984
19	WCI 154119401
20	WCI 154126401
23	SPRAY ARM NUT
24	LOWER SPRAY ARM ASSY
27	WCI 5300806353
28	WCI 5300809909
29	SCREW-10 X 2 7/8``
30	WCI 5303943124
31	WCI 5300809938
32	WCI 154119301
33	WASHER
34	WCI 154064901
35	WCI 154200901
37	WCI 5300803923
39	WCI 5300803903
40	154611101 Frigidaire Dishwasher Clamp
42	5300809586 Frigidaire Dishwasher Gasket
43	WCI 5300809590
47	WCI 5300809366
48	WCI 5303316032
52	WCI 154207501
