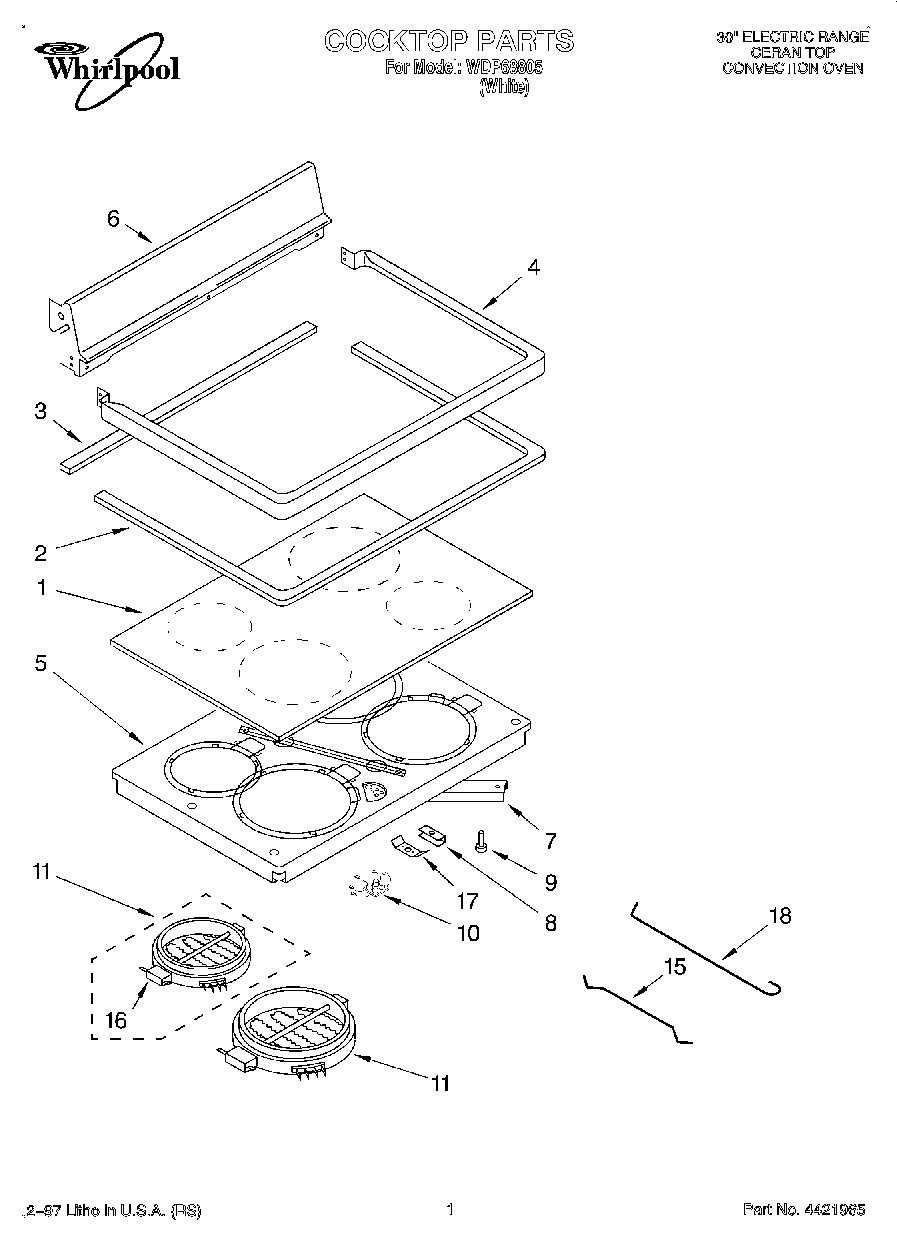

WDP68805 01 – COOKTOP

Products

Position	Product
1	Cooktop, Ceran
2	WP9780939 Whirlpool Cooktop Gasket
3	Rear Gasket
4	Frame, Cooktop (White)
5	Support, Element
6	Back Splash (Screw (4) 10AB x 1/2“)
6	Back Splash (White)
7	Brace, Support
7	Screw (4) 10 x 1/2
8	Support Clip (4)
8	Screw, (4) 10PH-B x 3/4
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	Element, Surface (8“ R.R. 2100W)
11	Element, Surface (7“ R.F. 1700W)
11	Element, Surface (6“ L.R. 1400W)
11	Element, Surface (9“ L.F. 2400W)
15	Rod, Small Ceran Element
16	Limiter, Temp (1700W – RF)
16	Limiter, Temp (2100W – RR)
16	Limiter, Temp. (1400 W – LR)
16	Limiter, Temp. (2400 W – LF)
17	WP9781235 Whirlpool Clip
18	Rod, Large Ceran Element
