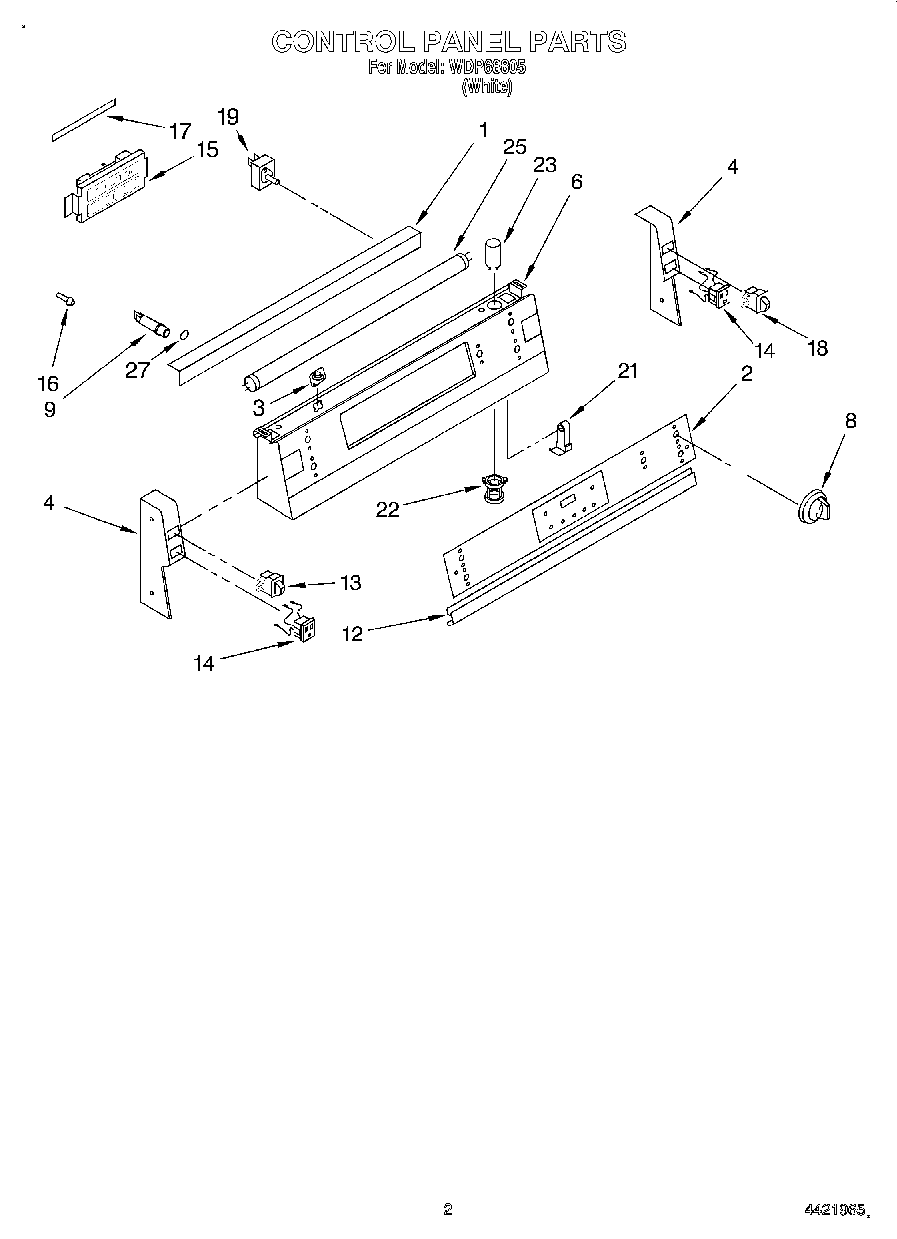

WDP68805 02 – CONTROL PANELadmin2025-04-26T12:46:32+00:00WDP68805 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Lamp Cover |
| 2 | Console-Glass (Control Panel) |
| 3 | Fuse Holder |
| 3 | Screw |
| 3 | Nut (4) |
| 4 | End Cap (Left) |
| 4 | End Cap (Right) |
| 6 | Panel, Control |
| 6 | Panel, Control (Screw, (2) 8 x 3/8) |
| 8 | Knobs, Control |
| 9 | Light, Indicator (Burners) (4) |
| 12 | Trim Strip |
| 13 | Switch, Oven Light |
| 14 | Outlet, Untimed |
| 15 | Oven Control (Timer Assembly) |
| 15 | WP4159387 Whirlpool Compactor Screw |
| 16 | Button, Timer |
| 17 | Top Tape |
| 18 | Switch, Lamp |
| 19 | WP3400882 Whirlpool Screw |
| 19 | Infinite Switch (1800W) |
| 19 | WP9750646 Whirlpool Infinite Switch |
| 21 | Receptacle, Lamp |
| 22 | Starter, Holder |
| 23 | Starter, Light |
| 25 | WP95292 Whirlpool Fluorescent Light Bulb |
| 27 | Seal, Pilot |
