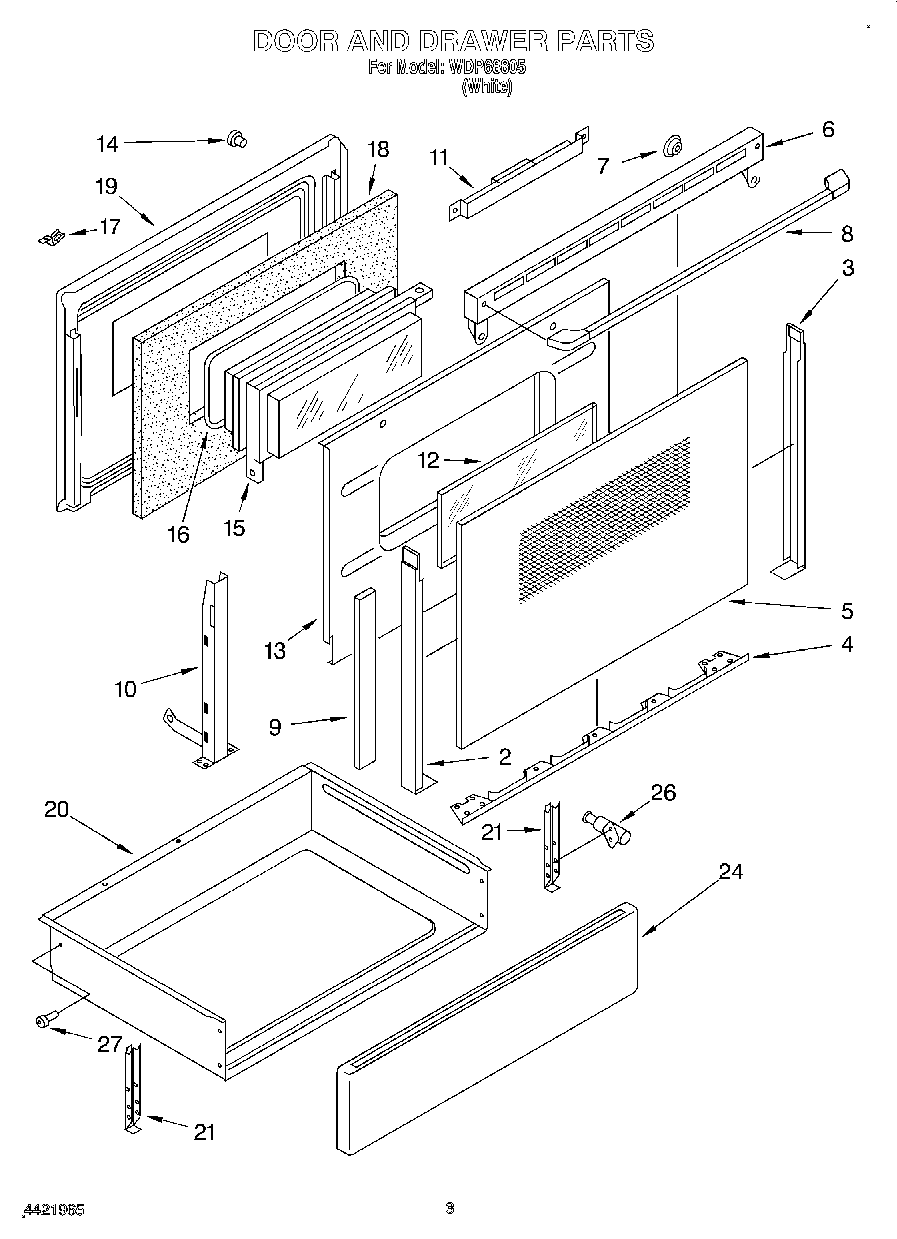

WDP68805 03 – DOOR AND DRAWER

WDP68805 03 – DOOR AND DRAWER

Written by

in

WDP68805 03 – DOOR AND DRAWER

Products

PositionProduct
2Trim, Door-Left (White)
3Trim, Door-Right (White)
4Trim, Door Bottom (White)
5Glass, Door
6Vent, Door (Seal, Door Vent Side)
6Back Splash (Screw (4) 10AB x 1/2“)
6Vent, Door (White)
6Vent, Door (Gasket, Vent)
7Spacer, Door Vent
8Handle, Door (White)
8WPW10001180 Whirlpool Refrigerator Screw
9Gasket, Door Glass
10WP9782033 Whirlpool Door Hinge
11Channel, Heat
11WP4159387 Whirlpool Compactor Screw
12Baffle, Glass
13Shield, Door
14238614 Whirlpool Bumper Hinge
15Window Pack (2)
16Seal, Window
16Retainer, Glass
17Retainer, Glass
18WPW10208653 Whirlpool Insulation
19Liner, Door
20Drawer & Roller
21Screw (4) 10 x 1/2
21Bracket, Drawer
24Front, Drawer (White)
26WPL 9780806
26Latch, Drawer
26WP90296 Whirlpool Clip
27814229 Whirlpool Primary Roller
