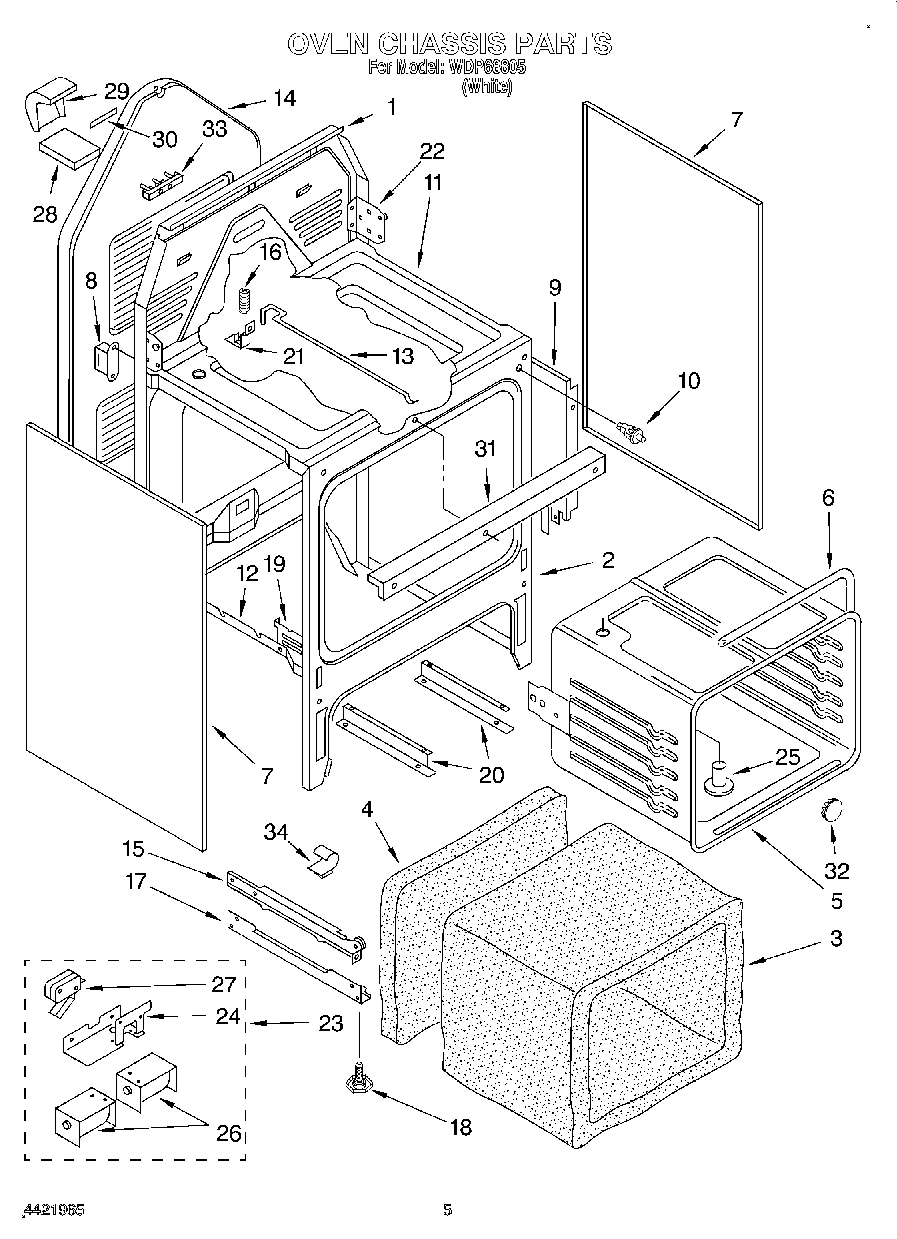

WDP68805 04 – OVEN CHASSIS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket Oven
7	Oven , Side L or R (White)
8	Ballast, Lamp
9	Shield, Insulation
10	Door Switch (oven Light)
11	Screw, (2)
11	Burner Box
12	Oven Bottom
13	Rod, Lock
14	Panel, Rear
15	Drawer Rail, Left
15	Rail, Drawer (Right)
16	Spring, Door Lock
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Receiver (2)
19	Screw (2) 8 x 3/8
20	Support Rail, Pan
21	Bracket, Spring
22	Hinge, Cktp.-Left
22	Hinge, Cktp.-Right
23	Oven Lock Assembly
24	Bracket, Lock
25	Vent Tube
26	Washer (2)
26	Screw (2) 10-32 x 5/16
26	Solenoid
27	Nut (2)
27	Switch, Interlock
27	Screw, (2)
28	Cover, Vent
29	Back, Vent
30	Vent Gasket
31	WP4159387 Whirlpool Compactor Screw
31	Guard, Wire
32	Button, Plug
33	Screw, (2) 10-16 x 1
33	WP8203546 Whirlpool Terminal Block
33	WP112432 Whirlpool Nut Assembly
34	Clip, Wire
