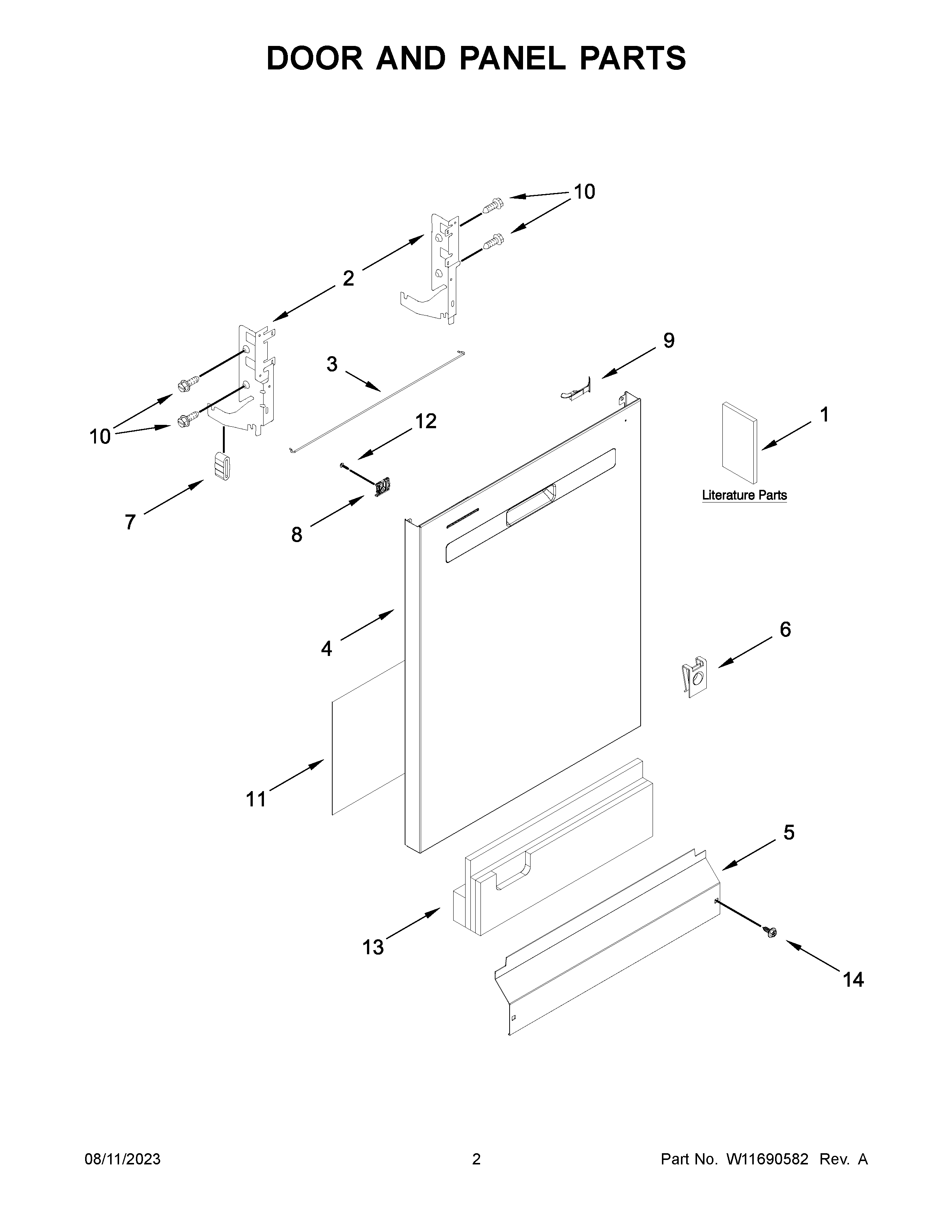

WDP730HAMZ1 02 – DOOR AND PANEL PARTS

WDP730HAMZ1 02 – DOOR AND PANEL PARTS

Written by

in

WDP730HAMZ1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1BTECH SHEET
1AOWNERS MANUAL
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W11613484 Whirlpool Panel
5W10909064 Whirlpool Dishwasher Black Access Panel
6W10910629 Whirlpool Dishwasher Nut
7WP8268961 Whirlpool Friction Pad
8W10692757 Whirlpool Dishwasher Nut Assembly
9W11504190 Whirlpool Indicator Light
10WP3400071 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12WPW10213953 Whirlpool Screw
13SHIELD
14WP302868 Whirlpool Screw
