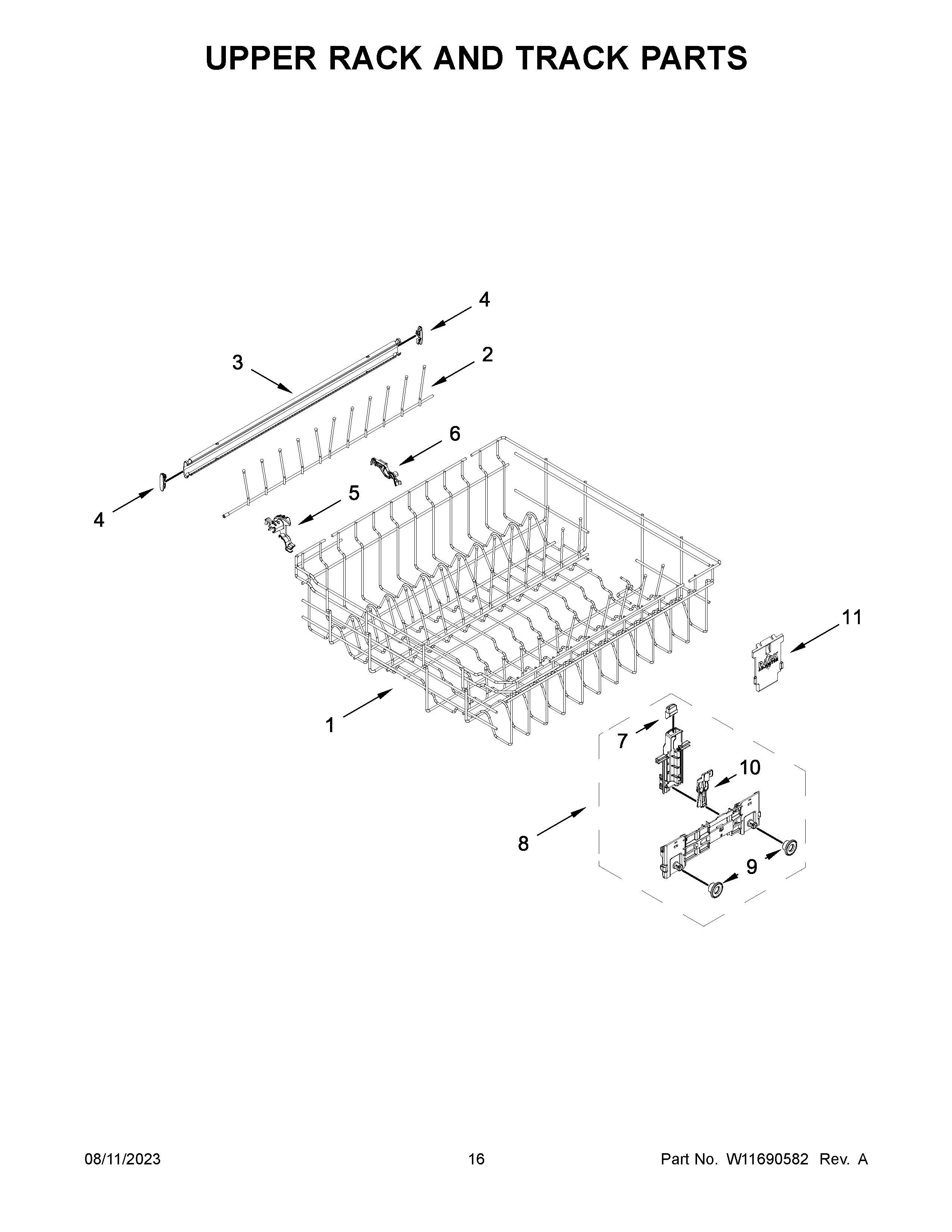

WDP730HAMZ1 09 – UPPER RACK AND TRACK PARTS

WDP730HAMZ1 09 – UPPER RACK AND TRACK PARTS

Written by

in

WDP730HAMZ1 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W11672788 Whirlpool Dish Rack
2W11727974 Whirlpool Tine Row
3WP3385089 Whirlpool Track
4WP8565925 Whirlpool Slide Rail Stop
5W11179794 Whirlpool Clip
6W11627535 Whirlpool Tine Pivot
7W11267702 Whirlpool Positioner Assembly
8W11662350 Whirlpool Adjuster Assembly
8AW11662349 Whirlpool Appliance Adjuster
9WP3385088 Whirlpool Dishwasher Upper Wheel
10W11180178 Whirlpool Positioner
11W11612314 Whirlpool Adjuster
