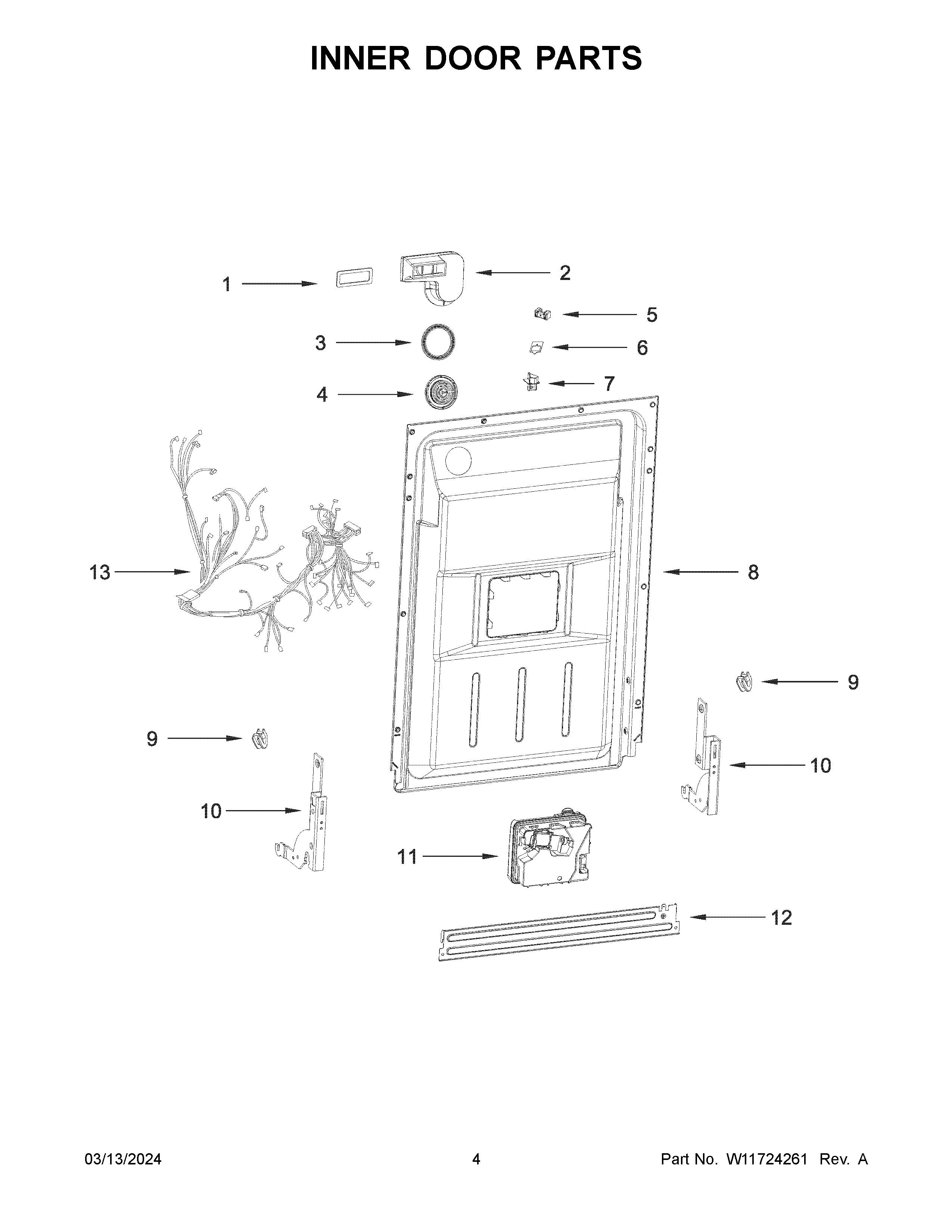

WDPS5118PW0 03 – INNER DOOR PARTS

WDPS5118PW0 03 – INNER DOOR PARTS

Written by

in

WDPS5118PW0 03 – INNER DOOR PARTS

Products

PositionProduct
1W11225863 Whirlpool Gasket
2VENT ASSEMBLY
3W11243344 Whirlpool Gasket
4W11243345 Whirlpool Dishwasher Deflector
5W11230138 Whirlpool Dishwasher Latch Kit
6GASKET
7HOOK, DOOR LATCH
8W11230130 Whirlpool Inner Door Assembly
9W11243348 Whirlpool Dishwasher Clip
10AW11226199 Whirlpool Dishwasher Door Hinge
10W11226198 Whirlpool Dishwasher Door Hinge
11W11689795 Whirlpool Dispenser
12STIFFENER, DOOR
13W11334683 Whirlpool Wire Harness
