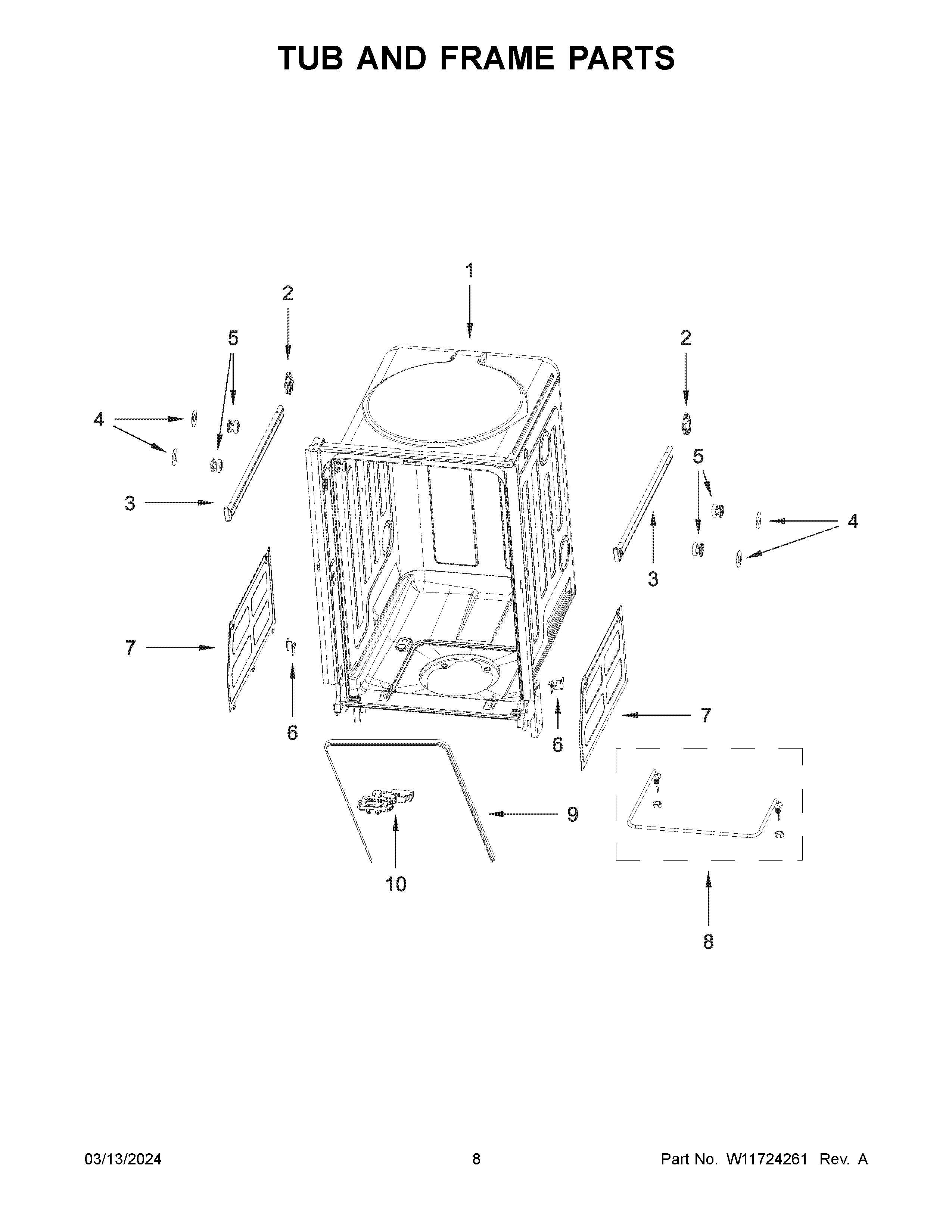

WDPS5118PW0 05 – TUB AND FRAME PARTS

WDPS5118PW0 05 – TUB AND FRAME PARTS

Written by

in

WDPS5118PW0 05 – TUB AND FRAME PARTS

Products

PositionProduct
1TUB ASSEMBLY (NOT SERVICED)
2W11226273 Whirlpool Dishwasher Stop
3W11226276 Whirlpool Track
3AW11226277 Whirlpool Track Assembly
4SUPPORTING HOLDER, BASKET GUIDER
5W11226280 Whirlpool Tub Wheel
6W11662338 Whirlpool Bracket Assembly
7W11226289 Whirlpool Dishwasher Brace
7AW11226291 Whirlpool Dishwasher Brace
8W11230139 Whirlpool Dishwasher Heater
9GASKET, TUB
10DOOR SWITCH ASSEMBLY
