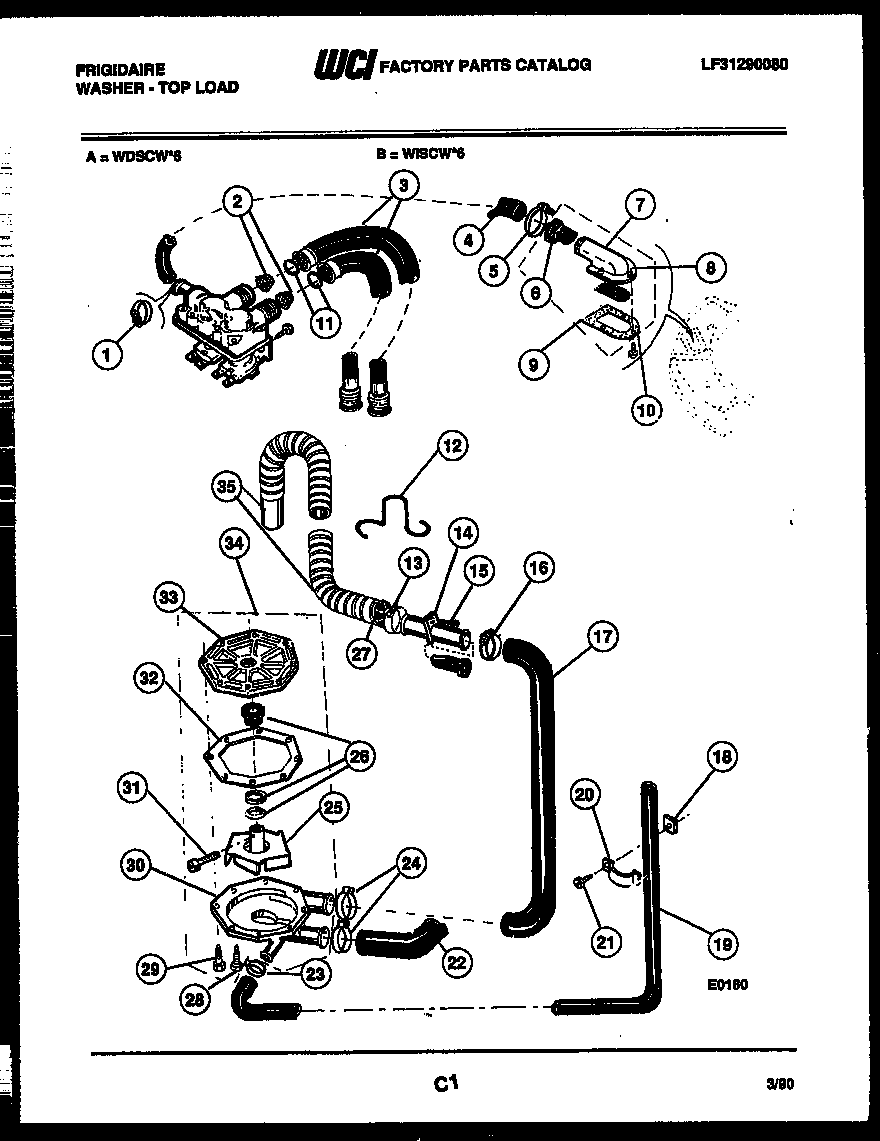

WDSCL6 06 – PUMP, WATER VALVE AND WATER INLET

WDSCL6 06 – PUMP, WATER VALVE AND WATER INLET

Written by

in

WDSCL6 06 – PUMP, WATER VALVE AND WATER INLET

Products

PositionProduct
1WCI 08006572
2WCI 08002439
3WCI 6561384
4WCI 08008471
5WCI 08007731
6WCI 08027515
7WCI 08006569
8WCI 08006682
9WCI 08006683
105304455649 Frigidaire Refrigerator Screw
115303161296 Frigidaire Washer-Inlet Hose (1Piece)
12WCI 08002362
13WCI 5364154013
14WCI 08015078
15WCI 08002359
16WCI 08004057
17WCI 08015531
18WCI 08002355
19WCI 08002353
20WCI 08002356
21SCREW-BACK PANEL/SUPPORT-TOP CENTER
22WCI 08002364
23WCI 08015517
24WCI 08014914
25WCI 08950055
26WCI 08950093
27WCI 08011277
285304401796 Frigidaire Screws
29WCI 08002390
30WCI 08002391
31WCI 08002392
32WCI 08002396
33WCI 08002397
34WCI 08015497
35WCI 3205936
36WCI 08015533
37134190200 Frigidaire Washer Water Valve
