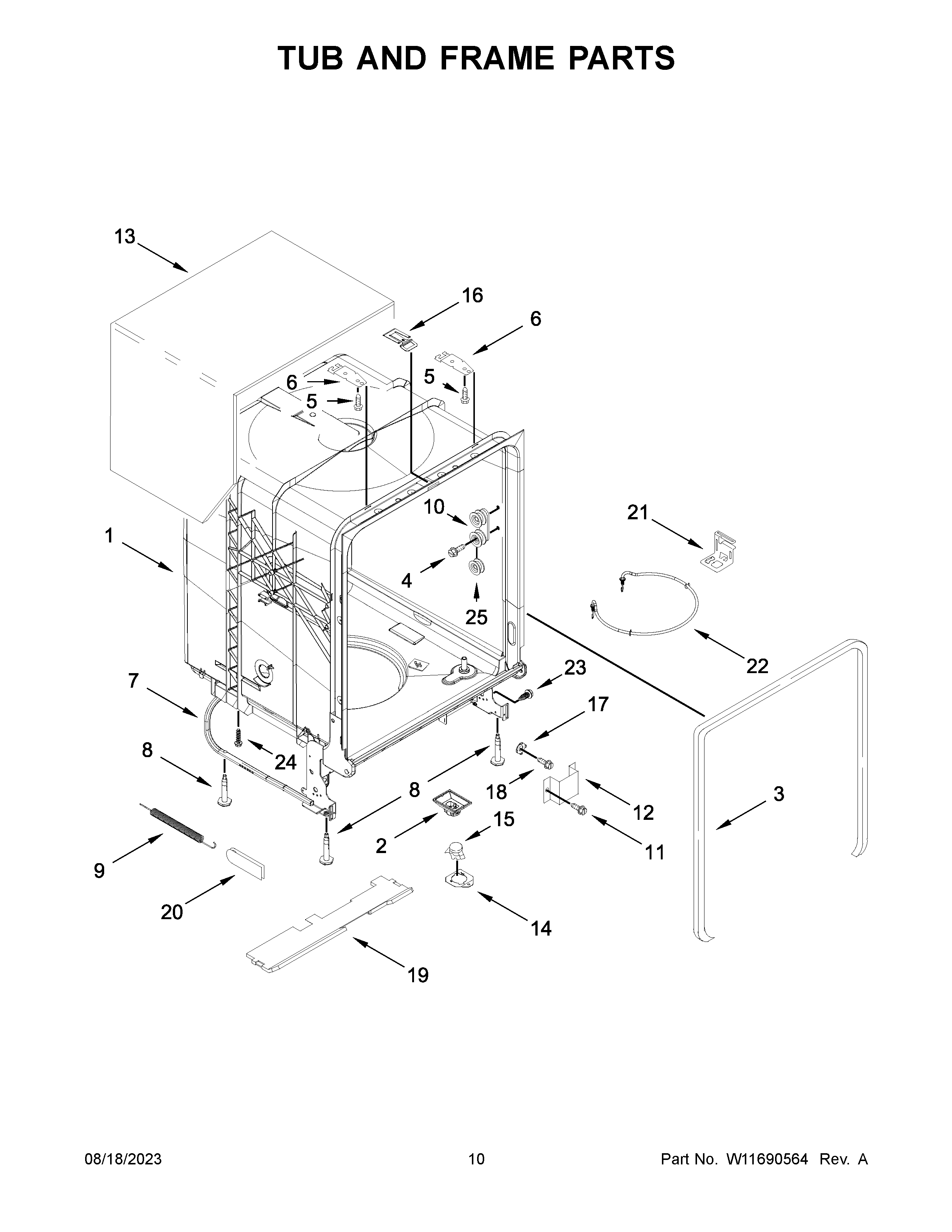

WDT531HAPM0 06 – TUB AND FRAME PARTS

WDT531HAPM0 06 – TUB AND FRAME PARTS

Written by

in

WDT531HAPM0 06 – TUB AND FRAME PARTS

Products

PositionProduct
1W11513977 Whirlpool Dishwasher Tub
2W11684260 Whirlpool Shield
3SEAL, TUB
4W10817436 Whirlpool Screw
5W11551549 Whirlpool Microwave Screw
6WP8269145 Whirlpool Dishwasher Mounting Bracket
7W11680335 Whirlpool Support
88193716 Whirlpool Leveling Leg
9WPW10337934 Whirlpool Spring Assembly
10WP8575897 Whirlpool Dishwasher Tub Wheel
11WP3400892 Whirlpool Dishwasher Screw
12WP8268991 Whirlpool Dishwasher Cover Assembly
13W10896113 Whirlpool Dishwasher Shield
14CLIP, THERMOSTAT
15WP661566 Whirlpool High Limit Thermostat
16WPW10544004 Whirlpool Dishwasher Strike
17WP3378128 Whirlpool Dishwasher Washer
18WP3400014 Whirlpool Dishwasher Screw
19W11747584 Whirlpool Insulation Pad
20WP8268990 Whirlpool Dishwasher Door Spring Bushing
21W11027055 Whirlpool Dishwasher Heater Support
22W10518394 Whirlpool Dishwasher Heating Element
23WPW10277003 Whirlpool Screw
24WPW10109200 Whirlpool Screw
258194001 Whirlpool Dishwasher Door Balance Link Kit
